| Code | S262 |
|---|---|
| Model | PB-422A |
| Capacity | 1250 x 2mm Mild Steel Bending Capacity |
| Weight (kg) | 910 |
| Weight (m3) | 1.338 |
| Weight (Freight) | 910 |
| Dimensions (cm) | 182 x 57 x 129 |

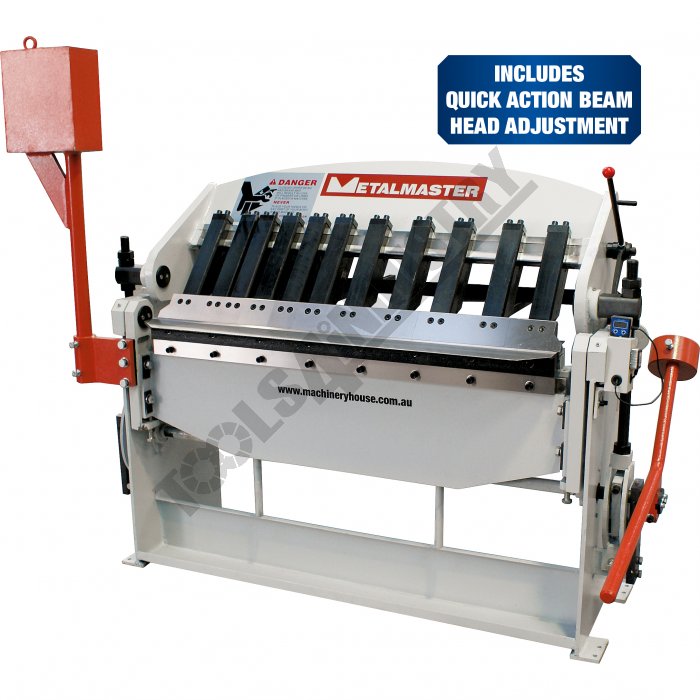

Manual Panbrake PB-422A 1250 x 2mm Mild Steel Bending Capacity
Features
- 1250mm x 2mm capacity
- Extended fingers allows bending of pans or boxes to a depth of 230mm
- Quick head adjustment mechanism to suit your material thickness
- Ground segmented fingers can be repositioned to suit many applications
- Heavy duty steel fabricated frame provides accurate bends

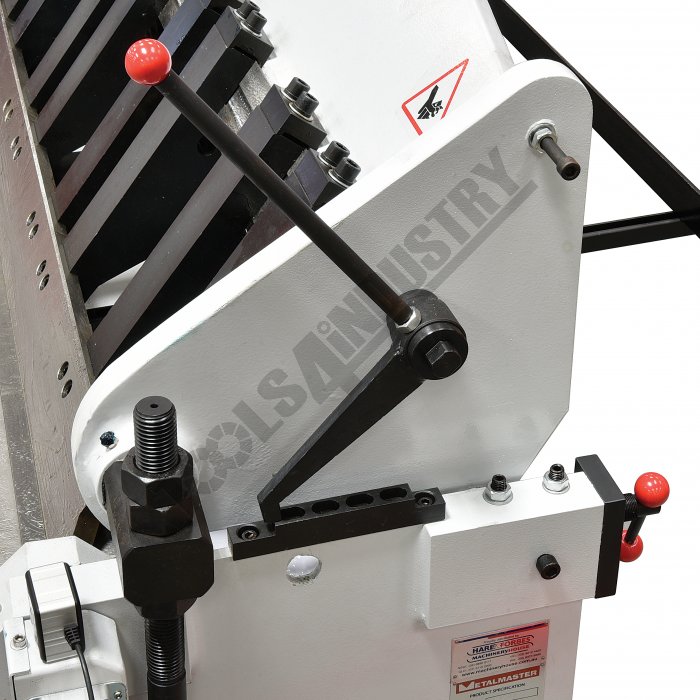

- Safety top beam support stop lever located on right side of machine
- Grease nipples located on all rotating parts
- Quick action beam adjustment for varying material thickness

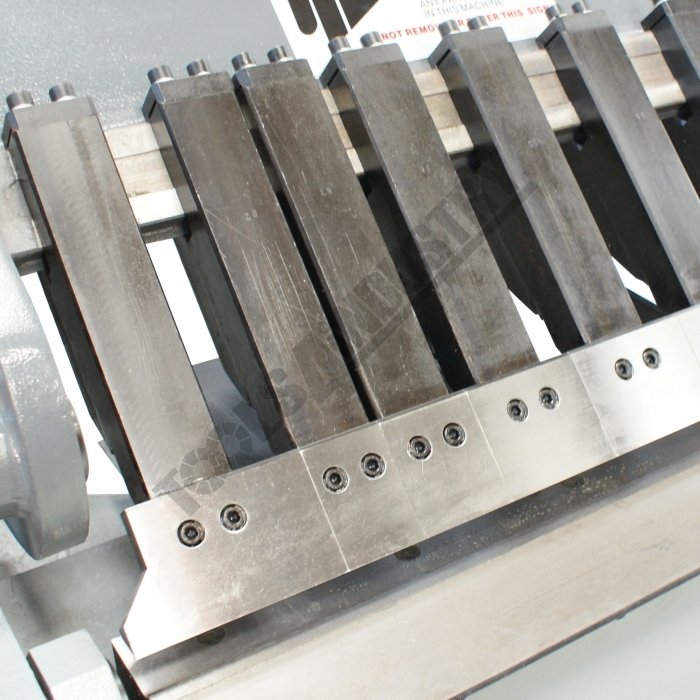

- Removable individual bending fingers for pans or boxes
- Mild steel capacity is rated on hot rolled material with 250MPA
Includes

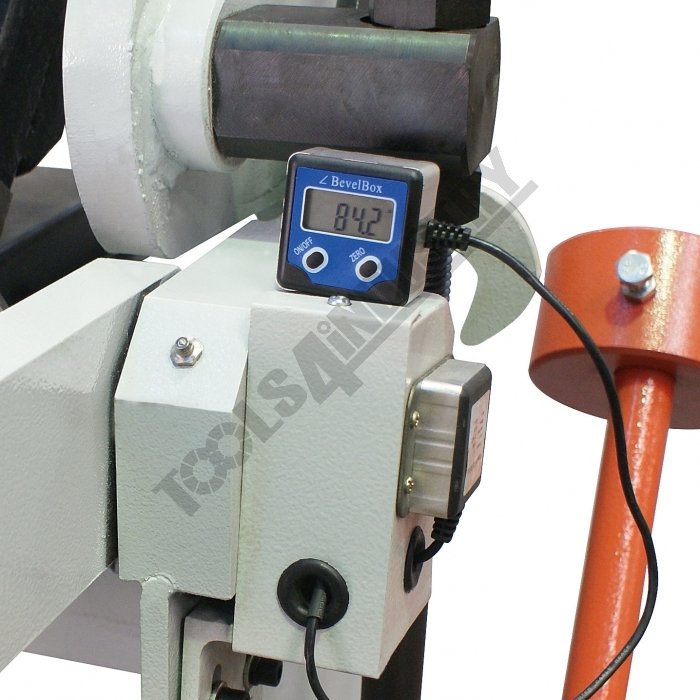

- Includes digital angle readout with CR2032 battery

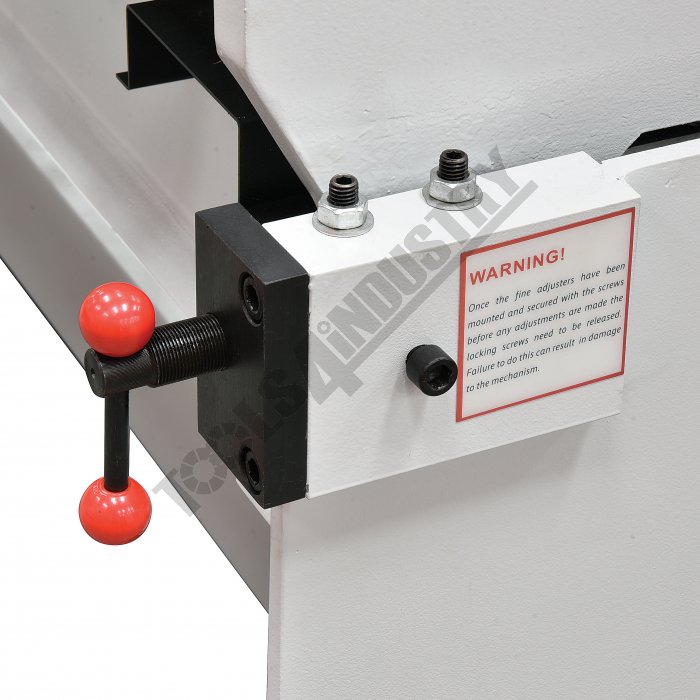

- Quick Action Beam Head Adjustment for Material Thickness

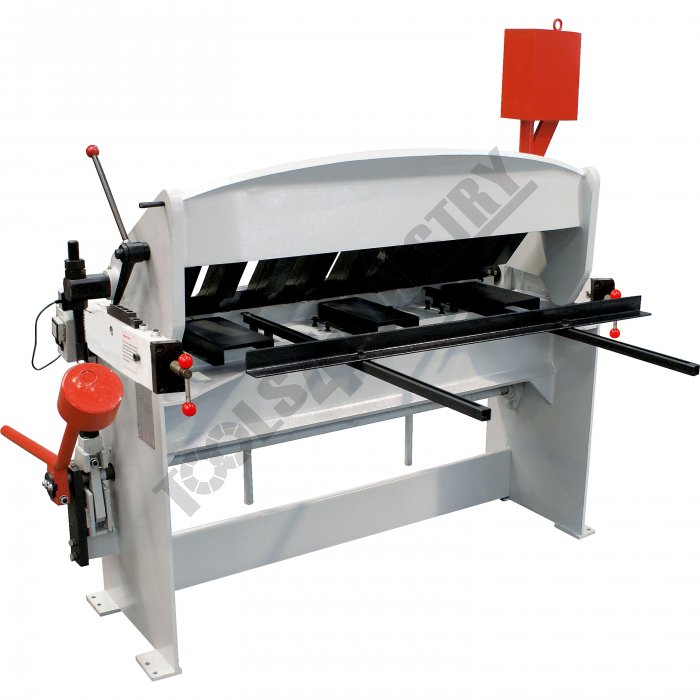

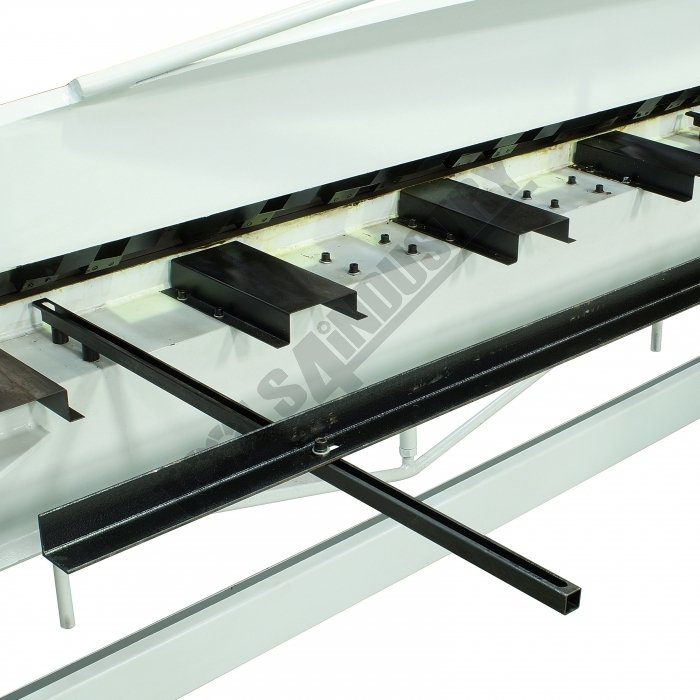

- Rear manual backgauge
Specifications
- Compare 7 Products
- ORDER CODE
- MODEL
- Bending Capacity - Mild Steelmm
- Material Length Capacitymm
- Floor Space (L x W x H)mm
- Nett Weightkg
| ORDER CODE | PB-422A |
|---|---|
| MODEL | 2 |
| Bending Capacity - Mild Steelmm | 1250 |
| Material Length Capacitymm | 1820 x 620 x 1300 |
| Floor Space (L x W x H)mm | 980 |
| Nett Weightkg |
