| Code | S2294 |
|---|---|
| Model | PHT-SMTSD |
| Capacity | 1.2mm Mild Steel Capacity |
| Weight (kg) | 0.86 |
| Weight (m3) | 0.002 |
| Weight (Freight) | 0.86 |

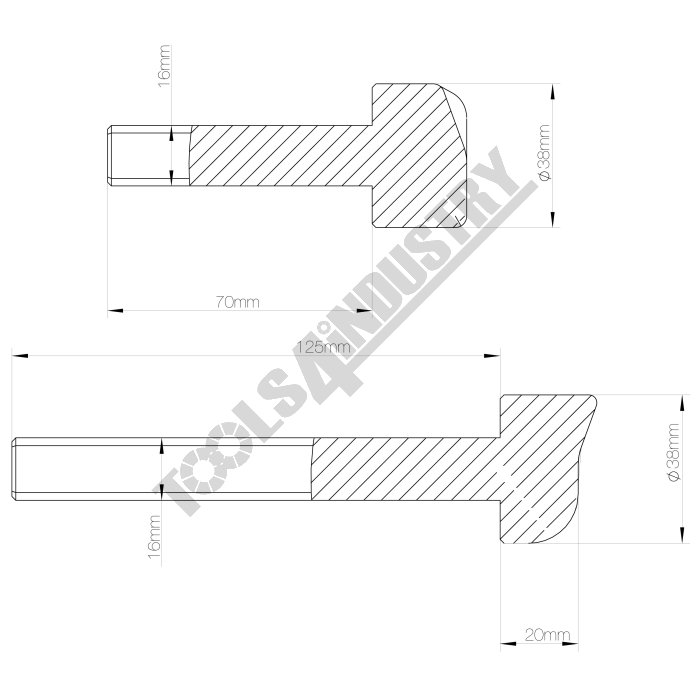

| Dimensions (cm) | 17 x 16 x 7 |
Small Thumbnail Die Set - 16mm Square Shank PHT-SMTSD 1.2mm Mild Steel Capacity
Description

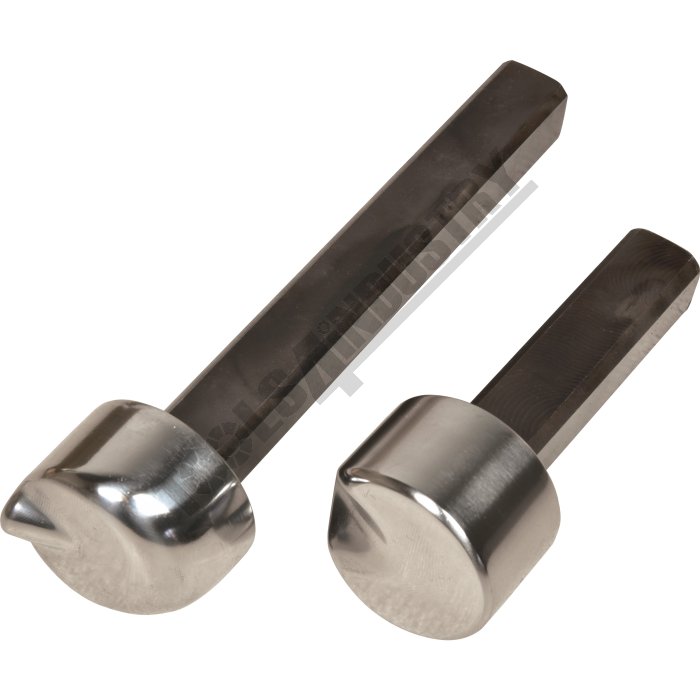

Our small thumbnail die set is designed for shrinking smaller pieces with a tighter radius such as small domes or motorcycle tanks. Made from CR12 hardened steel dies with the capability of shaping up to 1.2mm thick sheet mild steel and up to 1.6mm thick sheet aluminium. They come standard with 16mm shank to suit our Metalmaster PHM-560MK2 Power Hammer.Features
- Capacity - 1.2mm thick sheet mild steel
- 16mm Square shank
- 38mm OD for shrinking tighter radius jobs such as motorcycle tanks.
Specifications
- Compare 8 Products
- ORDER CODE
- MODEL
- Part Number
- Type
- Face Diameterinch / mm
- Sizeinch / mm
- Shank Sizemm
- S2294
- PHT-SMTSD
- ~
- Small Thumbnail Die Set
- ~
- ~
- 16
- B90502
- PHD-UTHS-0750-SQ
- ~
- Square Tool Holder
- ~
- 3/4" (19.05)
- ~
- B8967
- PHD-ST-BTM-1200
- 1005985
- Doming Bottom Die
- 3" (76.2mm)
- 12" (304.8mm) radius
- ~
- B8969
- PHD-ST-BTM-2400
- 1005986
- Doming Bottom Die
- 3" (76.2mm)
- 24" (609.6mm) radius
- ~
- B8971
- PHD-ST-BTM-3600
- 1005987
- Doming Bottom Die
- 3" (76.2mm)
- 36" (914.4mm) radius
- ~
- B8957
- ~
- 1005979
- Master Flat Top Die
- ~
- 3" (76.2)
- ~
- S2290
- PHT-SMLD
- ~
- Small Louvre Die Set
- ~
- ~
- 16
- S2292
- PHT-ETT
- ~
- Small Louvre Die Set
- ~
- ~
- 16
| ORDER CODE | PHT-SMTSD |
|---|---|
| MODEL | ~ |
| Part Number | Small Thumbnail Die Set |
| Type | ~ |
| Face Diameterinch / mm | ~ |
| Sizeinch / mm | 16 |
| Shank Sizemm |
