| Code | B8967 |
|---|---|
| Model | 1005985 |
| Capacity | 12" (304.8mm) radius, 3" (76.2mm) face diameter |
| Weight (kg) | 1.3 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 1.3 |
| Dimensions (cm) | 7.5 x 7.5 x 7 |

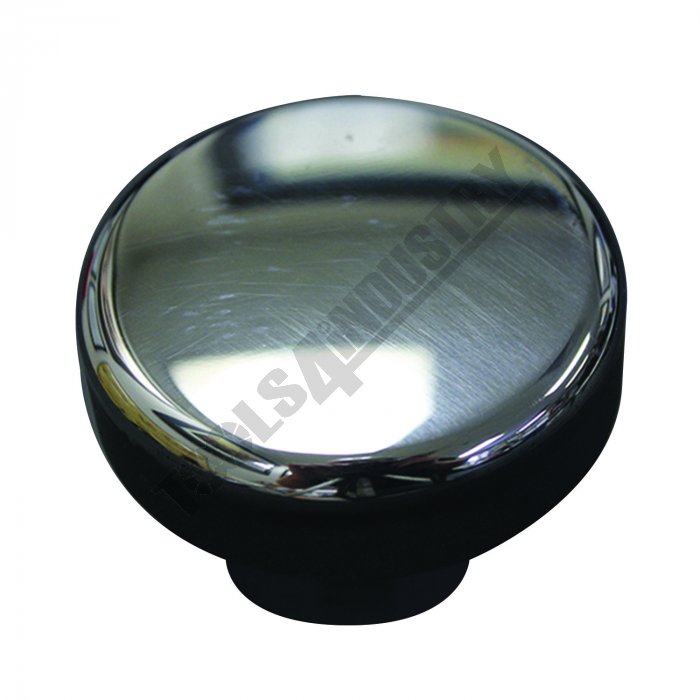

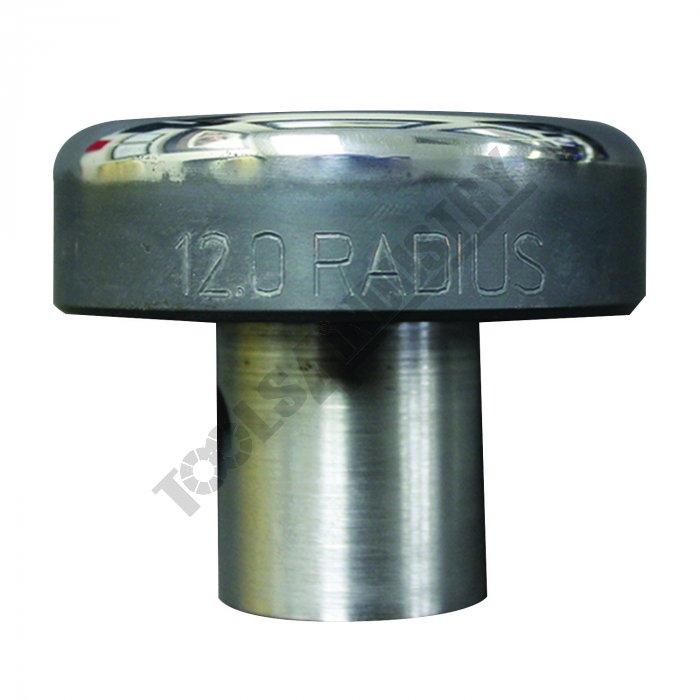

Doming Bottom Die 1005985 12" (304.8mm) radius, 3" (76.2mm) face diameter
Description
3" (76.2mm) doming bottom die - 12" (304.8mm) radius (single die) to be used with master flat top dies. Made from S7 Tool Steel and hardened for long life.To be used on the PH-19, PH-28A, MH-19 and PH-28HD only.
Features
- 3" (76.2mm) face diameter
- 12" (304.8mm) radius
- Machined from high quality S7 Tool Steel - Hardened
- Fits Baileigh Power Hammers
Includes
- 3" (76.2mm) doming bottom die - 12" (304.8mm) radius (single die)
Specifications
- Compare 8 Products
- ORDER CODE
- MODEL
- Part Number
- Type
- Face Diameterinch / mm
- Sizeinch / mm
- Shank Sizemm
- B8967
- PHD-ST-BTM-1200
- 1005985
- Doming Bottom Die
- 3" (76.2mm)
- 12" (304.8mm) radius
- ~
- B8969
- PHD-ST-BTM-2400
- 1005986
- Doming Bottom Die
- 3" (76.2mm)
- 24" (609.6mm) radius
- ~
- B8971
- PHD-ST-BTM-3600
- 1005987
- Doming Bottom Die
- 3" (76.2mm)
- 36" (914.4mm) radius
- ~
- B8957
- ~
- 1005979
- Master Flat Top Die
- ~
- 3" (76.2)
- ~
- S2290
- PHT-SMLD
- ~
- Small Louvre Die Set
- ~
- ~
- 16
- S2292
- PHT-ETT
- ~
- Small Louvre Die Set
- ~
- ~
- 16
- S2294
- PHT-SMTSD
- ~
- Small Thumbnail Die Set
- ~
- ~
- 16
- B90502
- PHD-UTHS-0750-SQ
- ~
- Square Tool Holder
- ~
- 3/4" (19.05)
- ~
| ORDER CODE | PHD-ST-BTM-1200 |
|---|---|
| MODEL | 1005985 |
| Part Number | Doming Bottom Die |
| Type | 3" (76.2mm) |
| Face Diameterinch / mm | 12" (304.8mm) radius |
| Sizeinch / mm | ~ |
| Shank Sizemm |
