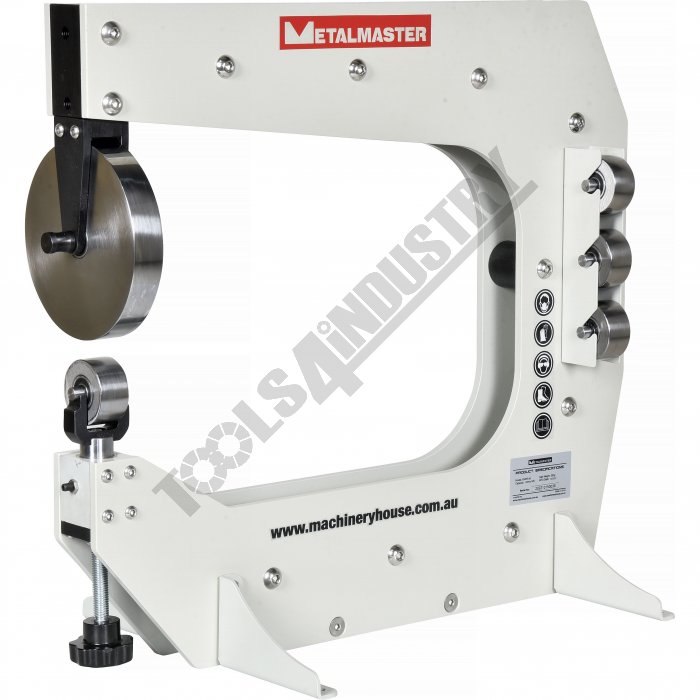

English Wheel EWBT-40 1.0mm Mild Steel Capacity

Description

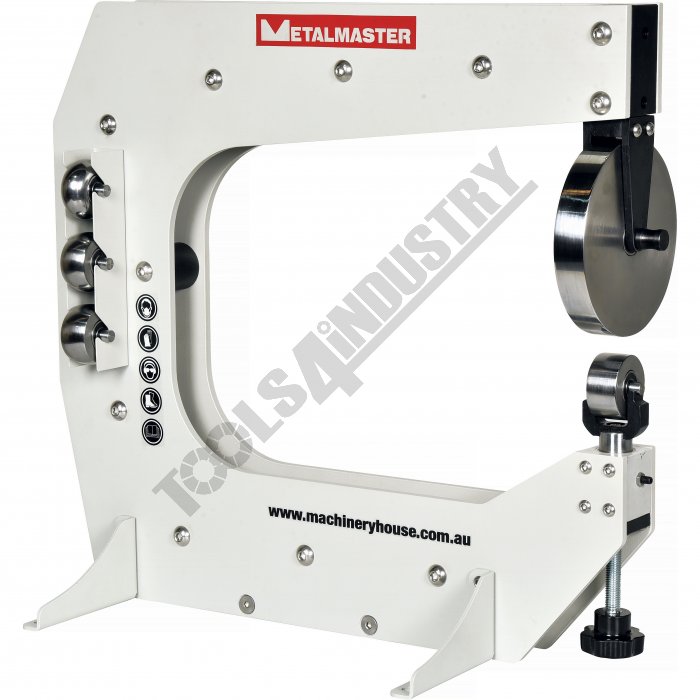

The new Metalmaster EWBT-40 is the perfect addition to any metal shaper’s workshop, ideal for small or narrow jobs where a larger English wheel can’t reach right to the edge. Built with 8 mm thick steel side frames, it’s a solid and reliable performer.

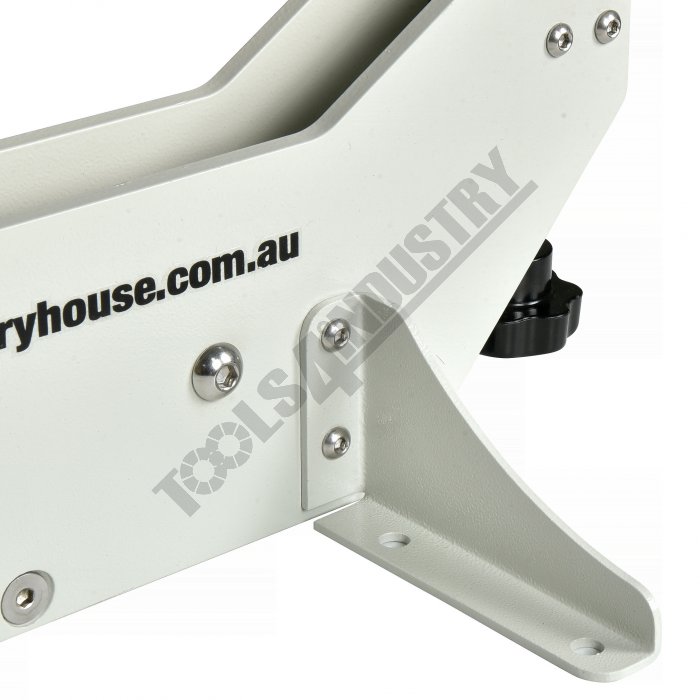

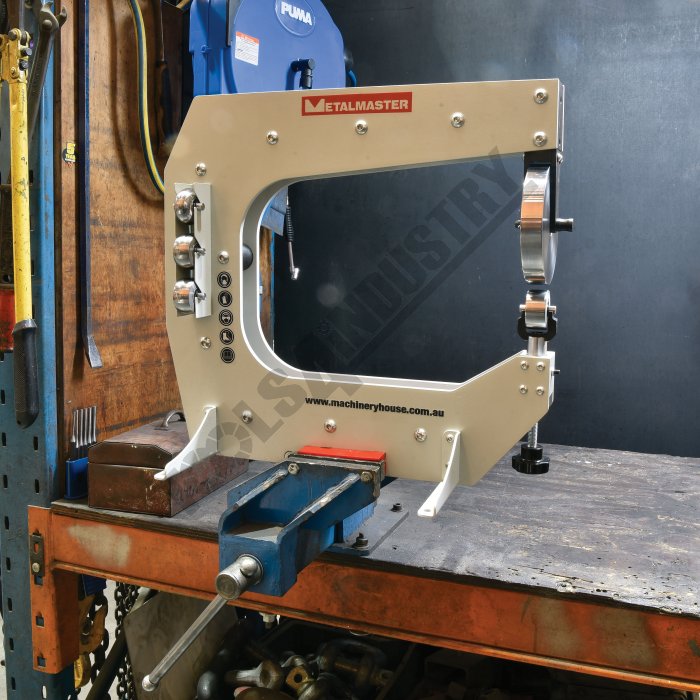

The frame can be bench-mounted using the base feet or clamped in a vice, giving you the flexibility to set it up quickly and store it away when not in use. With a 400 mm throat, it provides ample working room while remaining compact and easy to handle. Capable of shaping mild steel up to 1.0 mm (20 gauge), it’s a versatile machine that punches above its weight.

The upper wheel and seven lower anvils are hardened to 45–50 HRC, ensuring durability and a long service life. A standout feature of this model is the pivoting wheels, which rotate 90° to sit parallel with the frame—making it much easier to handle longer projects.

Features

• 400mm throat depth

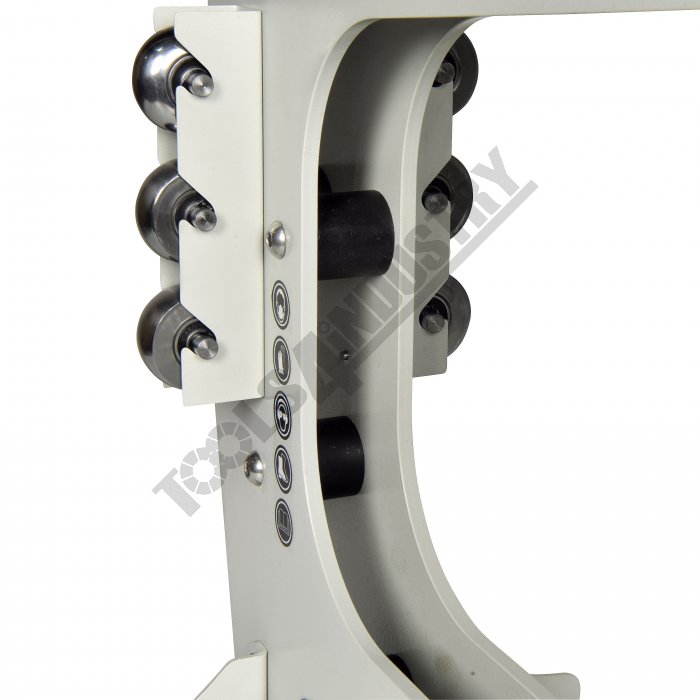

• Heavy duty 8mm thick plate steel side plates
• Heavy steel frame spacer at the base for vice mounting
• 1.0mm mild steel capacity

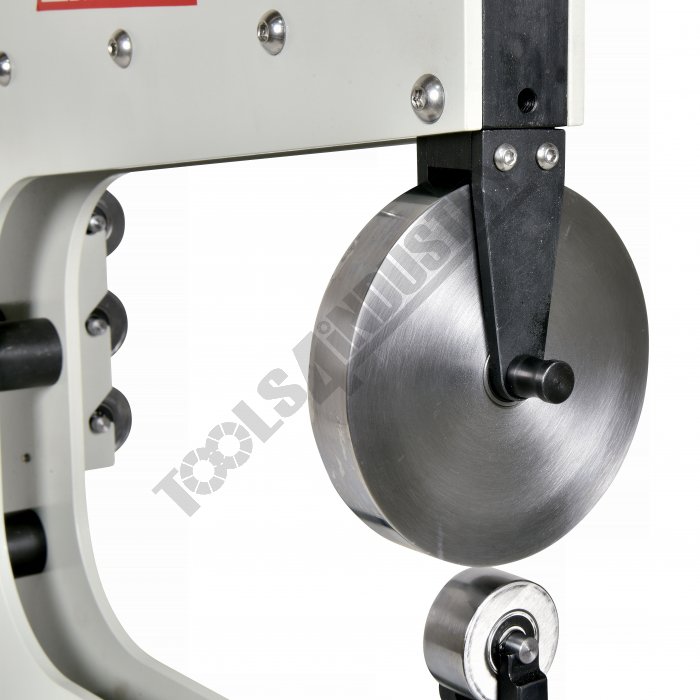

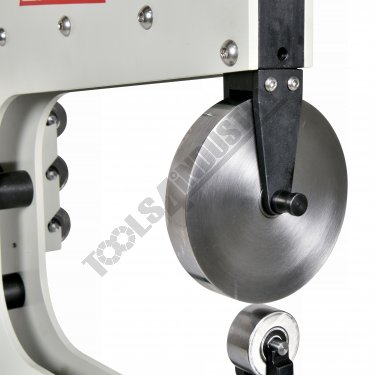

• Upper wheel Ø146 x 25.4mm wide

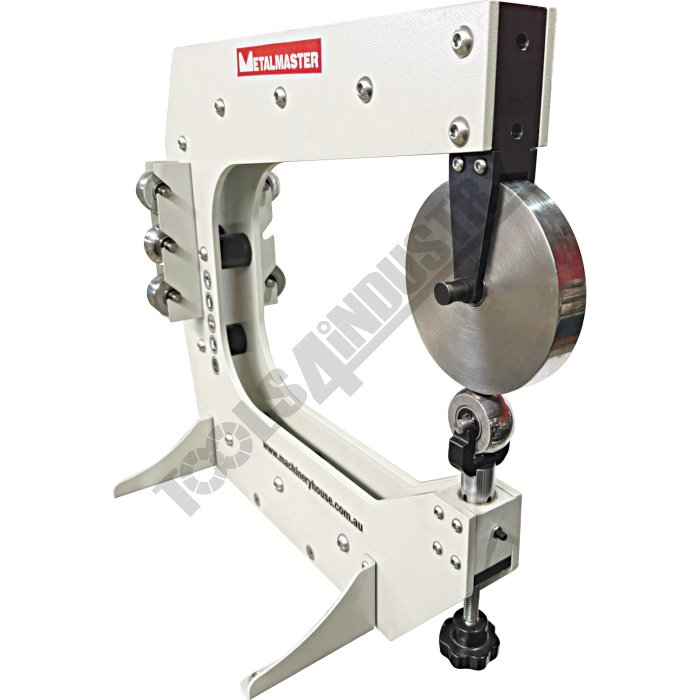

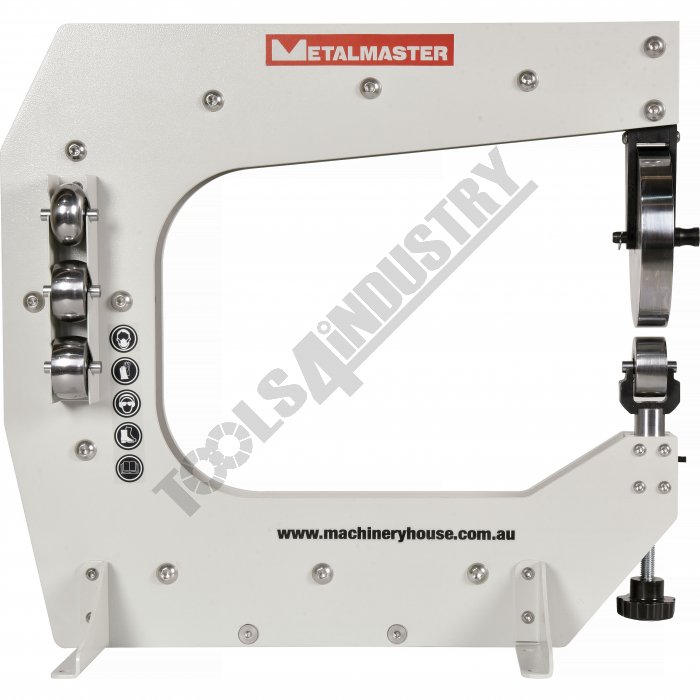

• Wheels pivot 90° to align parallel with the frame, providing easier handling for extended projects.
• Wheel & anvils hardened to 45-50HRC

Includes

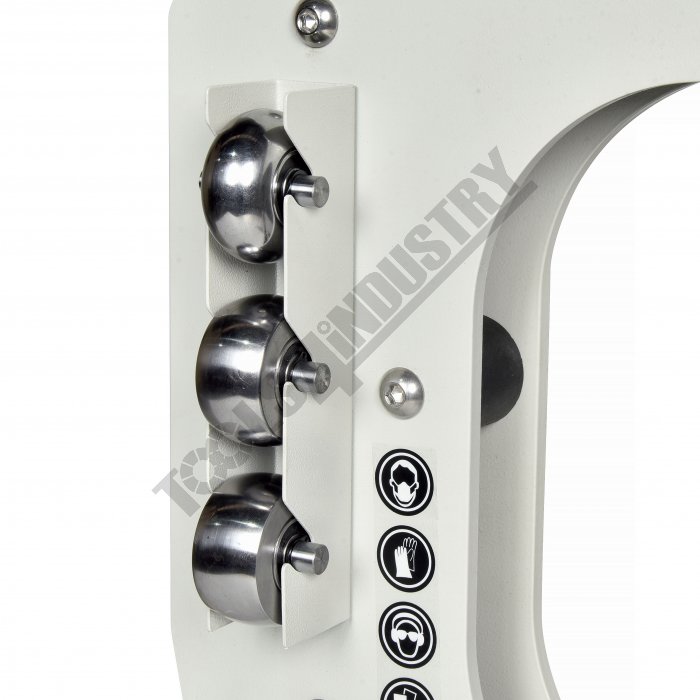

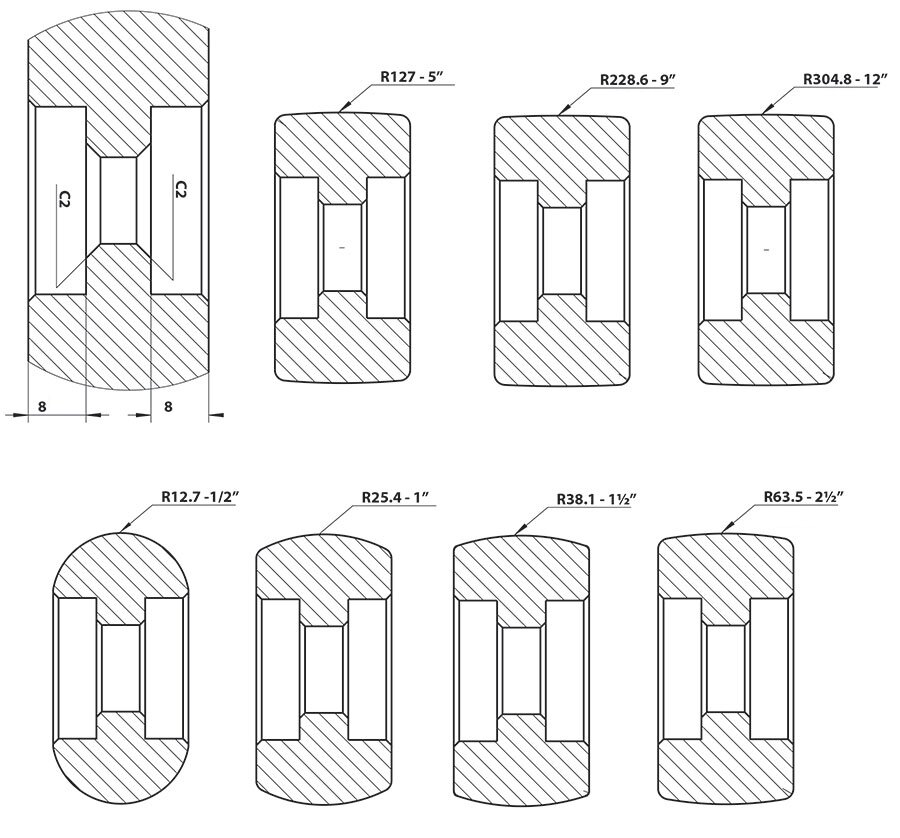

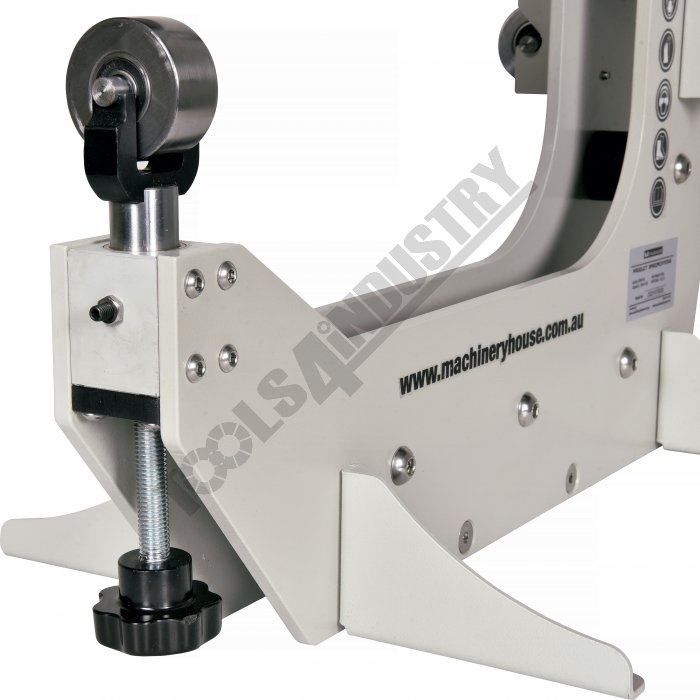

• 7 lower anvils (all 24.5mm wide) in the following radius:
• 12.7mm (1/2")
• 25.4mm (1")
• 38.1mm (1-1/2")
• 63.5mm (2-1/2")
• 127.0mm (5")
• 228.6mm (9")
• 304.8mm (12")
