| Code | Q515 |
|---|---|
| Model | 34-515 |
| Capacity | 0 - 3mm |
| Weight (kg) | 0.36 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 0.36 |
| Dimensions (cm) | 13 x 8 x 5.5 |

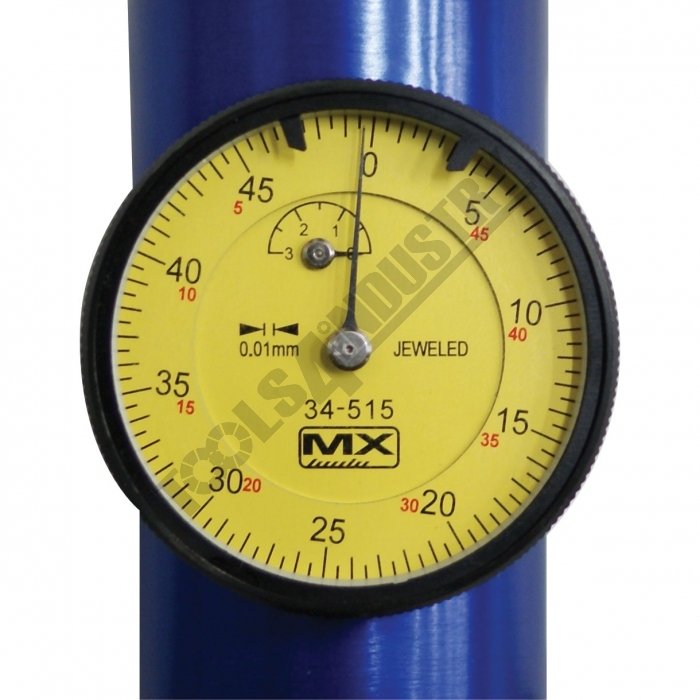

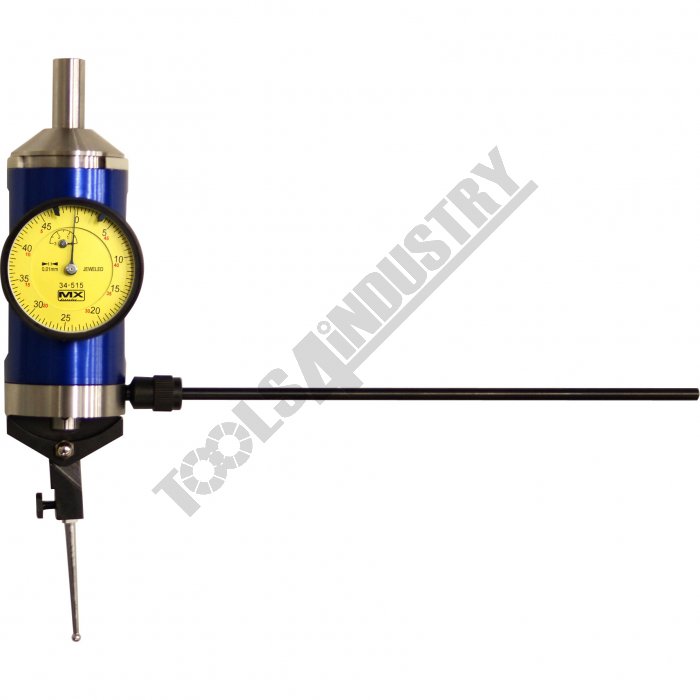

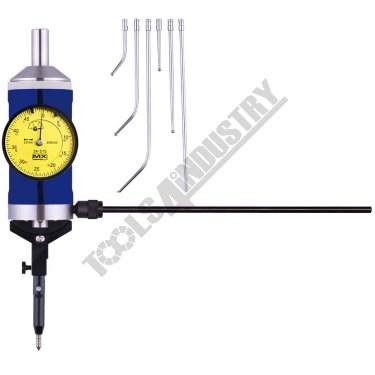

Centering Dial Indicator 34-515 0 - 3mm
Description
Used to locate a work piece center quickly and accurately whilst the indicator faces the operator at all times by way of a restraining arm.Features
- Quick and accurate centering internal & external
- Operates at any angle from horizontal to vertical
- The dial indicator remains stationary while rotating the spindle manually.

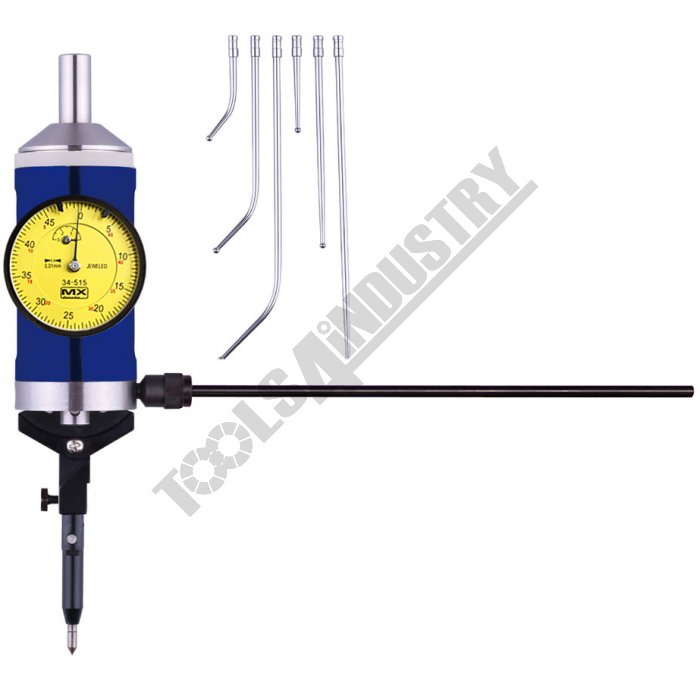

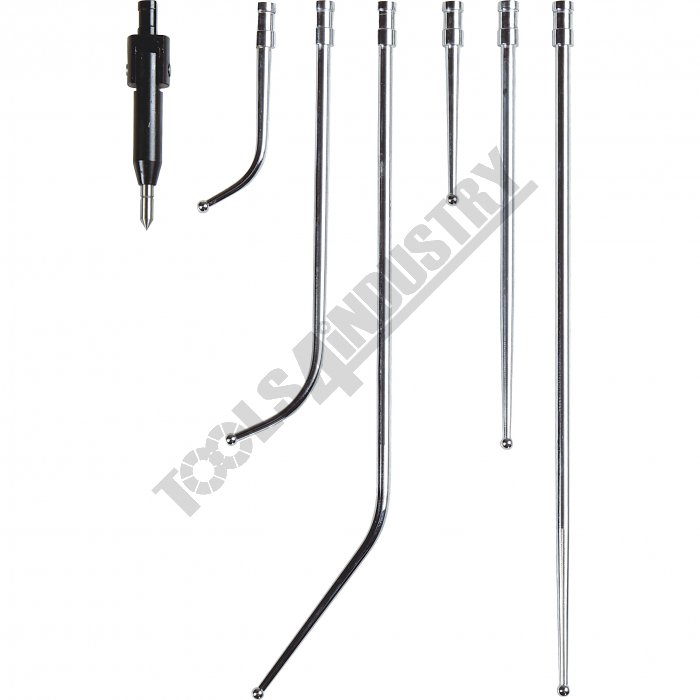

- The set includes 7 stylus probes and a restraining arm.

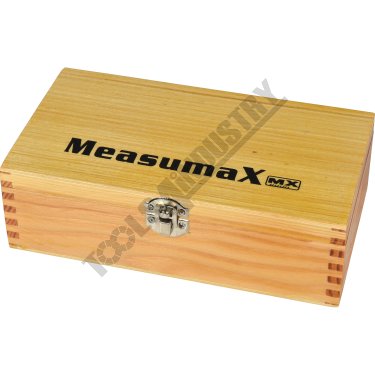

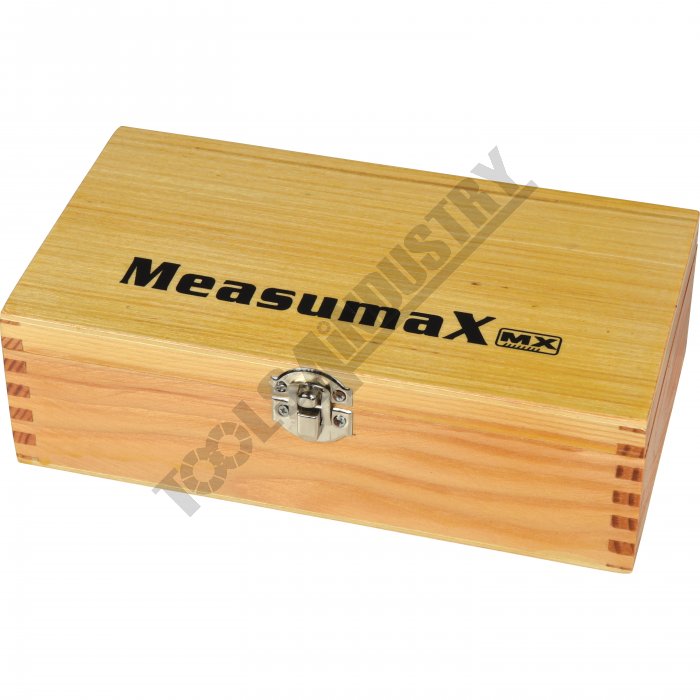

- Packed in wooden box
Specifications
- Compare 1 Products
- ORDER CODE
- Rangemm
- Graduationsmm
- Straight Stylusmm
- Curved Stylusmm
- Swivel Point Stylusmm
- Stylus Diametermm
- Mountmm
- Q515
- 0 - 3mm
- 0.01mm
- 45, 100, 154
- 45, 100, 154
- 52.5
- 3
- 10
| ORDER CODE | 0 - 3mm |
|---|---|
| Rangemm | 0.01mm |
| Graduationsmm | 45, 100, 154 |
| Straight Stylusmm | 45, 100, 154 |
| Curved Stylusmm | 52.5 |
| Swivel Point Stylusmm | 3 |
| Stylus Diametermm | 10 |
| Mountmm |
