Code	Q316
Model	12-316
Weight (kg)	1.2
Weight (m³)	0.003
Weight (Freight)	1.2
Dimensions (cm)	33 x 19 x 4.5

MEASUMAX

1 Year Warranty

Product Brochure How to read a Micrometer [77 KB] Instruction Manual [665 KB]

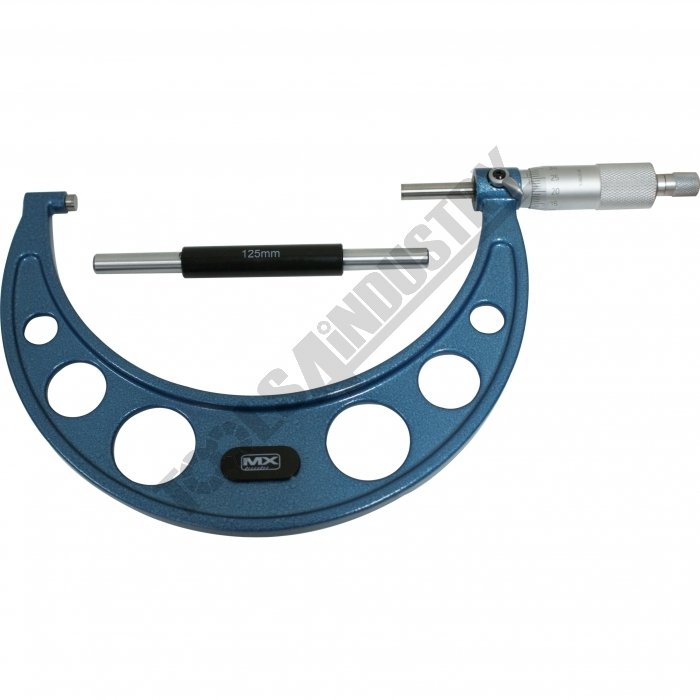

Metric Outside Micrometer - Large Cast Frame 12-316

Description

Measumax metric micrometers represent exceptional value. Special care has been taken in design and workmanship to ensure high precision and long life.
Measumax metric micrometers meet industry standards for specification and accuracy

Features

Carbide measuring faces - Painted cast frame
Micro-fine clear graduations on satin chrome finish
Measuring face 6.5mm, Flatness 0.0008mm
Ratchet stop for exact repetitive readings
Includes deluxe foam lined plastic case and wrench
Graduation 0.01mm
Supplied with setting standards

Specifications

Compare 8 Products
ORDER CODE
Rangemm
Graduationmm
Accuracymm
Setting BarNo.

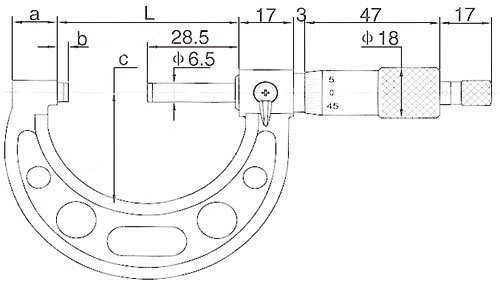

amm
bmm
cmm
Lmm
m061

Q316
125 - 150
0.01
0.006
1
16.5
3
85
158
~

Q317
150 - 175
0.01
0.007
1
19.4
5.5
104
183
~

Q320
175 - 200
0.01
0.007
1
19.4
5.5
117
209
~

Q102
0 - 25
0.01
0.004
~
9
3
28
32
~

Q105
25 - 50
0.01
0.004
1
14
3
38
57
~

Q107
50 - 75
0.01
±0.002
1
14.5
3
49
82
~

Q110
75 - 100
0.01
0.005
1
15
3
60
107
~

Q315
100 - 125
0.01
0.006
1
16.5
3
73
133
~

ORDER CODE	125 - 150
Rangemm	0.01
Graduationmm	0.006
Accuracymm	1
Setting BarNo.	16.5
amm	3
bmm	85
cmm	158
Lmm	~
m061
