Code	Q105
Model	10-105
Weight (kg)	0.36
Weight (m³)	0.000
Weight (Freight)	0.36
Dimensions (cm)	17 x 8 x 3

MEASUMAX

2 Years Warranty

Product Brochure How to read a Micrometer [77 KB] Instruction Manual [734 KB]

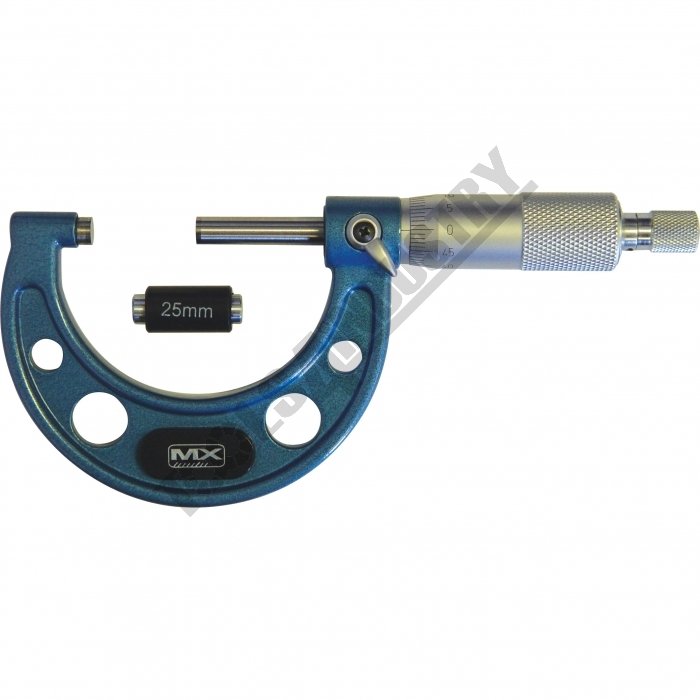

Metric Outside Micrometer 10-105

Description

Measumax metric micrometers represent exceptional value. Special care has been taken in design and workmanship to ensure high precision and long life.
Measumax metric micrometers meet industry standards for specification and accuracy

Features

Carbide measuring faces - Painted cast frame
Micro-fine clear graduations on satin chrome finish
Measuring face 6.5mm, Flatness 0.0008mm
Ratchet stop for exact repetitive readings
Includes deluxe foam lined plastic case and wrench
Graduation 0.01mm
Supplied with setting standards

Specifications

Compare 8 Products
ORDER CODE
Rangemm
Graduationmm
Accuracymm

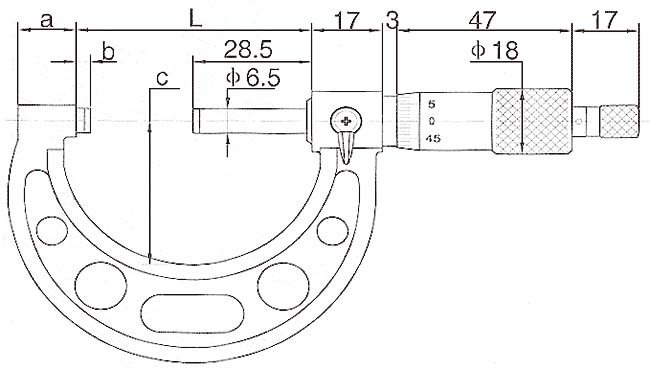

Setting BarNo.
amm
bmm
cmm
Lmm
m061

Q105
25 - 50
0.01
0.004
1
14
3
38
57
~

Q107
50 - 75
0.01
±0.002
1
14.5
3
49
82
~

Q110
75 - 100
0.01
0.005
1
15
3
60
107
~

Q315
100 - 125
0.01
0.006
1
16.5
3
73
133
~

Q316
125 - 150
0.01
0.006
1
16.5
3
85
158
~

Q317
150 - 175
0.01
0.007
1
19.4
5.5
104
183
~

Q320
175 - 200
0.01
0.007
1
19.4
5.5
117
209
~

Q102
0 - 25
0.01
0.004
~
9
3
28
32
~

ORDER CODE	25 - 50
Rangemm	0.01
Graduationmm	0.004
Accuracymm	1
Setting BarNo.	14
amm	3
bmm	38
cmm	57
Lmm	~
m061
