| Code | Q234 |
|---|---|
| Model | 33-234 |
| Capacity | 1-26 module |
| Weight (kg) | 0.48 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 0.48 |
| Dimensions (cm) | 21 x 15 x 2 |

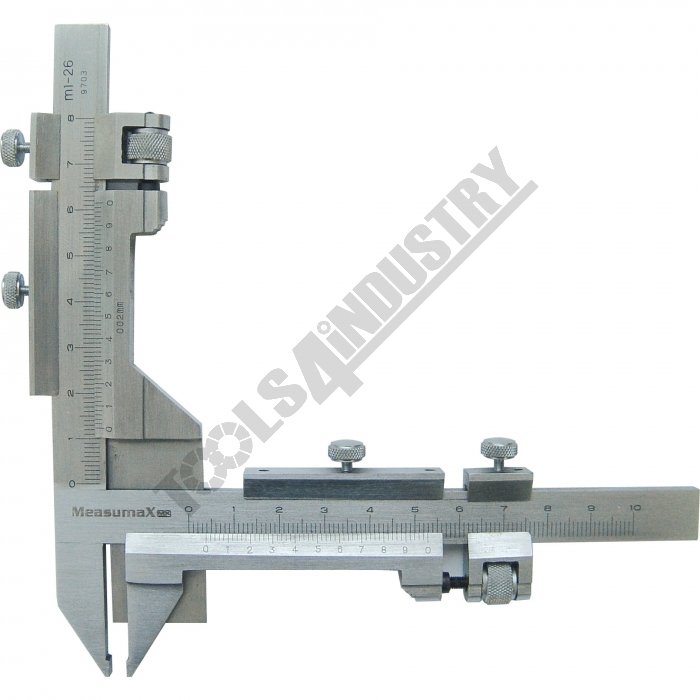

Gear Tooth Vernier Caliper 33-234 1-26 module
Features

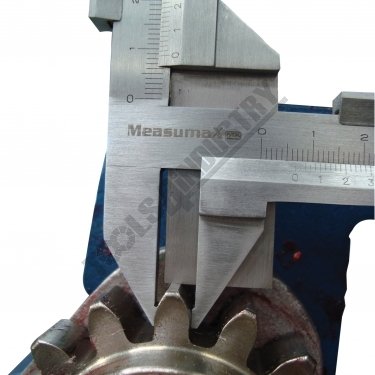

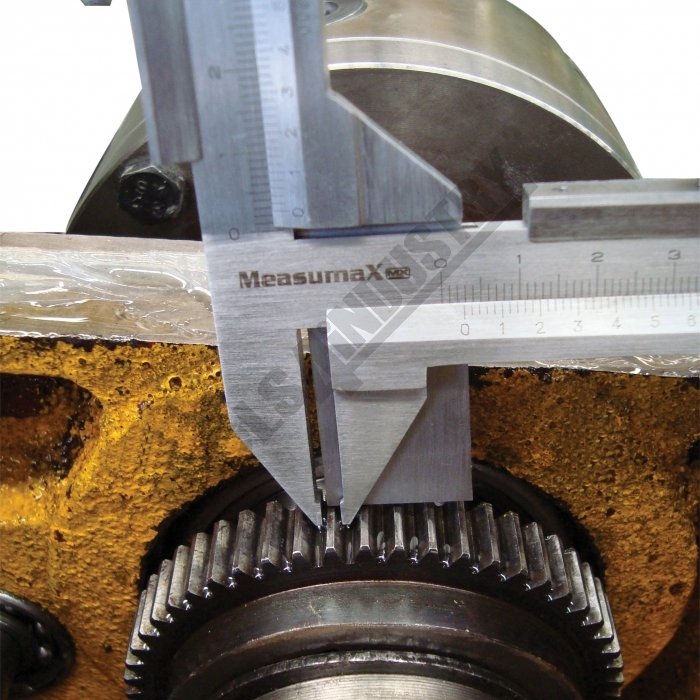

- One of the benefits using a caliper is that the gear does not have to be removed from the machine
- The caliper consists of two adjustable verniers, that reference two dimensions on the gear and provide a measurement
- Vertical scale: Measures the depth of the teeth from the top of the pitch line
- Horizontal Scale: This is used to measure the Chordal Thickness of the gear tooth
Specifications
- Compare 1 Products
- ORDER CODE
- Range
- Graduationsmm
- Accuracymm
- Q234
- 1 - 26 Module
- 0.02
- ±0.02
| ORDER CODE | 1 - 26 Module |
|---|---|
| Range | 0.02 |
| Graduationsmm | ±0.02 |
| Accuracymm |
