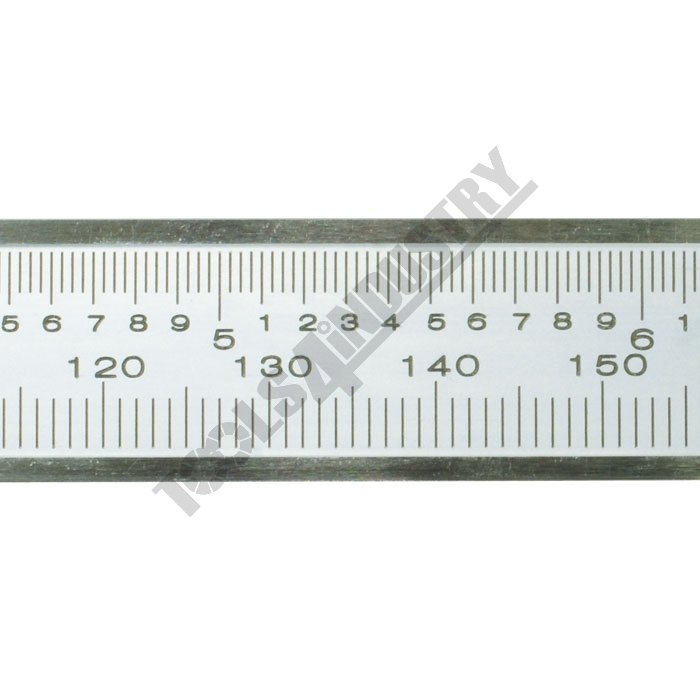

Metric and Imperial Graduations

Metric and Imperial Graduations

Code	Q1946
Model	32-1946
Capacity	180mm / 7"
Weight (kg)	0.34
Weight (m³)	0.001
Weight (Freight)	0.34
Dimensions (cm)	25 x 9 x 2.5

MEASUMAX

1 Year Warranty

Product Brochure How to read a Verner Caliper [107 KB] Instruction Sheet [163 KB]

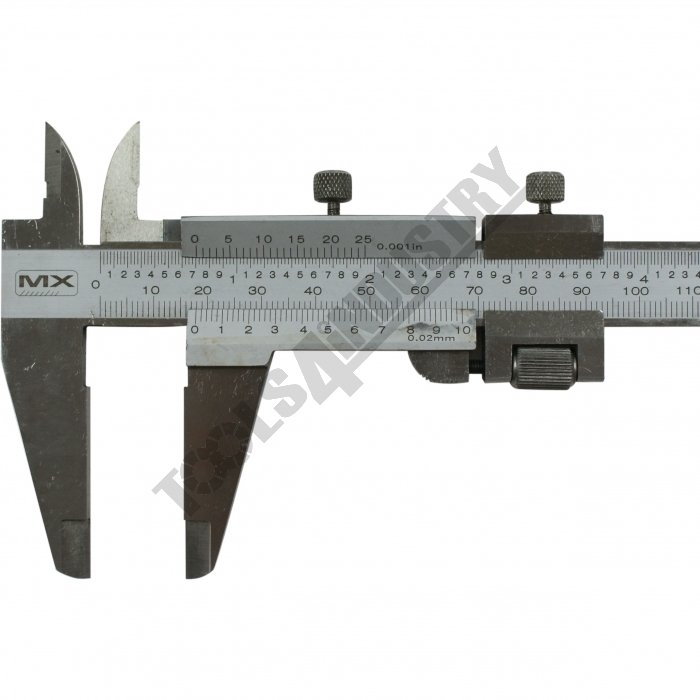

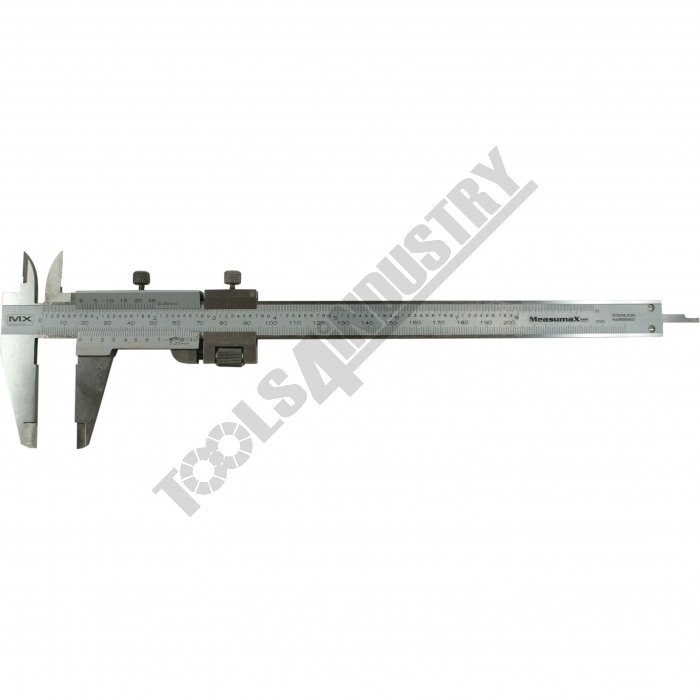

Vernier Calipers 32-1946 180mm / 7"

Features

Mono-block vernier
With fine adjustment
Made of stainless steel
4-Way measuring
Accuracy ±0.03mm

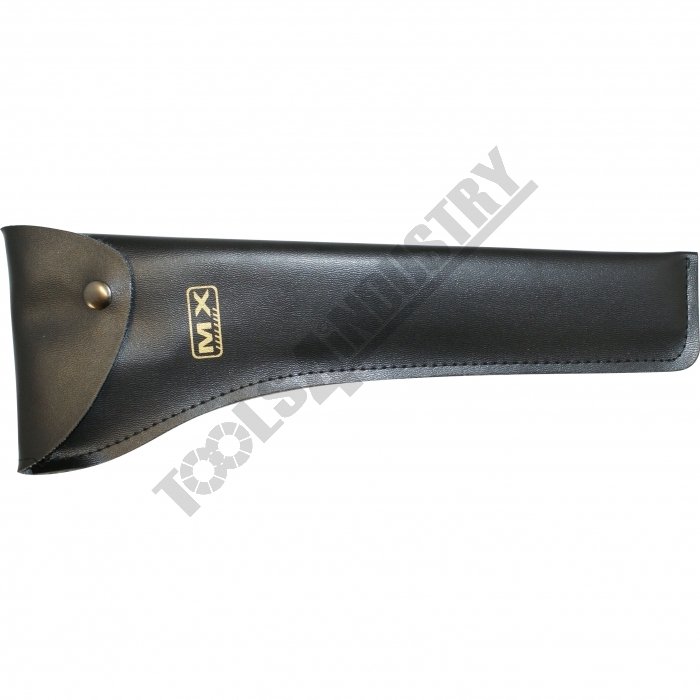

Supplied with vinyl protective sleeve

Specifications

Compare 5 Products

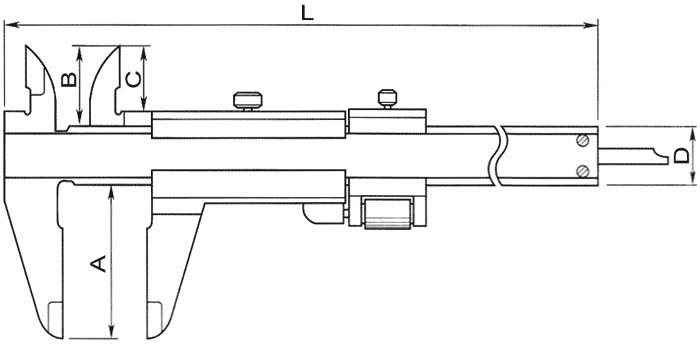

ORDER CODE
Range
Graduations
Accuracymm
Amm
Bmm
Cmm
Dmm
Lmm
4 WayYes / No

Q1946
180mm / 7"
0.02mm / 0.001"
±0.03
50
25
20
16
285
Yes

M725
200mm / 8"
0.02mm / 0.001"
±0.03
50
24
18
16
305
Yes

Q1947
280mm / 11"
0.02mm / 0.001"
±0.04
62
27
22
20
400
Yes

M726
300mm / 12"
0.02mm / 0.001"
±0.04
60
29
22
19
416
Yes

Q1945
130mm / 5"
0.02mm / 0.001"
±0.03
40
21.5
17
16
228
Yes

ORDER CODE	180mm / 7"
Range	0.02mm / 0.001"
Graduations	±0.03
Accuracymm	50
Amm	25
Bmm	20
Cmm	16
Dmm	285
Lmm	Yes
4 WayYes / No
