Arbor Press AP-3 3 Tonne

Description

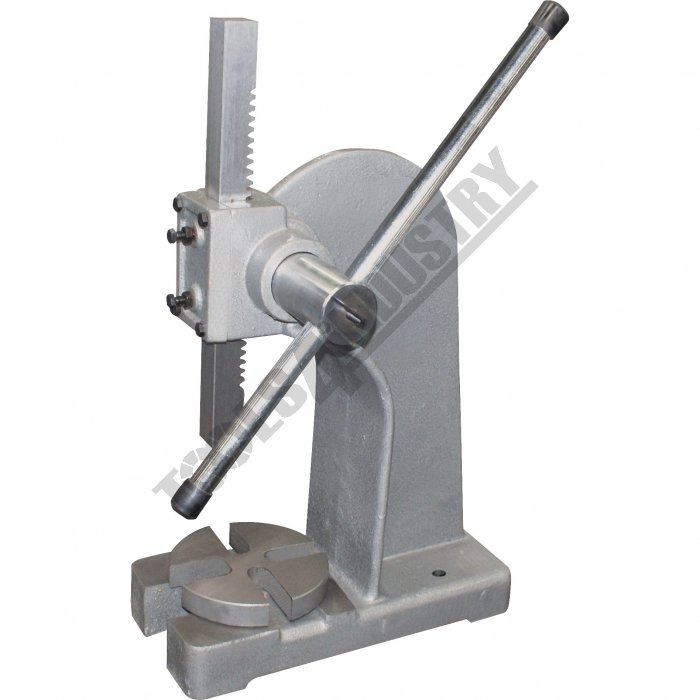

The HAFCO AP-3 3 Tonne Arbor Press is a compact, heavy-duty bench press designed for accurate pressing, assembly and repair work. Delivering 3 Tonne of pressing capacity, it features a robust cast iron frame for exceptional strength and rigidity, while the precision-machined 38 x 38mm square ram ensures accurate alignment and consistent results.

A smooth rack and pinion drive system provides controlled, effortless operation, giving you excellent feel and precision for a wide range of pressing applications. The 4-position rotating anvil, complete with multiple cut-out sizes, increases versatility and supports a variety of component sizes and jobs.

Ideal for pressing bearings, bushes, sleeves, pins, gears and other small components, the AP-3 is also well suited to keyway broaching, riveting, press fitting, component assembly, repair and general engineering maintenance. Compact and bench mountable using the pre-drilled mounting holes, it is the ideal addition to engineering workshops, maintenance departments, fabrication shops and serious DIY workshops.

Features

• Heavy-duty cast iron frame for maximum strength and long service life
• 3 Tonne pressing capacity
• 38 x 38mm square steel ram for accurate pressing
• Rack and pinion drive system for smooth, controlled operation
• 4-position rotating anvil with 30, 30, 30 & 44mm cut-outs and slots for versatile workholding
• 307mm ram travel
• 163mm throat depth with 330mm maximum throat height

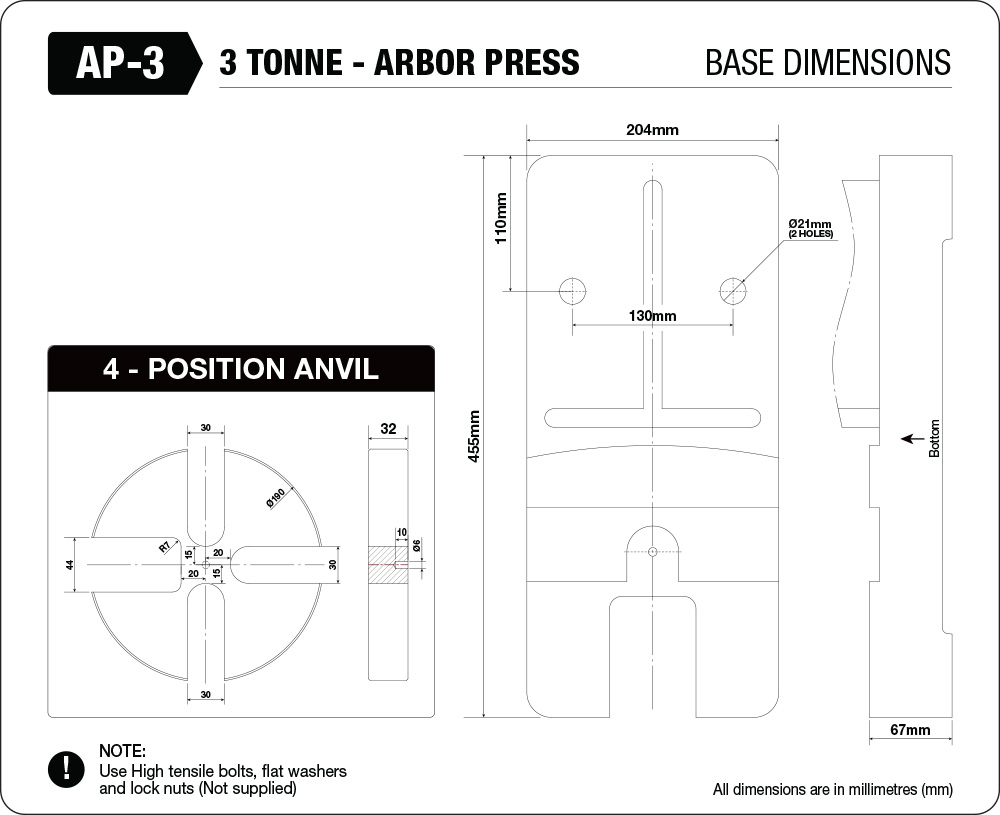

• Bench mountable using pre-drilled Ø21mm mounting holes
• Compact bench-mounted design with a 204 x 455mm footprint
