Arbor Press AP-1 1 Tonne

Description

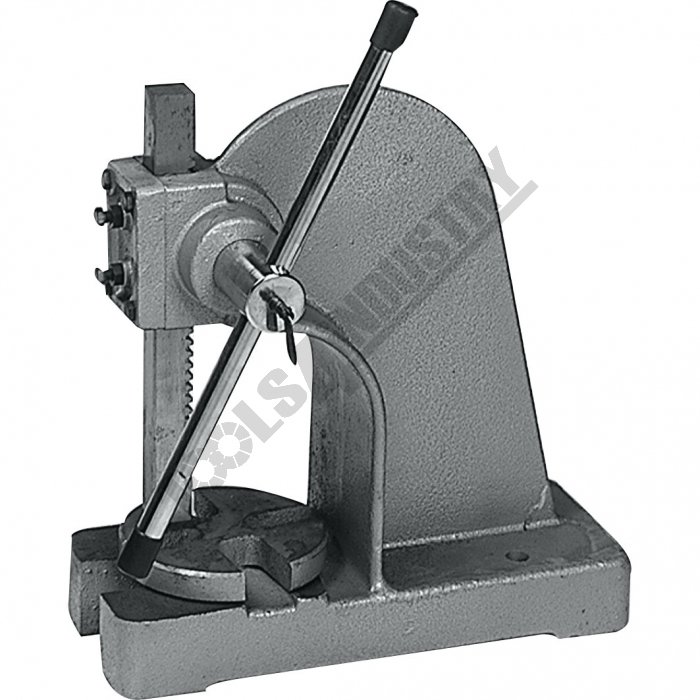

The HAFCO AP-1 1 Tonne Arbor Press is a compact, heavy-duty bench press designed for accurate pressing, assembly and repair work. Delivering 1 Tonne of pressing capacity, it features a robust cast iron frame for exceptional strength and rigidity, while the precision-machined 25 x 25mm square ram ensures accurate alignment and consistent results.

A smooth rack and pinion drive system provides controlled, effortless operation, giving you excellent feel and precision for a wide range of pressing applications. The 4-position rotating anvil, complete with multiple cut-out sizes, increases versatility and supports a variety of component sizes and jobs.

Ideal for pressing bearings, bushes, sleeves, pins, gears and other small components, the AP-1 is also well suited to keyway broaching, riveting, press fitting, component assembly, repair and general engineering maintenance. Compact and bench mountable using the pre-drilled mounting holes, it is the ideal addition to engineering workshops, maintenance departments, fabrication shops and serious DIY workshops.

Features

• Heavy-duty cast iron frame for maximum strength and long service life
• 1 Tonne pressing capacity
• 25 x 25mm square steel ram for accurate pressing
• Rack and pinion drive system for smooth, controlled operation

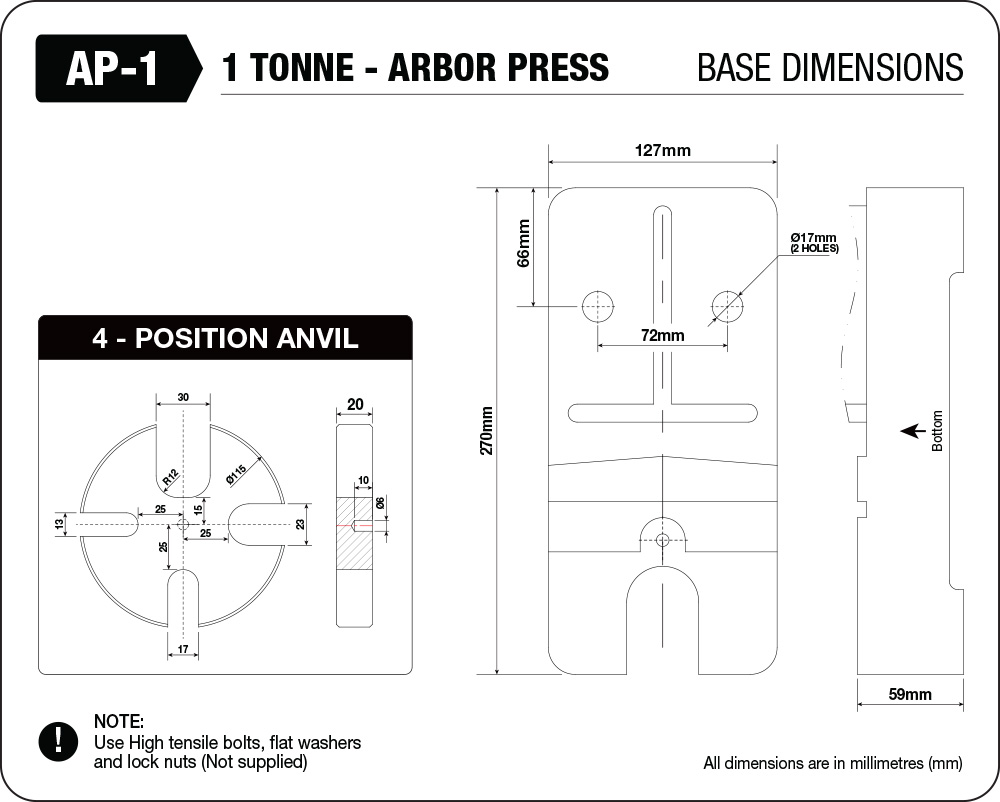

• 4-position rotating anvil with 13, 17, 23 & 30mm cut-outs and slots for versatile workholding
• 143mm ram travel
• 97mm throat depth with 137mm maximum throat height
• Bench mountable using pre-drilled Ø17mm mounting holes
• Compact bench-mounted design with a 127 x 270mm footprint
