Code	L296
Model	Model B
Capacity	230mm Lathe Centre Height
Weight (kg)	20
Weight (m³)	0.012
Weight (Freight)	20
Dimensions (cm)	27 x 25 x 18

TOOLMASTER

1 Year Warranty

Product Brochure Selecting a Quick Change Toolpost [551 KB]

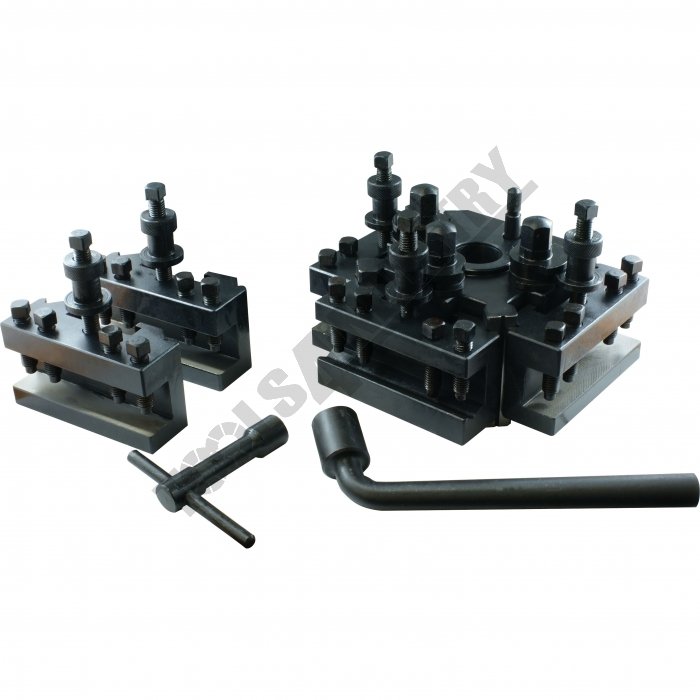

Quick Change Toolpost Model B 230mm Lathe Centre Height

Description

Manufactured from carbonized and hardened steel.
Italian design style.

Features

All bearing surfaces are precision ground to ensure rigidity
Handy lathe accessory for tool rooms and general engineering shops
Ease of operation cuts set-up time by 90%
No shims are required to adjust tools to correct centre height
Easily fitted to most centre lathes
Please Note: Some machining required to suit your lathe

Includes

4 x Square Tool Holders - for 32mm tools
1 x Vee Tool Holders - for boring bars

Optional Accessories

Holders - L296A

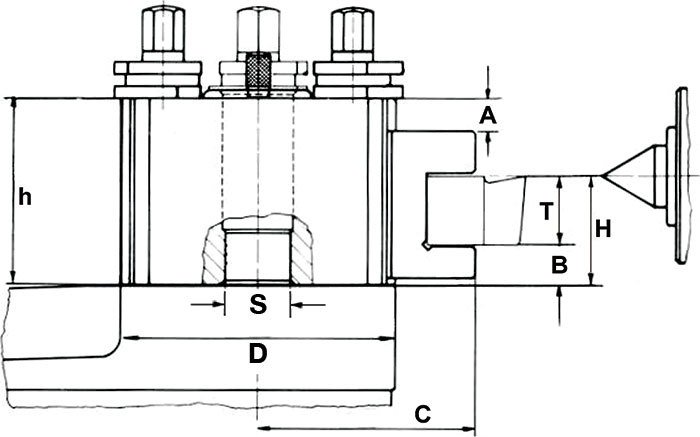

Specifications

Compare 8 Products
ORDER CODE
MODEL
Lathe Centre Heightmm
Lathe Swingmm
Amm
Bmm
Cmm
Dmm
Emm
Hmm
hmm
Smm
Tmm
Ymm
Number of SidesNo.
Number of HoldersNo.
Nett Weightkg

L296
B
230
460
18
15
100
125
~
47 - 65
85
30
32
~
3
5
22

L297
C
280
560
21
19
108
145
~
51 - 72
94
38
32
~
3
5
26

L2994
B2
150 - 250
300 - 500
~
14
73
150
~
38 - 57
76
32
25
~
~
4
9.8

L2996
C3
200 - 350
400 - 700
~
16
73-103
192-202
~
47-91
107
40
32
~
~
4
14.3

L280
QA-100
75 - 115
150 - 230
12
6
50
58
~
18 - 30
40
20 - 10
12
~
2
4
2.5

L292
QA-140
150 - 170
300 - 340
25
12.65
61
72.6
41
28.65
69.85
M16 x 1.5
16
112
2
4
6.2

L295
QA-150
150 - 170
300 - 340
15
20
60
74
~
28 - 41
60
24
16
~
2
4
6.2

L294
BR-BP
202
404
15
13
90
115
~
38 - 53
75
28
25
~
3
6
17.5

ORDER CODE	B
MODEL	230
Lathe Centre Heightmm	460
Lathe Swingmm	18
Amm	15
Bmm	100
Cmm	125
Dmm	~
Emm	47 - 65
Hmm	85
hmm	30
Smm	32
Tmm	~
Ymm	3
Number of SidesNo.	5
Number of HoldersNo.	22
Nett Weightkg
