| Code | L1055 |
|---|---|
| Model | L-46C |
| Capacity | Vertical or Horizontal Linishing Position |
| Weight (kg) | 17.5 |
| Weight (m3) | 0.052 |
| Weight (Freight) | 17.5 |
| Dimensions (cm) | 57 x 27.5 x 33 |

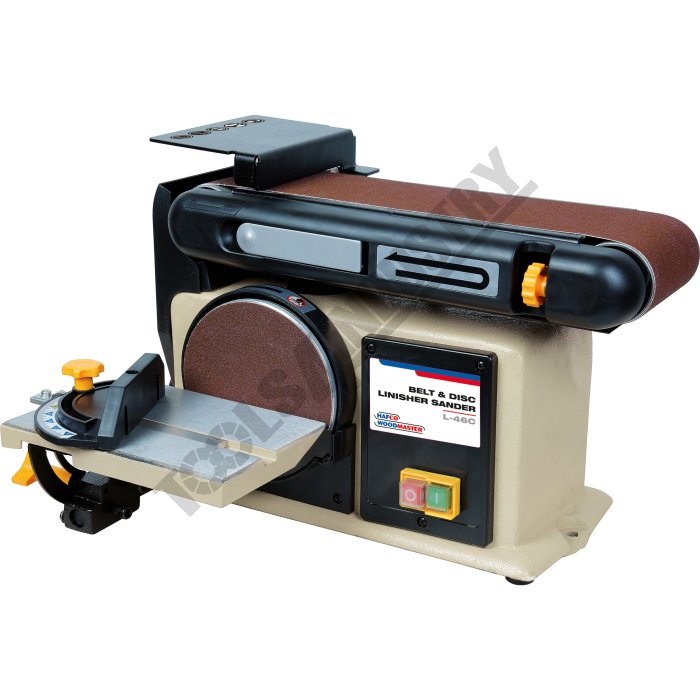

Belt & Disc Linisher Sander L-46C Vertical or Horizontal Linishing Position
Features
- Can use linisher in vertical or horizontal position
- Quick release for belt change
- Heavy duty cast iron base
- Easy to use belt tracking
- Safety magnetic type switch
- Linishing work area 280 x 100mm
- Ø150mm disc with hook & loop backing pad
- 45º tilting table with mitre guide
- Tilting table for use with disc or belt in the vertical position
- 450m/min belt speed ideal for timber
- Ø63mm dust collector port
- 370 watt induction motor
- Weight 16.5kg
Includes
- Tilting table and mitre guide
- Sanding belt & disc
Specifications
- Compare 4 Products
- ORDER CODE
- MODEL
- Belt Sizemm
- Disc Diametermm
- Table Sizemm
- Disc Table Sizemm
- Belt Speedmpm
- Motor Speedrpm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Floor Space (W x D x H)mm
- Nett Weightkg
- L1055
- L-46C
- 100 x 915
- Ø150
- 280 x 100
- 210 x 146
- 450
- 2850
- 0.37 / 0.5
- 240 / 10
- 530 x 380 x 320
- 16.5
- L107
- L-69A
- 150 x 1220
- Ø230
- 160 x 440
- 155 x 310
- ~
- 1400
- 0.75 / 1
- 240 / 10
- 750 x 550 x 1030
- 50
- L109
- L-612A
- 150 x 1220
- Ø305
- ~
- ~
- 753
- 1450
- 1.1 / 1.5
- 240 / 10
- 920 x 840 x 1020
- 62
- L105
- bts 900x
- 100 x 915
- Ø150
- 280 x 100
- 210 x 146
- 450
- 2850
- 0.37 / 0.5
- 240 / 10
- 530 x 380 x 320
- 25
| ORDER CODE | L-46C |
|---|---|
| MODEL | 100 x 915 |
| Belt Sizemm | Ø150 |
| Disc Diametermm | 280 x 100 |
| Table Sizemm | 210 x 146 |
| Disc Table Sizemm | 450 |
| Belt Speedmpm | 2850 |
| Motor Speedrpm | 0.37 / 0.5 |
| Motor PowerkW / hp | 240 / 10 |
| Voltage / AmperageV / amp | 530 x 380 x 320 |
| Floor Space (W x D x H)mm | 16.5 |
| Nett Weightkg |
