Code	L057
Capacity	55º Grade P30
Weight (kg)	0.02
Weight (m³)	0.000
Weight (Freight)	0.02
Dimensions (cm)	9.8 x 4 x 1.1

HAFCO

Product Brochure

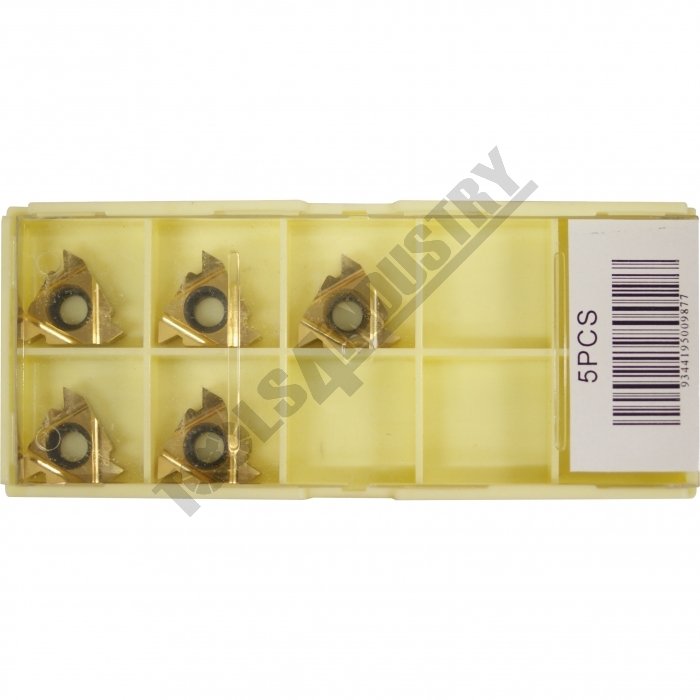

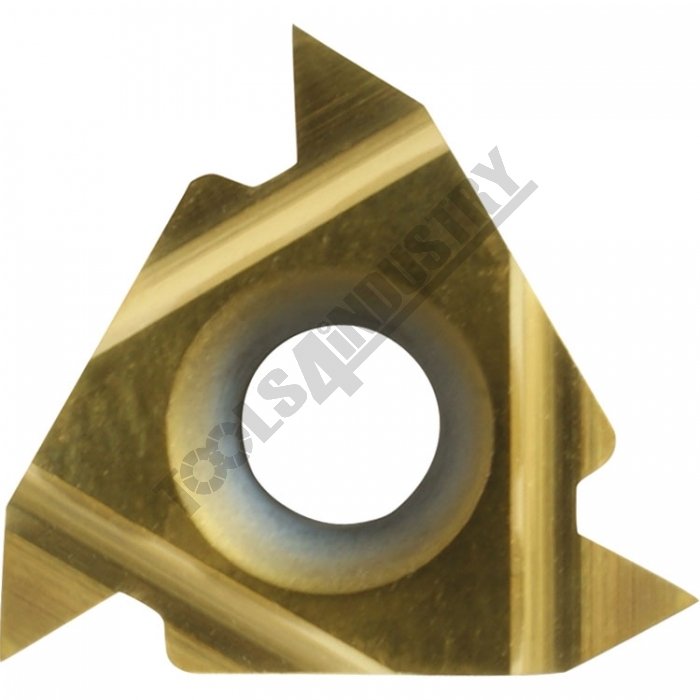

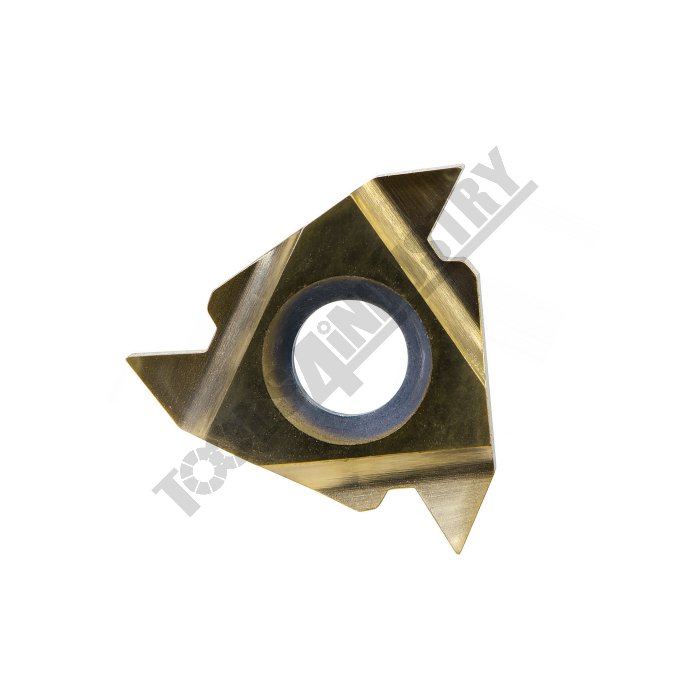

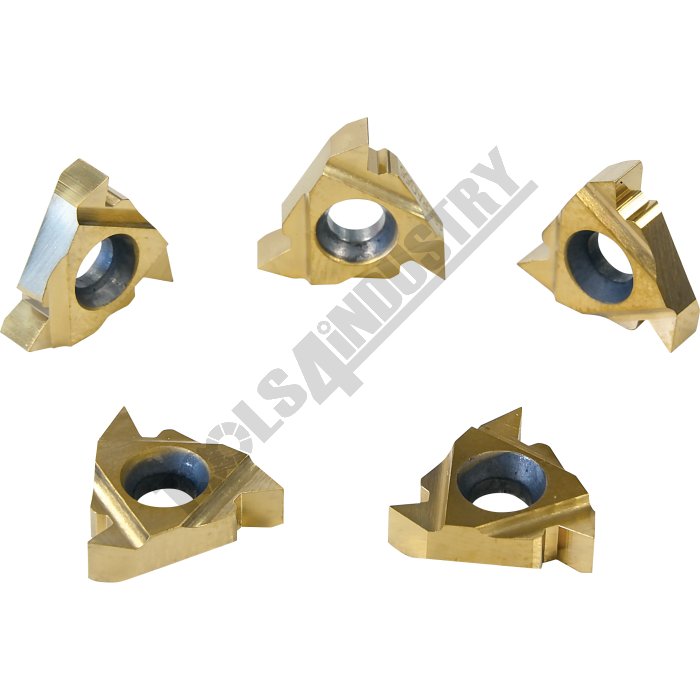

16IRM Carbide Inserts - Internal Threading 55º Grade P30

Features

55º Insert capacity (48-8TPI Imperial only)
5 x Inserts per pack
Grade: general purpose

Specifications

Compare 5 Products

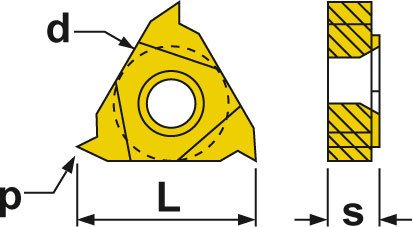

ORDER CODE
Type
ISO
Grade
pdeg
Pitch - Metricmm
Teeth Per InchTPI
Imm
smm
dmm

L057
Internal
16IRM-AG55
TT7010
55º
~
48 - 8
16.5
3.67
9.52

L058
Internal
16IRM-AG60
TT7010
60º
0.5 - 3.0
48 - 8
16.5
3.67
9.52

L0546
External
11ERM-AG60
TT7010
60º
0.5 - 1.75
48 - 14
11
3.18
6.35

L055
External
16ERM-AG55
TT7010
55º
~
48 - 8
16.5
3.67
9.52

L056
External
16ERM-AG60
TT7010
60º
0.5 - 3.0
48 - 8
16.5
3.67
9.52

ORDER CODE	Internal
Type	16IRM-AG55
ISO	TT7010
Grade	55º
pdeg	~
Pitch - Metricmm	48 - 8
Teeth Per InchTPI	16.5
Imm	3.67
smm	9.52
dmm
