L032

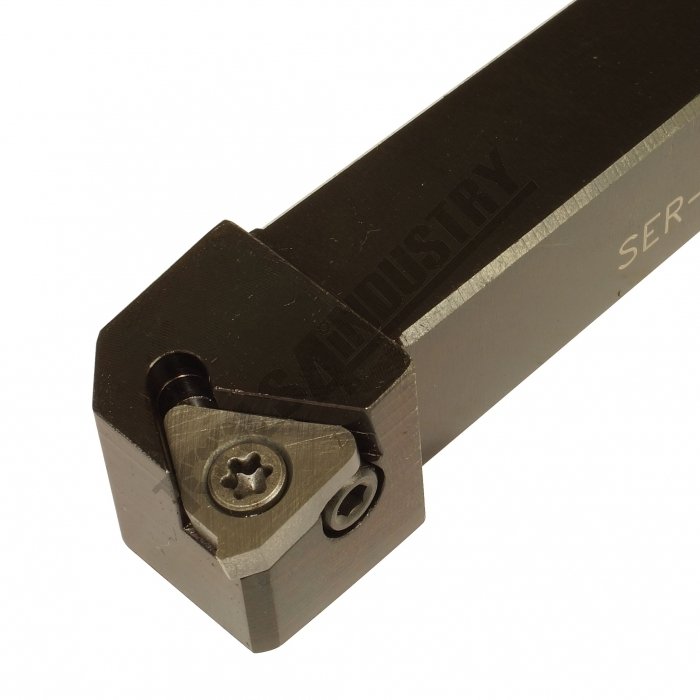

Toolholder Close Up

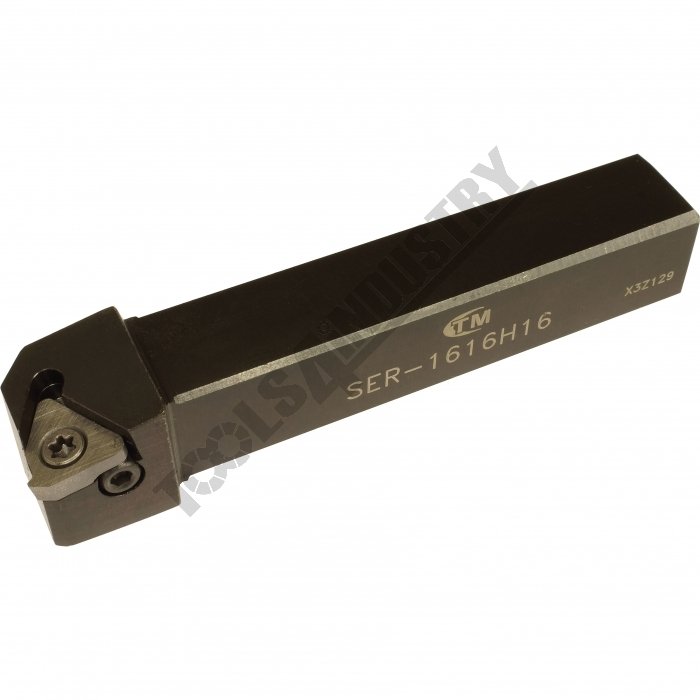

Toolholder

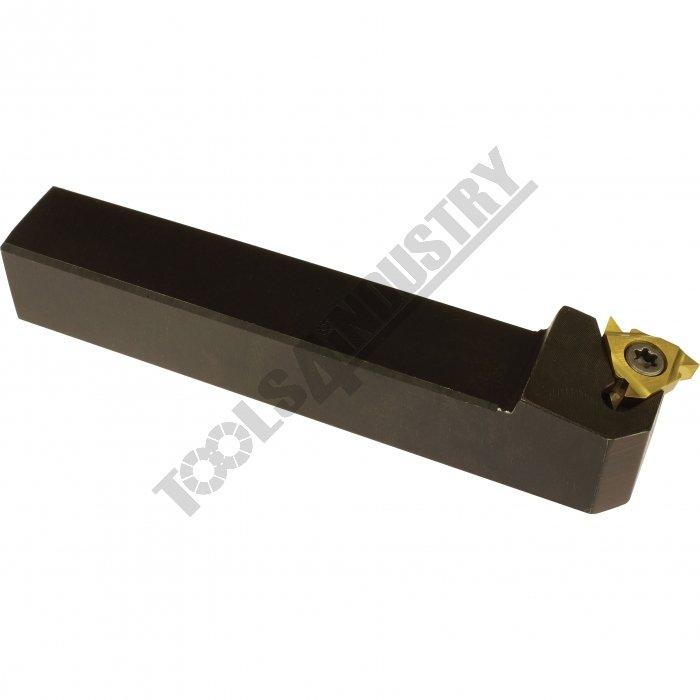

Rear View

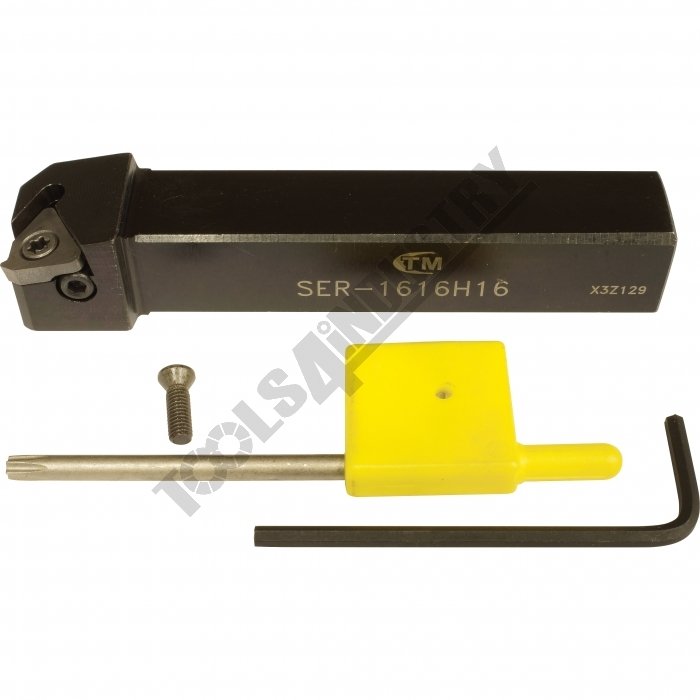

Parts

Code	L032
Model	SER-1616-H16
Capacity	16mm Tool Height
Weight (kg)	0.26
Weight (m³)	0.000
Weight (Freight)	0.26
Dimensions (cm)	12 x 3 x 3

Product Brochure

External Threading SER-1616-H16 16mm Tool Height

Description

NOTE: Inserts not included with tool holders
Use Threading Insert - 55º (L055)
Use Threading Insert - 60º (L056)

Features

Threading tool holders take 16ER full form inserts or general purpose inserts
Suitable for threading towards the chuck

Specifications

Compare 4 Products
ORDER CODE
Sizemm
Hand Type
Amm
Bmm
Cmm
Emm
Fmm

L032
16
Right
16
16
100
22
20

L033
20
Right
20
20
125
25
25

L034
25
Right
25
25
150
25
32

L031
12
Right
12
12
100
18
16

ORDER CODE	16
Sizemm	Right
Hand Type	16
Amm	16
Bmm	100
Cmm	22
Emm	20
Fmm
