| Code | H9078 |
|---|---|
| Model | LHM-90-M12 |
| Capacity | Packet QTY 2 |
| Weight (kg) | 0.22 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 0.333 |
| Dimensions (cm) | 13 x 13 x 6 |

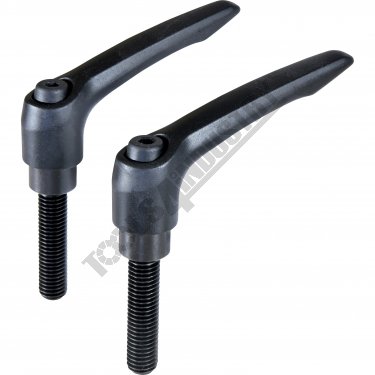

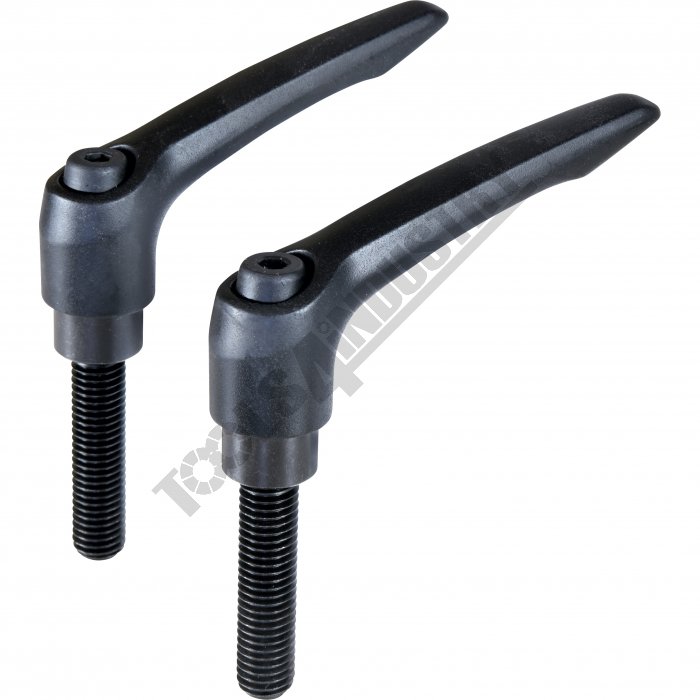

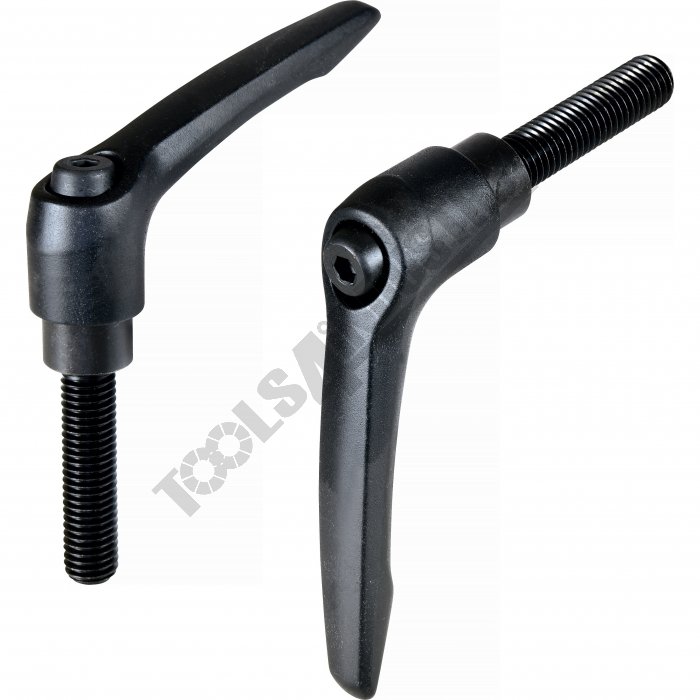

Adjustable Hand Lever LHM-90-M12 Packet QTY 2
Description
The Adjustable Hand Lever is designed for applications where space is constrained and components have to be clamped at a particular lever angle. The lever disengages and can be swivelled to the desired clamping position.Features
- Handle made from Zinc Alloy

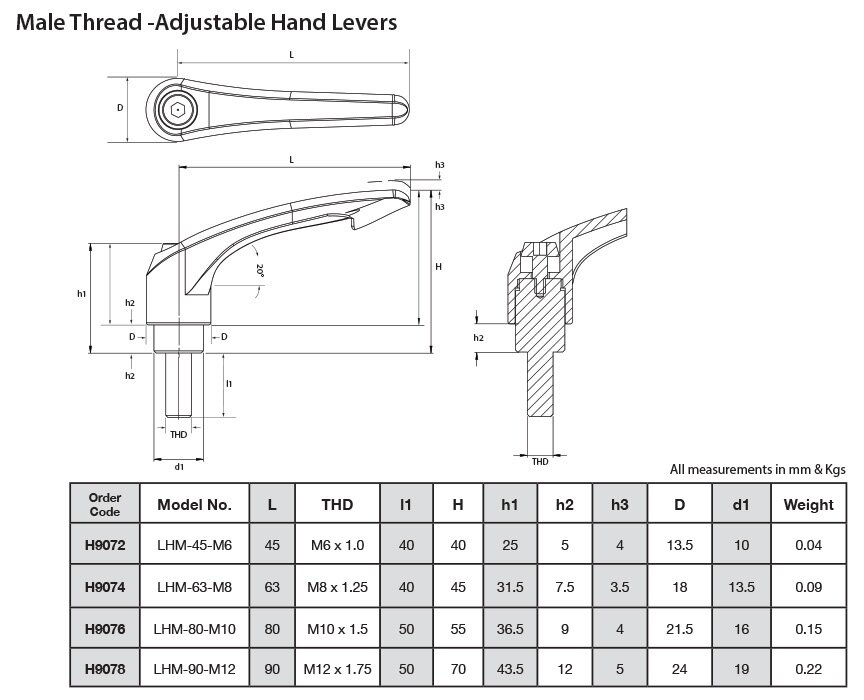

Specifications
- Compare 21 Products
- ORDER CODE
- Brand
- Wheel Diameter (mm)
- Handle Type
- Handle Size (mm)
- Screw Length (mm)
- Outside Thread
- Internal Thread
- Pack QTY
| ORDER CODE | H9078 |
|---|---|
| Brand | HAFCO |
| Wheel Diameter (mm) | - |
| Handle Type | Lever |
| Handle Size (mm) | 92 |
| Screw Length (mm) | 50 |
| Outside Thread | M12 x 1.75P |
| Internal Thread | ~ |
| Pack QTY | 2 |
