| Code | H9022 |
|---|---|
| Capacity | Ø200mm |
| Weight (kg) | 0.22 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 0.333 |
| Dimensions (cm) | 13 x 13 x 6 |

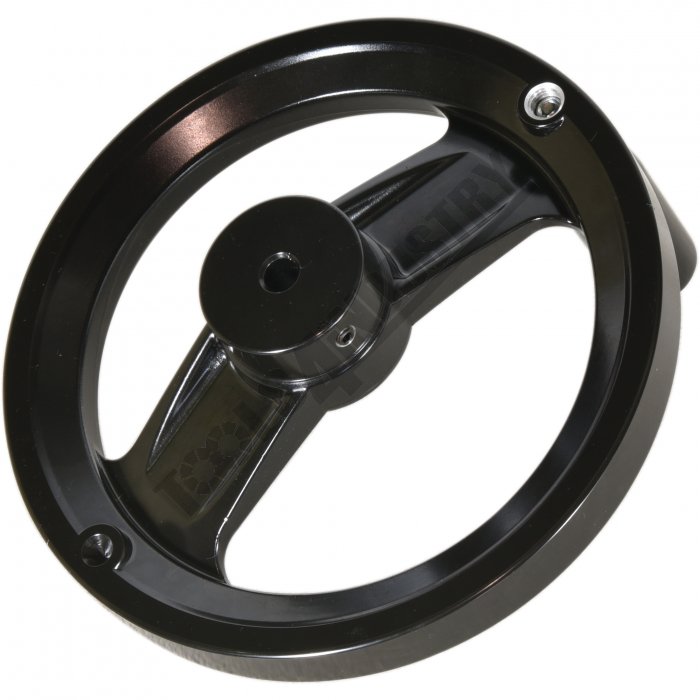

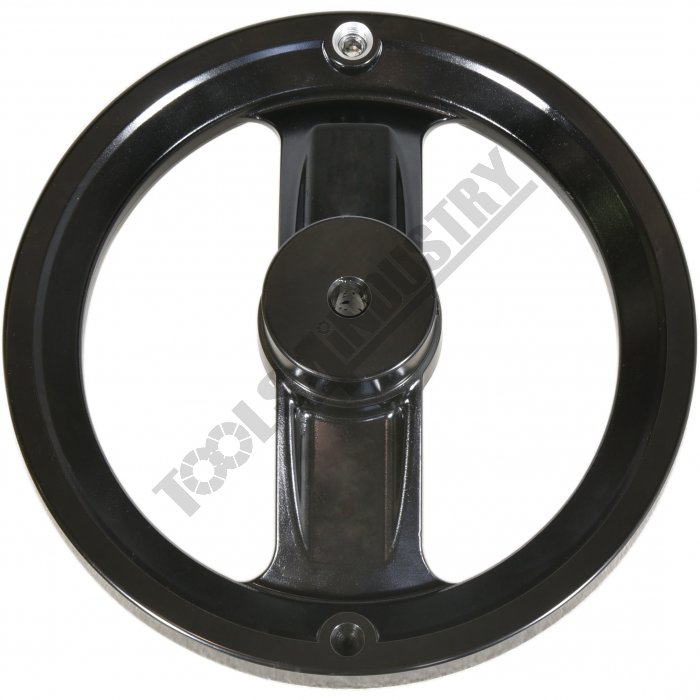

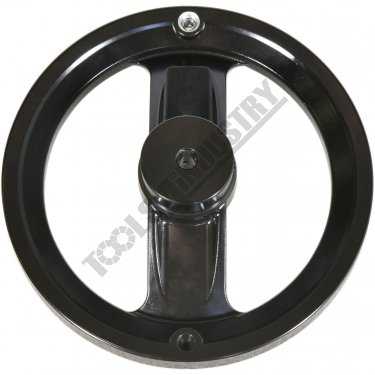

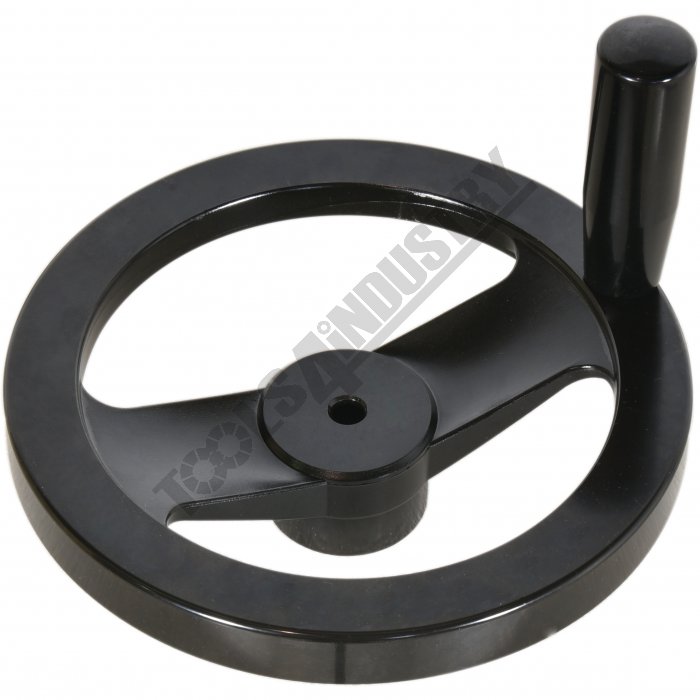

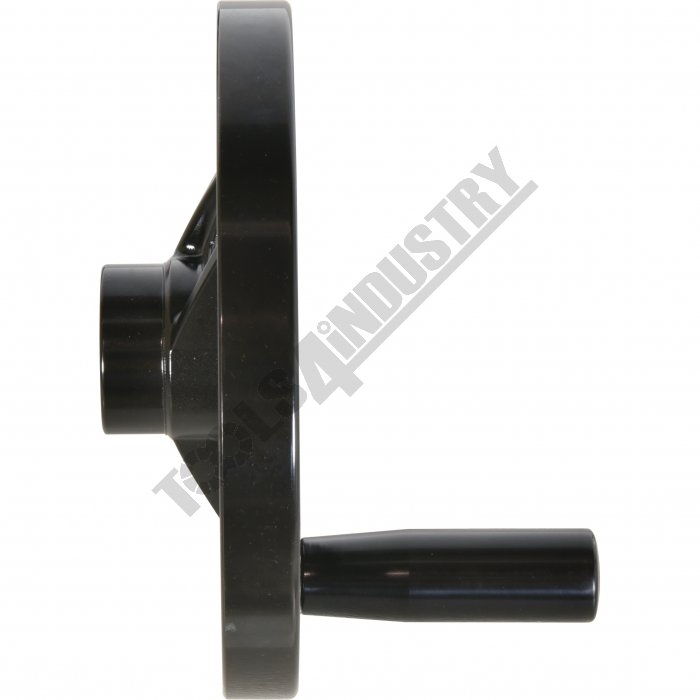

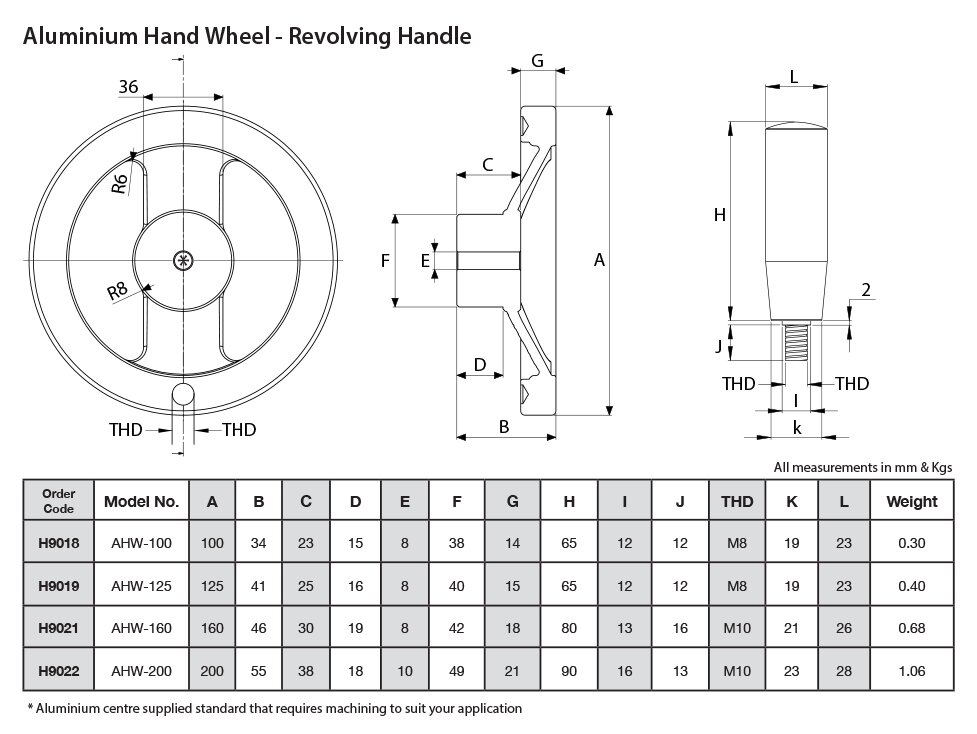

Aluminium Handwheel - Revolving Handle Ø200mm
Description
Ø200mm die-cast aluminium handwheel90mm revolving type phenolic handle
Black coloured finish
Threaded grub screw to secure handwheel
Features
- Revolving phenolic handle

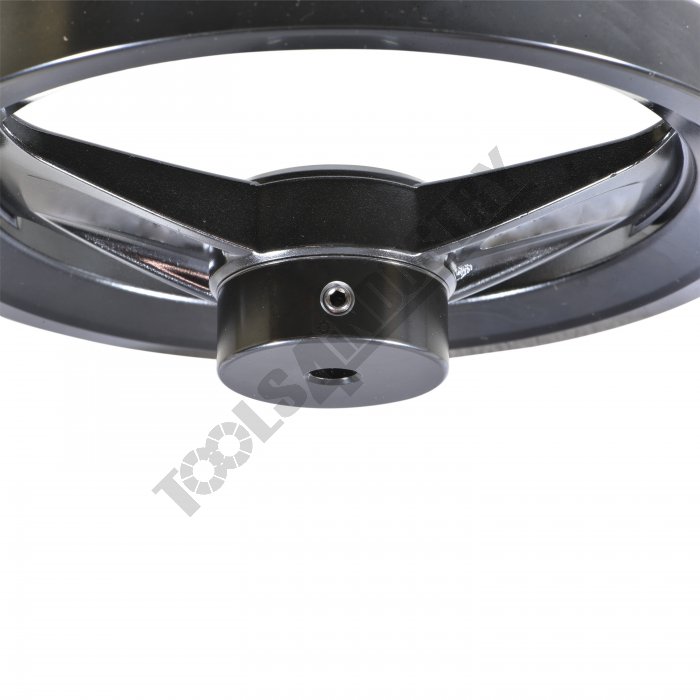

- Threaded grub screw
- Aluminium centre supplied standard with 10mm bore that requires machining to suit your application.
Specifications
- Compare 21 Products
- ORDER CODE
- Brand
- Wheel Diameter (mm)
- Handle Type
- Handle Size (mm)
- Screw Length (mm)
- Outside Thread
- Internal Thread
- Pack QTY
| ORDER CODE | H9022 |
|---|---|
| Brand | HAFCO |
| Wheel Diameter (mm) | 200 |
| Handle Type | Revolving |
| Handle Size (mm) | 90 |
| Screw Length (mm) | ~ |
| Outside Thread | ~ |
| Internal Thread | ~ |
| Pack QTY | 1 |
