| Code | G614 |
|---|---|
| Model | LG-10 |
| Capacity | 255mm Centre Height |
| Weight (kg) | 7.5 |
| Weight (m3) | 0.037 |
| Weight (Freight) | 12.321 |
| Dimensions (cm) | 60 x 26 x 24 |

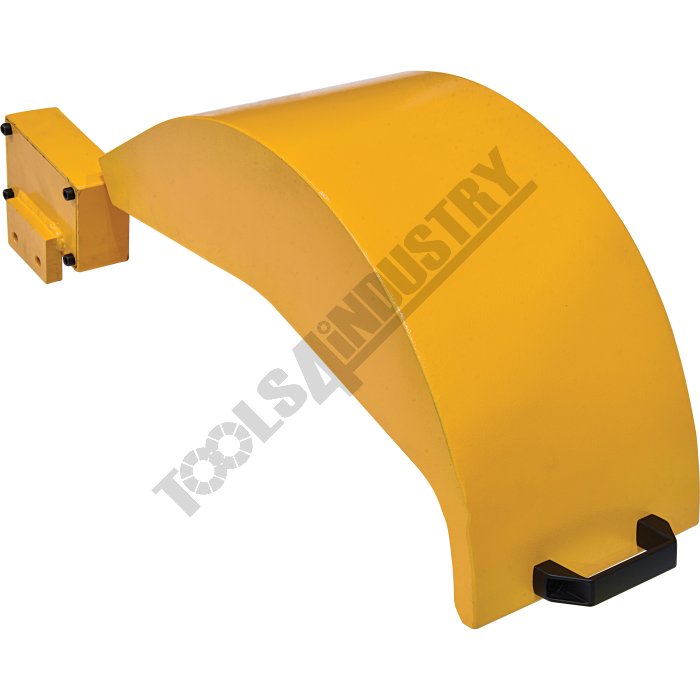

Lathe Safety Chuck Guard LG-10 255mm Centre Height
Features
- Retro fits to lathe headstock with a 255mm centre height
- Suits up to Ø350mm lathe chucks
- Swivel steel safety chuck guard with handle
- Includes safety chuck guard, mounting bracket with micro switch and wiring
- Micro switch recommended for 12V or 24V
- Installation required by a licensed electrician
Specifications
- Compare 9 Products
- ORDER CODE
- MODEL
- Guard Type
- Material Type
- Leadscrew Cover Widthmm
- Suits Lathe - Distance Between Centresmm
- Suits Lathe Centre Heightmm
- Suits Lathe Chuck Size Max.mm
- G614
- LG-10
- Safety Chuck Guard
- Steel
- ~
- ~
- 255
- Ø350
- G616
- LG-13
- Safety Chuck Guard
- Steel
- ~
- ~
- 330
- Ø400
- G659
- LSGC-1000
- Safety Leadscrew Cover
- Steel - Concertina
- ~
- Up to 1000
- ~
- ~
- G660
- LSG-1000
- Safety Leadscrew Cover
- Neoprene-Retractable
- 200
- Up to 1000
- ~
- ~
- G662
- LSG-1500
- Safety Leadscrew Cover
- Neoprene-Retractable
- 200
- Up to 1500
- ~
- ~
- G664
- LSG-2000
- Safety Leadscrew Cover
- Neoprene-Retractable
- 250
- Up to 2000
- ~
- ~
- G666
- LSG-3000
- Safety Leadscrew Cover
- Neoprene-Retractable
- 250
- Up to 3000
- ~
- ~
- G610
- LG-7
- Safety Chuck Guard
- Steel
- ~
- ~
- 178
- Ø200
- G612
- LG-8
- Safety Chuck Guard
- Steel
- ~
- ~
- 203
- Ø250
| ORDER CODE | LG-10 |
|---|---|
| MODEL | Safety Chuck Guard |
| Guard Type | Steel |
| Material Type | ~ |
| Leadscrew Cover Widthmm | ~ |
| Suits Lathe - Distance Between Centresmm | 255 |
| Suits Lathe Centre Heightmm | Ø350 |
| Suits Lathe Chuck Size Max.mm |
