| Code | D1117 |
|---|---|
| Model | CBN230 |
| Capacity | 78x10mm |
| Weight (kg) | 0.35 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 0.35 |
| Dimensions (cm) | 10 x 10 x 2 |

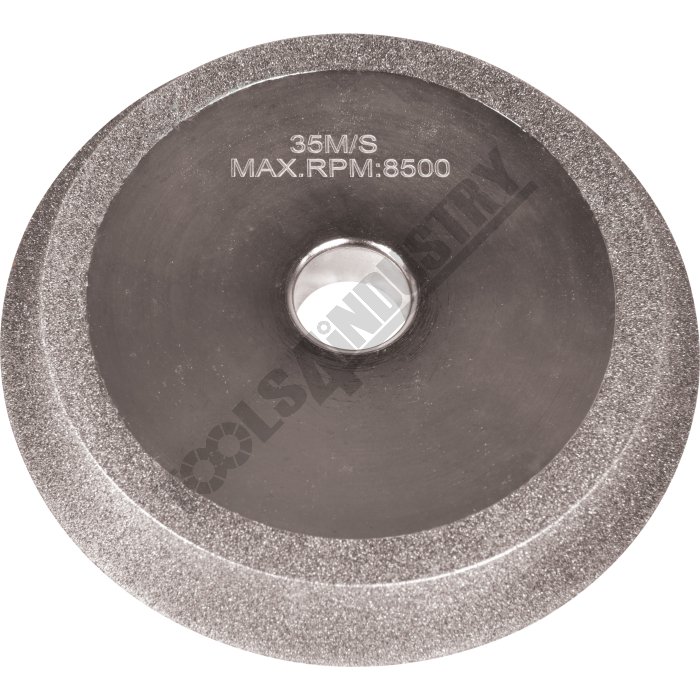

CBN Grinding Wheel CBN230 78x10mm
Description
What is CBN (Cubic Boron Nitride)? CBN abrasive is a similar product to synthetic industrial diamonds.CBN is composed of nitrogen and boron as very very hard crystals - second in hardness only to diamond. A single layer of CBN grit on the surface of a metal wheel can grind the hardest steel and last for many years.
Our electroplated CBN grinding wheels are machined from solid steel, electroplated with a layer of CBN grit and nickel plated.
A CBN wheel is far better suited for sharpening high speed steels and will withstand the friction from grinding with much less heat produced than with a diamond wheel.
Features
- 78 x 10 x 12.63mm (Diameter x Wide x Bore)
- CBN 230 for Carbide
- Suits PP-13C - Precision Drill Sharpener
Specifications
- Compare 7 Products
- ORDER CODE
- Type
- Grinding - Drill Bit Type
- Sharpening Rangemm
- Suits Grinding Machine
| ORDER CODE | CBN 230 Wheel |
|---|---|
| Type | HSS |
| Grinding - Drill Bit Type | ~ |
| Sharpening Rangemm | PP-13C |
| Suits Grinding Machine |
