| Code | D1115 |
|---|---|
| Capacity | For Grinding 3-13mm HSS Drill Bits |
| Weight (kg) | 0.1 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 0.1 |
| Dimensions (cm) | 4 x 4 x 4 |

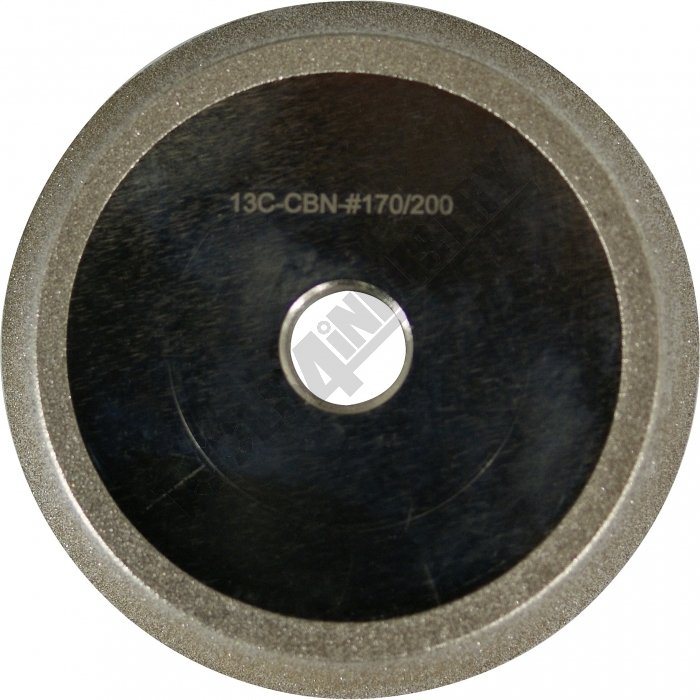

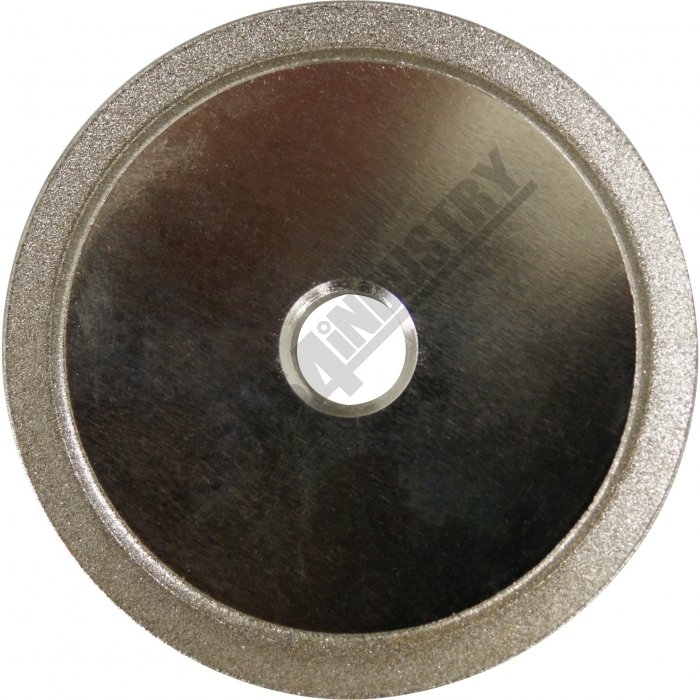

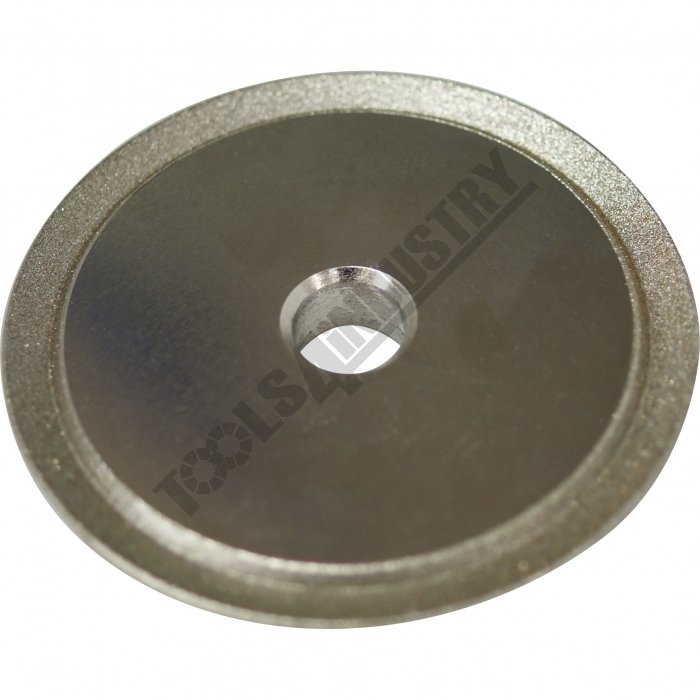

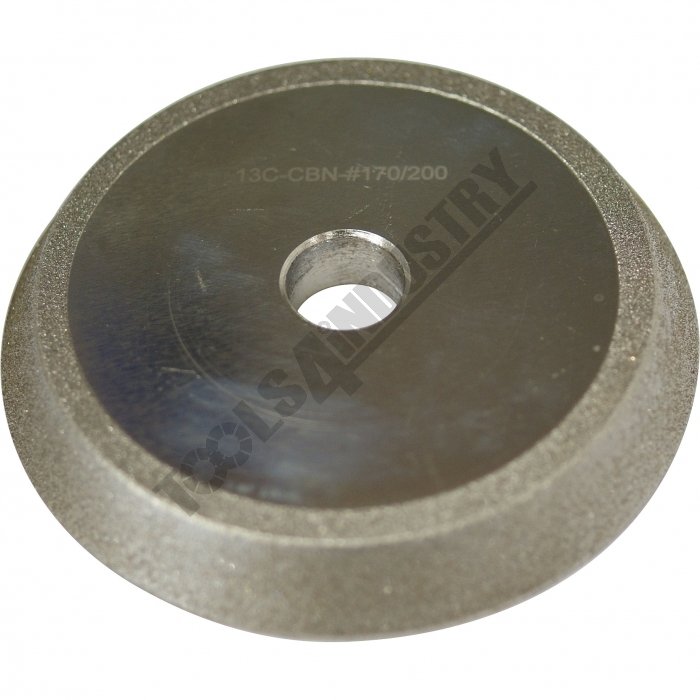

13C-CBN Grinding Wheel For Grinding 3-13mm HSS Drill Bits
Description
What is 13C-CBN (Cubic Boron Nitride)? CBN abrasive is a similar product to synthetic industrial diamonds.CBN is composed of nitrogen and boron as very very hard crystals - second in hardness only to diamond. A single layer of CBN grit on the surface of a metal wheel can grind the hardest steel and last for many years.
Our electroplated CBN grinding wheels are machined from solid steel, electroplated with a layer of CBN grit and nickel plated.
A CBN wheel is far better suited for sharpening high speed steels and will withstand the friction from grinding with much less heat produced than with a diamond wheel.
Features
- 77 x 10 x 12.7mm (Diameter x Wide x Bore)
- CBN wheels retain their shape and size
- Cool cutting- no burnt or blue edges
- Only light pressure required
- Don't require dressing or conditioning
- Fine and even finish to tools
- Very long lasting
Specifications
- Compare 7 Products
- ORDER CODE
- Type
- Grinding - Drill Bit Type
- Sharpening Rangemm
- Suits Grinding Machine
| ORDER CODE | 13C-CBN Wheel |
|---|---|
| Type | HSS |
| Grinding - Drill Bit Type | 3 - 13 |
| Sharpening Rangemm | PP-13C |
| Suits Grinding Machine |
