| Code | C7188 |
|---|---|
| Model | P14-315/D1-8 |
| Capacity | Ø315mm |
| Weight (kg) | 50 |
| Weight (m3) | 0.032 |
| Weight (Freight) | 50 |
| Dimensions (cm) | 42 x 36 x 21 |

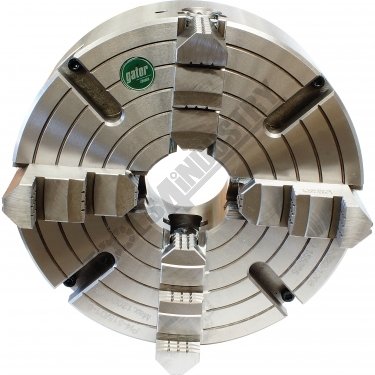

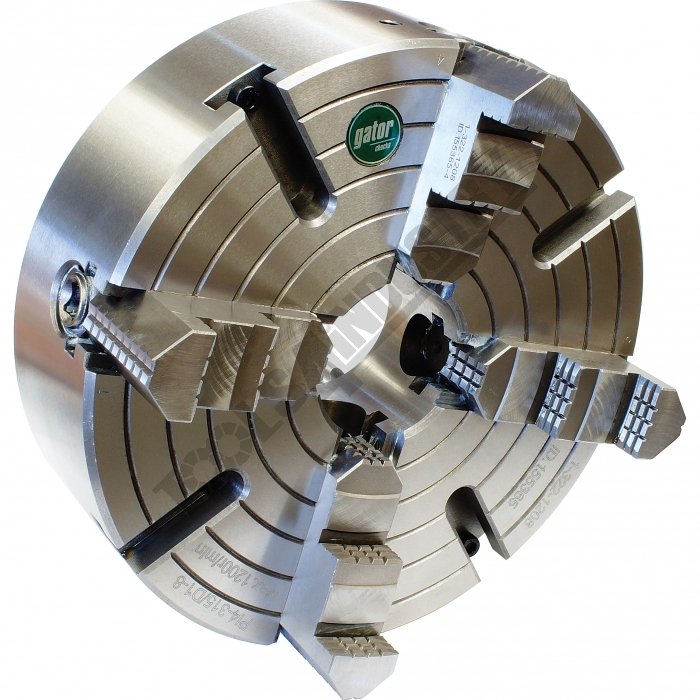

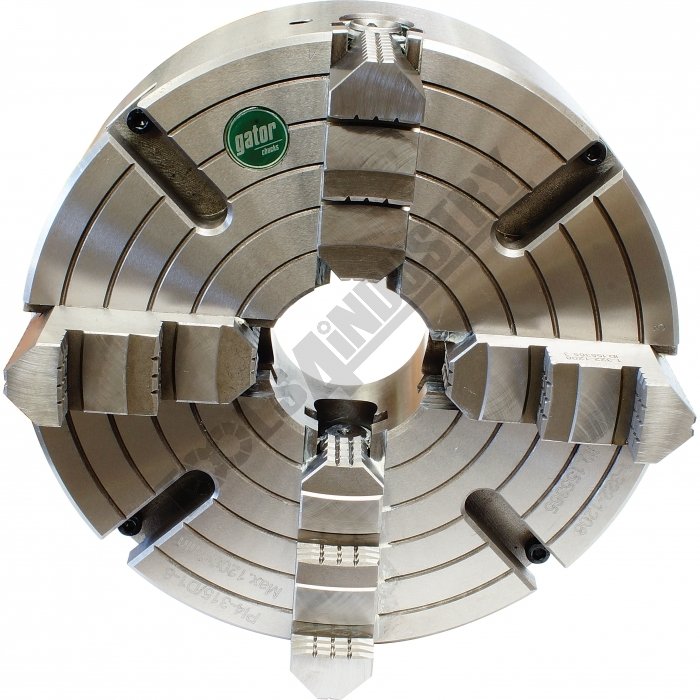

4 Jaw Independent Lathe Chuck P14-315/D1-8 Ø315mm
Description

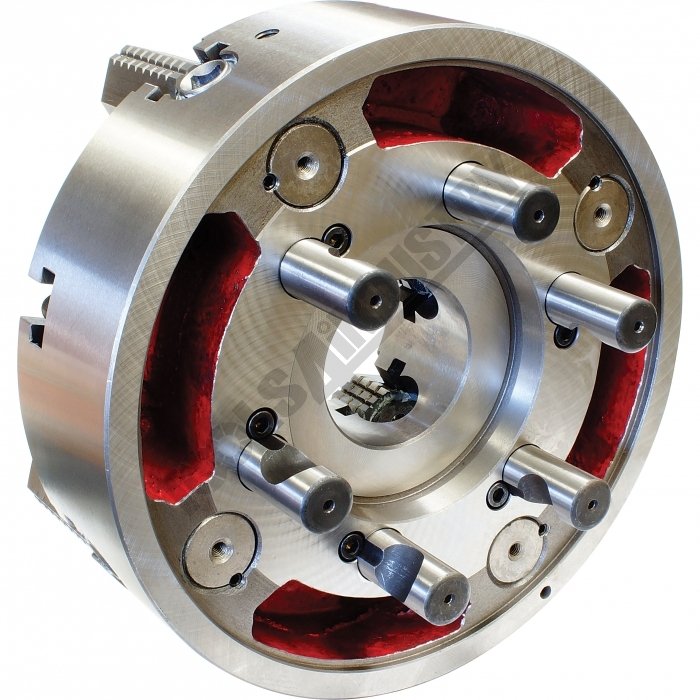

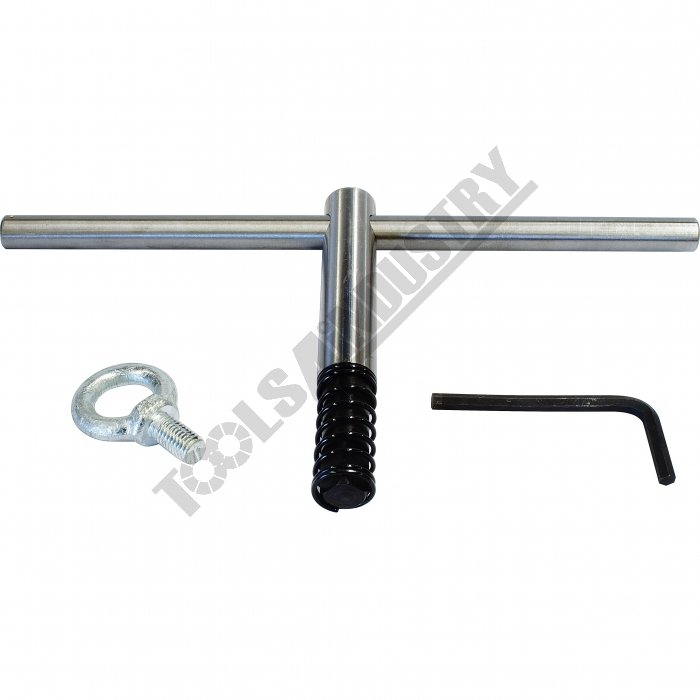

The "P" series chucks are to German standards and feature jaws that are individually adjustable, allowing firm gripping of odd shaped items. The semi steel chuck has jaws manufactured from hardened high quality alloy steel. Thrust bearings and operating screws made of case hardened steel.Supplied with CAMLOCK PINS, 1 set of jaws and wrench.
Manufactured to DIN55029
Features
- German design

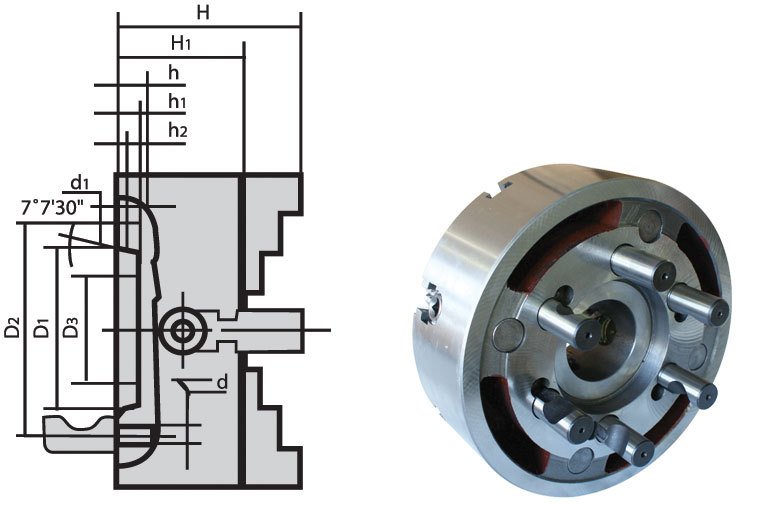

Specifications
- Compare 9 Products
- ORDER CODE
- Chuck Sizemm
- Camlock
- Speedrpm
- D1mm
- D2mm
- D3mm
- H1mm
- hmm
- Nett Weightkg
- C7188
- Ø315
- D1-8
- 1200
- 139.72
- 171.4
- 80
- 95
- ~
- 40
- C256A
- Ø320
- D1-8
- 1200
- 139.7
- 171.4
- 95
- 90
- 14
- 40.5
- C273
- Ø400
- D1-8
- 1000
- 139.7
- 171.4
- 125
- 95
- 14
- 78
- C271
- Ø400
- D1-11
- 1000
- 196.8
- 235
- 125
- 95
- 16
- 72
- C274
- Ø500
- D1-11
- 800
- 196.8
- 235
- 160
- 106
- 16
- 124
- C275
- Ø630
- D1-11
- 600
- 196.8
- 235
- 180
- 118
- 16
- 216
- C252
- Ø200
- D1-4
- 2000
- 82.5
- 104.8
- 56
- 75
- 12
- 15
- C253
- Ø200
- D1-5
- 2000
- 82.5
- 104.8
- 56
- 75
- 12
- 17.5
- C256
- Ø250
- D1-6
- 1800
- 106.38
- 133.4
- 75
- 80
- 13
- 23
| ORDER CODE | Ø315 |
|---|---|
| Chuck Sizemm | D1-8 |
| Camlock | 1200 |
| Speedrpm | 139.72 |
| D1mm | 171.4 |
| D2mm | 80 |
| D3mm | 95 |
| H1mm | ~ |
| hmm | 40 |
| Nett Weightkg |
