| Code | C252 |
|---|---|
| Model | K72-200/D1-4 |
| Capacity | Ø200mm |
| Weight (kg) | 15.5 |
| Weight (m3) | 0.014 |
| Weight (Freight) | 15.5 |
| Dimensions (cm) | 26 x 26 x 20 |

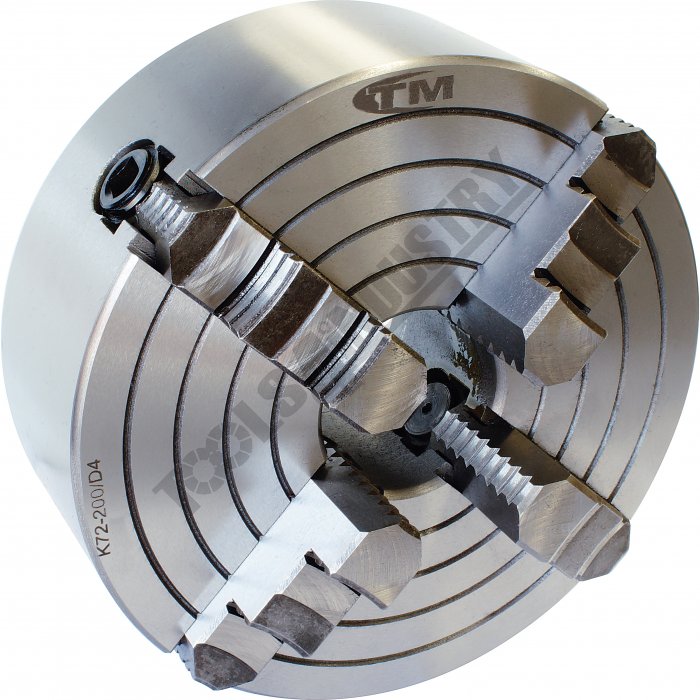

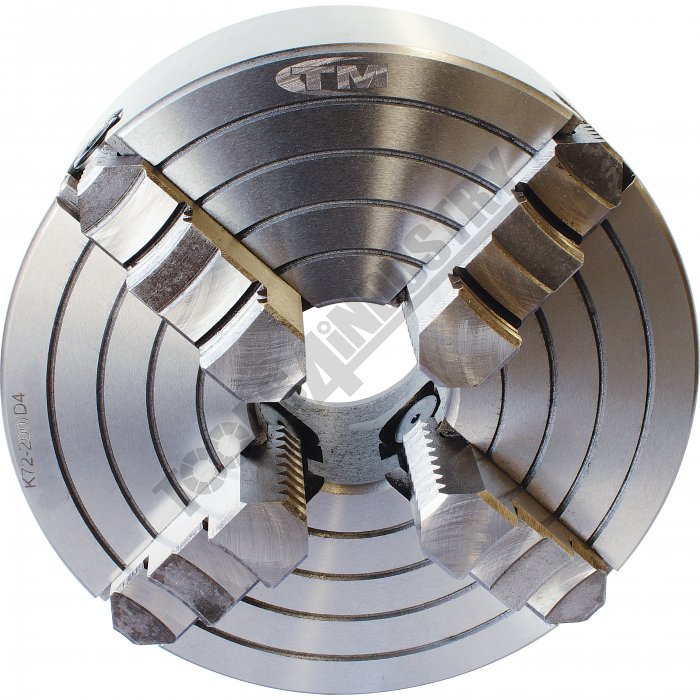

4 Jaw Independent Lathe Chuck K72-200/D1-4 Ø200mm
Description
Manufactured from High Strength semi steel and precision machinedJaws are case-hardened to minimise wear
Operating screws are made from alloy steel and case-hardened.

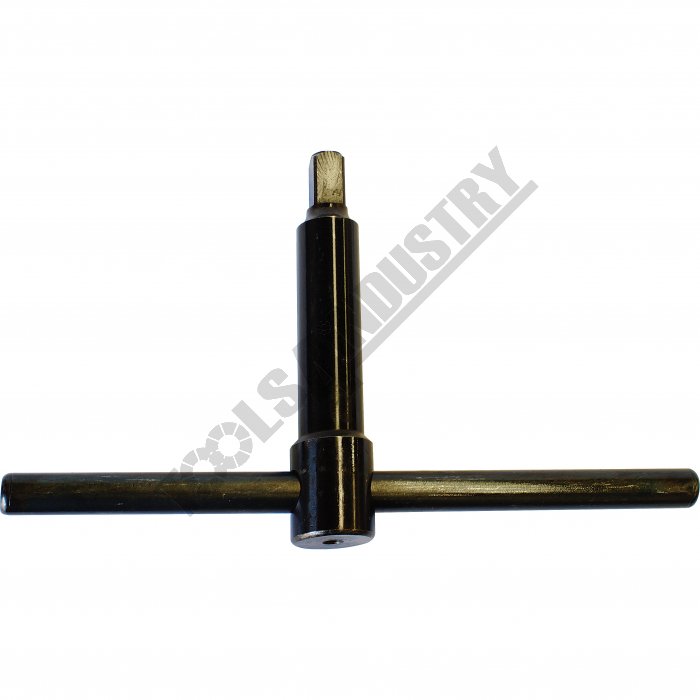

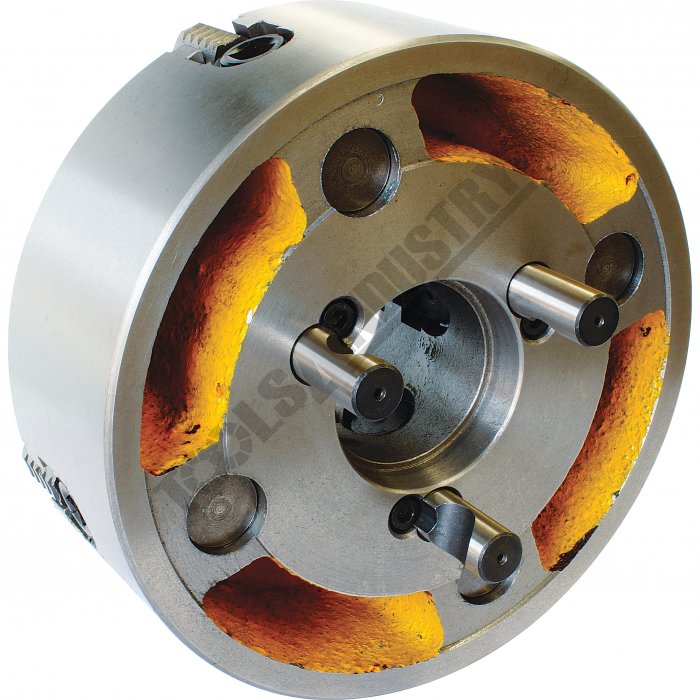

Supplied with camlock pins, 1 set of jaws and wrench.
Specifications
- Compare 9 Products
- ORDER CODE
- Chuck Sizemm
- Camlock
- Speedrpm
- D1mm
- D2mm
- D3mm
- H1mm
- hmm
- Nett Weightkg
- C252
- Ø200
- D1-4
- 2000
- 82.5
- 104.8
- 56
- 75
- 12
- 15
- C253
- Ø200
- D1-5
- 2000
- 82.5
- 104.8
- 56
- 75
- 12
- 17.5
- C256
- Ø250
- D1-6
- 1800
- 106.38
- 133.4
- 75
- 80
- 13
- 23
- C7188
- Ø315
- D1-8
- 1200
- 139.72
- 171.4
- 80
- 95
- ~
- 40
- C256A
- Ø320
- D1-8
- 1200
- 139.7
- 171.4
- 95
- 90
- 14
- 40.5
- C273
- Ø400
- D1-8
- 1000
- 139.7
- 171.4
- 125
- 95
- 14
- 78
- C271
- Ø400
- D1-11
- 1000
- 196.8
- 235
- 125
- 95
- 16
- 72
- C274
- Ø500
- D1-11
- 800
- 196.8
- 235
- 160
- 106
- 16
- 124
- C275
- Ø630
- D1-11
- 600
- 196.8
- 235
- 180
- 118
- 16
- 216
| ORDER CODE | Ø200 |
|---|---|
| Chuck Sizemm | D1-4 |
| Camlock | 2000 |
| Speedrpm | 82.5 |
| D1mm | 104.8 |
| D2mm | 56 |
| D3mm | 75 |
| H1mm | 12 |
| hmm | 15 |
| Nett Weightkg |
