| Code | C7028 |
|---|---|
| Model | KD-6-10 |
| Capacity | Ø250mm |
| Weight (kg) | 31 |
| Weight (m3) | 0.026 |
| Weight (Freight) | 31 |
| Dimensions (cm) | 32 x 32 x 25 |

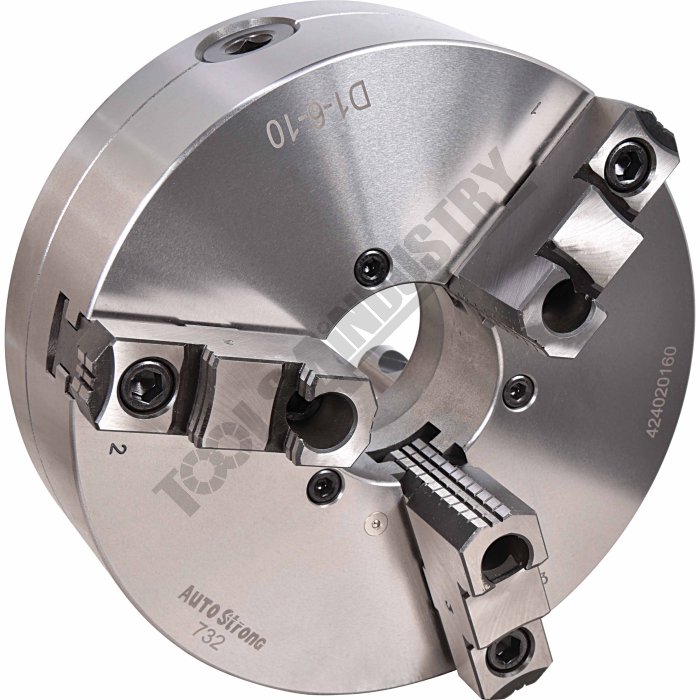

High Precision 3 Jaw Self Centring Lathe Chuck KD-6-10 Ø250mm
Description
Auto Strong are one of the world’s leading manufacturers of lathe chucks. The KD Series, camlock direct mounting chucks are manufactured in Taiwan with a high precision gripping accuracy of 0.03mm and with a Meehanite casting body they are suitable for high-speed applications.Features
- 3 Jaw self centering lathe chuck

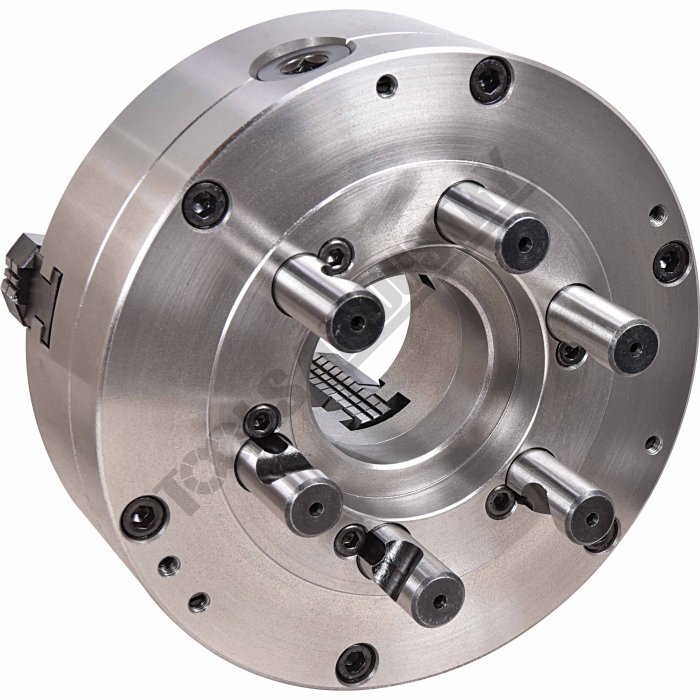

- D1-6 Camlock direct mount
- High precision gripping accuracy of 0.03mm (0.0012”) T.I.R

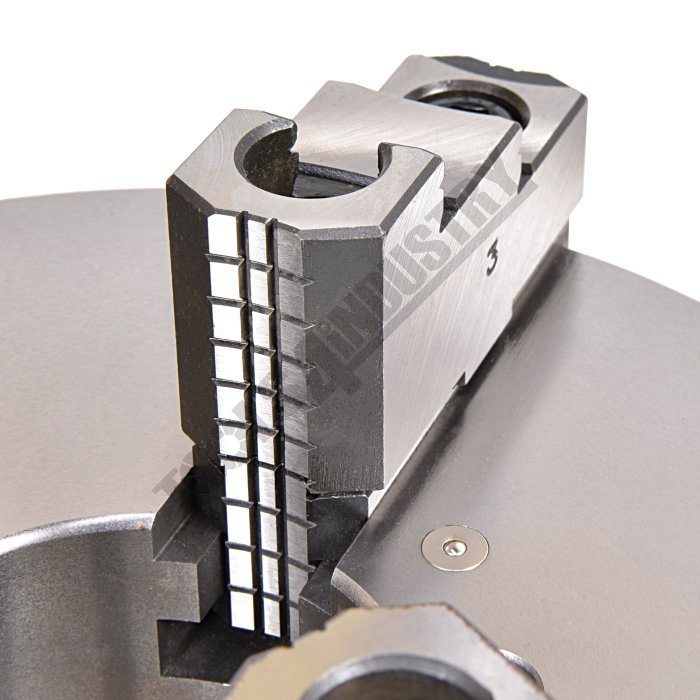

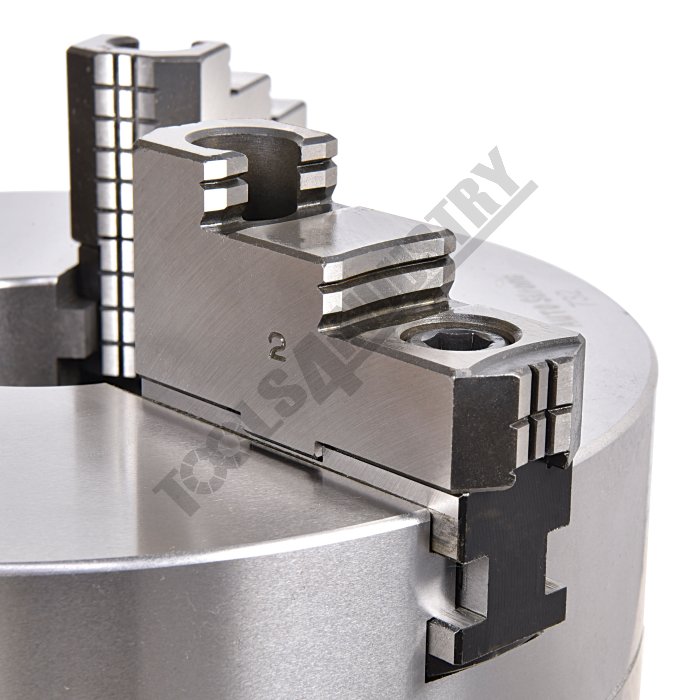

- 2 Piece hard jaws could be used as internal jaws and external jaws
- Meehanite chuck body suitable for high speed (Max. 1800rpm)
- Optional bolt on soft jaws are available, Order Code: C7021
Specifications
- Compare 14 Products
- ORDER CODE
- Chuck Sizemm
- Camlock
- Outside Jawmm
- Inside Jawmm
- Speedrpm

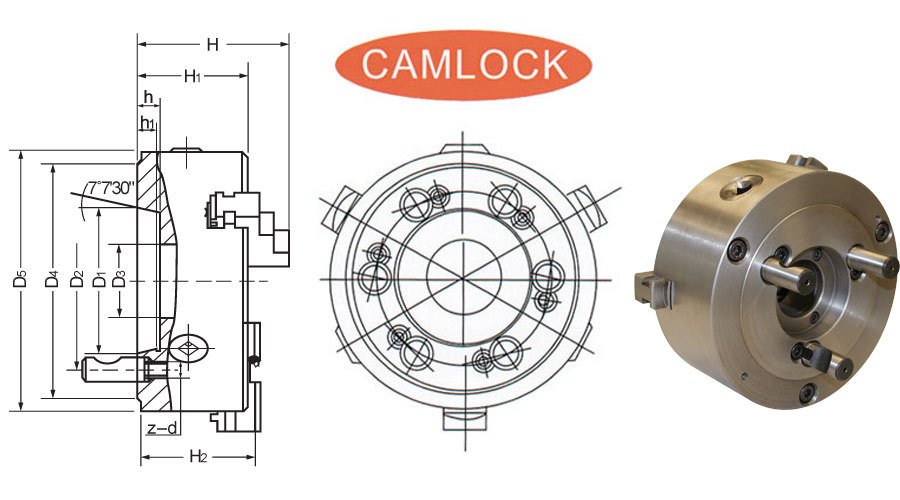

- D1mm
- D2mm
- D3mm
- Hmm
- H1mm
- hmm
- Nett Weightkg
- C7028
- Ø250
- D1-6
- 11-220
- 70-210
- 1800
- 106.375
- ~
- 76
- 136.8
- 86
- 17
- 29.5
- C7031
- Ø306
- D1-8
- 15-300
- 90-290
- 1800
- 139.719
- ~
- 103
- 165.3
- 107.5
- 18
- 47
- C263
- Ø250
- D1-6
- 6 - 110
- 90 - 250
- 1600
- 106.3
- 133.4
- 80
- 120
- 80
- 5
- 26
- C264
- Ø250
- D1-8
- 6 - 110
- 90 - 250
- 1600
- 139
- 172
- 80
- 120
- 80
- 5
- 33
- C269
- Ø315
- D1-8
- 11.5 - 165
- 110 - 320
- 1200
- 260
- 285
- 100
- 136
- 90
- 6
- 60
- C2695
- Ø400
- D1-8
- 11.5 - 210
- 110 - 400
- 1000
- 139.72
- 171.4
- 130
- 191.5
- 118
- 18
- 81
- C270
- Ø400
- D1-11
- 11.5 - 210
- 110 - 400
- 1000
- 196.87
- 235
- 135
- 191.5
- 118
- 18
- 90
- C2706
- Ø500
- D1-11
- 11.5 - 210
- 150 - 500
- 800
- 196.87
- 235
- 190
- 222
- 135
- 20
- 155
- C260
- Ø160
- D1-4
- 3 - 55
- 55 - 145
- 2500
- 130
- 142
- 40
- 95
- 65
- 5
- 9
- C7064
- Ø160
- D1-4
- 3 - 64
- 50 - 160
- 3000
- 63.52
- 82.6
- 42
- 105.5
- 81.5
- 13
- 10
- C262
- Ø200
- D1-4
- 4 - 85
- 65 - 200
- 2000
- 63.52
- 180
- 50
- 109
- 75
- 5
- 18
- C2625
- Ø200
- D1-5
- 4 - 85
- 65 - 200
- 2000
- 165
- 104.8
- 50
- 109
- 75
- 5
- 18.5
- C7025
- Ø200
- D1-4
- 8-180
- 62-170
- 2000
- 63.513
- ~
- 53
- 119.4
- 77.2
- 13
- 18.5
- C7026
- Ø200
- D1-5
- 8-180
- 62-170
- 2000
- 82.563
- ~
- 55
- 119.4
- 77.2
- 16
- 18
| ORDER CODE | Ø250 |
|---|---|
| Chuck Sizemm | D1-6 |
| Camlock | 11-220 |
| Outside Jawmm | 70-210 |
| Inside Jawmm | 1800 |
| Speedrpm | 106.375 |
| D1mm | ~ |
| D2mm | 76 |
| D3mm | 136.8 |
| Hmm | 86 |
| H1mm | 17 |
| hmm | 29.5 |
| Nett Weightkg |
