| Code | C1054 |
|---|---|
| Model | 3MT x ER40 |
| Capacity | Ø3-Ø26mm |
| Weight (kg) | 1.3 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 1.3 |
| Dimensions (cm) | 19.5 x 5.4 x 5.1 |

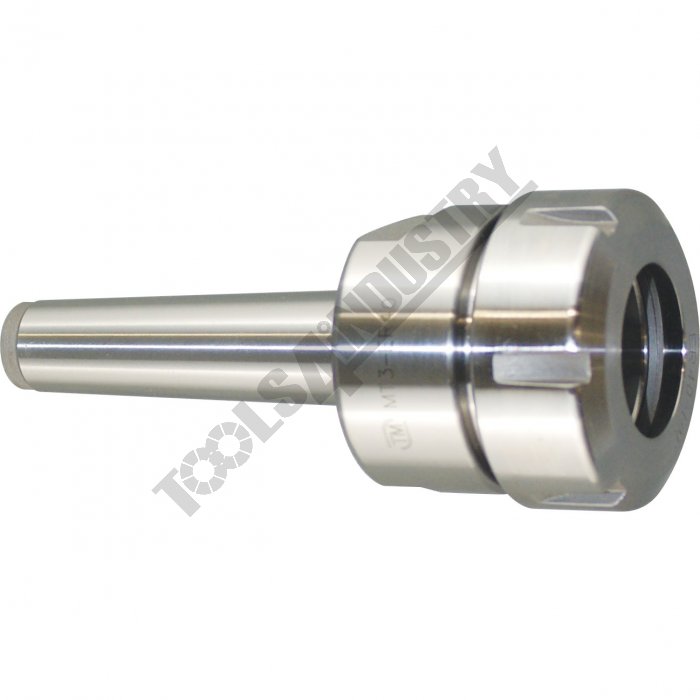

Collet Chuck - 3MT x ER40 3MT x ER40 Ø3-Ø26mm
Description
All ER collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 - 85% taper contact)Maintain a high level of accuracy.
Features
- Precision Ground
- Rated to 10,000rpm
Specifications
- Compare 16 Products
- ORDER CODE
- Collet Type
- Maximum Capacitymm

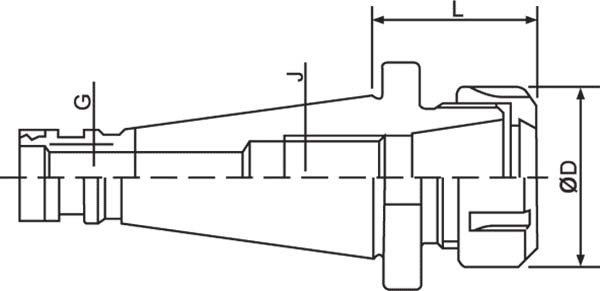

- Taper (J)
- Draw Bar (G)
- Lmm
- ØDmm
- Nett Weightkg
- C1054
- ER40
- 26
- 3MT
- 1/2" Whitworth
- 70
- 63
- 1.3
- C1056
- ER32
- 20
- 4MT
- M16
- 50
- 50
- 0.9
- C110
- ER32
- 20
- NT30
- M12 x 1.75
- 55
- 50
- 0.6
- C112
- ER32
- 20
- NT40
- M16 x 2.0
- 50
- 50
- 1.0
- L9300
- 20 Piece
- -
- BT40
- -
- -
- -
- -
- L9300
- 20 Piece
- -
- BT40
- -
- -
- -
- -
- M9445
- ER16
- -
- BT40
- -
- 70
- -
- -
- M9446
- ER16
- -
- BT40
- -
- 100
- -
- -
- M9448
- ER25
- -
- BT40
- -
- 100
- -
- -
- M9449
- ER32
- -
- BT40
- -
- 70
- -
- -
- M9450
- ER32
- -
- BT40
- -
- 100
- -
- -
- C106
- ER32
- 20
- R8
- 7/16" x 20UNF
- 40
- 50
- 0.6
- C111
- ER40
- 26
- NT30
- M12 x 1.75
- 70
- 63
- 1.0
- C114
- ER40
- 26
- NT40
- M16 x 2.0
- 60
- 63
- 1.3
- C138
- ER40
- 26
- R8
- 7/16" x 20UNF
- 70
- 63
- 1.0
- C105
- ER32
- 20
- 3MT
- 1/2" Whitworth
- 50
- 50
- 0.6
| ORDER CODE | ER40 |
|---|---|
| Collet Type | 26 |
| Maximum Capacitymm | 3MT |
| Taper (J) | 1/2" Whitworth |
| Draw Bar (G) | 70 |
| Lmm | 63 |
| ØDmm | 1.3 |
| Nett Weightkg |
