Code	B8287
Model	DS-1500T-R500
Capacity	127mm CLR, Made from Steel
Weight (kg)	17.7
Weight (m³)	0.032
Weight (Freight)	17.7
Dimensions (cm)	46 x 32 x 22

BAILEIGH

1 Year Warranty

U.S.A

Product Brochure

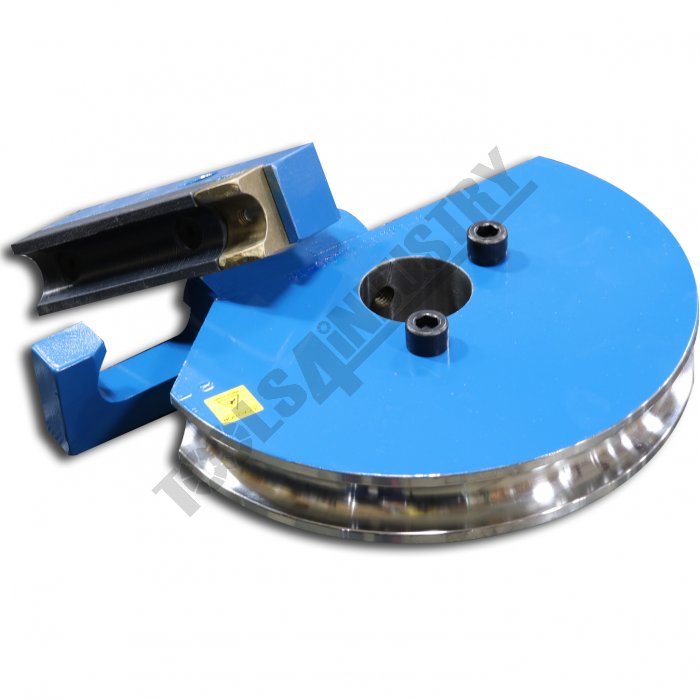

38.1mm OD x 180º Round Tube Die Set DS-1500T-R500 127mm CLR, Made from Steel

Description

38.1mm OD Round tube die set with a 127mm Center line Radius. Fits on all Baileigh Industrial rotary draw benders that accept drop on tooling (Not RDB-050). Center line radius is based on 2.1082mm wall thickness.

Features

38.1mm OD steel former with 127mm centre line radius for 180 degree bends
2.1082mm recommended minimum wall thickness
180 degree maximum bend angle
Set includes forming die, counter die, and hook sleeve

Videos

Specifications

Compare 20 Products
ORDER CODE
MODEL
Part Number
Type
Degree of Bend (Max)Deg
Sizeinch / mm
CLR - Centre Line Radiusinch / mm
Recommended Min. Wall Thicknessinch / mm
Material ODinch / mm
Suits Spigot Sizeinch / mm
Suits Machine Model
Nett Weightkg

B8287
DS-1500T-R500
~
Round Tube Die Set
180º
38.1 OD
127
2.1082
~
~
RDB Series (Not RDB-050)
17.7

B8305
DS-1750T-R600
~
Round Tube Die Set
180º
44.45 OD
152.4
2.413
~
~
RDB Series (Not RDB-050)
7

B8312
DS-2000T-R700
~
Round Tube Die Set
180º
50.8 OD
177.8
2.413
~
~
RDB Series (Not RDB-050)
40.9

3PL0125
~
~
Pipe Bender Former
~
1 1/4" NB
~
~
~
31.8
MPB-2SH Pipe Bender
~

3PL0150
~
~
Pipe Bender Former
~
1 1/2" NB
~
~
~
31.8
MPB-2SH Pipe Bender
~

T610
TBF-S253238
~
Round Tube Former Set
~
25.4, 31.8, 38.1 OD
~
~
~
~
TB-42,60,70 Pipe/Tube Benders
~

T610A
TBF-25
~
Round Tube Counter Former
~
25.4 OD
~
~
~
~
TB-42,60,70 Pipe/Tube Benders
~

T611
TBF-3238
~
Round Tube Counter Former
~
31.8, 38.1 OD
~
~
~
~
TB-42,60,70 Pipe/Tube Benders
~

T620
TBF-S51
~
Round Tube Former Set
~
50.8 OD x 1.6mm Wall
~
~
~
~
TB-60, 70 Pipe/Tube Benders
~

T620A
TBF-51
~
Round Tube Counter Former
~
51 OD
~
~
~
~
TB-60, 70 Pipe/Tube Benders
~

T614
PBF-1.5
~
Round Pipe Former Set
~
1-1/2" NB
~
~
~
~
TB-70 Pipe & Tube Bender
~

T615
PBF-2
~
Round Pipe Former Set
~
2" NB
~
~
~
~
TB-70 Pipe & Tube Bender
~

B8035
DS-180-0750P-R300
1021307
Round Pipe Die Set
180º
3/4" NB
3" / 76.2
~
~
~
RDB-050
9.5

B8036
DS-180-1000P-R400
~
Round Pipe Die Set
180º
1" NB
4" / 101.6
~
~
~
RDB-050
18.5

B8037
DS-180-1250P-R600
~
Round Pipe Die Set
180º
1-1/4" NB
6" / 152.4
~
~
~
RDB-050
25.7

B8038
DS-180-1500P-R600
~
Round Pipe Die Set
180º
1-1/2" NB
6" / 152.4mm
~
~
~
RDB-050
25.7

B8040
DS-180-0750T-R300
1003649
Round Tube Die Set
180º
19.05 OD
76.2
1.47
~
~
RDB-050
8.2

B8065
DS-180-2500T-R700
1003676
Round Tube Die Set
180º
63.5 OD
177.8
3.05
~
~
RDB-050
40

B8253
DS-1000T-R300
~
Round Tube Die Set
180º
25.4 OD
76.2
1.4732
~
~
RDB Series (Not RDB-050)
10

B8271
DS-1250T-R400
~
Round Tube Die Set
180º
31.75 OD
101.6
2.1082
~
~
RDB Series (Not RDB-050)
13.2

ORDER CODE	DS-1500T-R500
MODEL	~
Part Number	Round Tube Die Set
Type	180º
Degree of Bend (Max)Deg	38.1 OD
Sizeinch / mm	127
CLR - Centre Line Radiusinch / mm	2.1082
Recommended Min. Wall Thicknessinch / mm	~
Material ODinch / mm	~
Suits Spigot Sizeinch / mm	RDB Series (Not RDB-050)
Suits Machine Model	17.7
Nett Weightkg
