Code	B8035
Model	DS-180-0750P-R300
Capacity	3" (76.2mm) CLR, Made from Steel
Weight (kg)	9.5
Weight (m³)	0.017
Weight (Freight)	9.5
Dimensions (cm)	40 x 26 x 16

BAILEIGH

1 Year Warranty

U.S.A

Product Brochure B-Lube Brochure [99 KB] RDB-050 Tooling List [141 KB]

3/4" NB x 180º Round Pipe Die Set DS-180-0750P-R300 3" (76.2mm) CLR, Made from Steel

Description

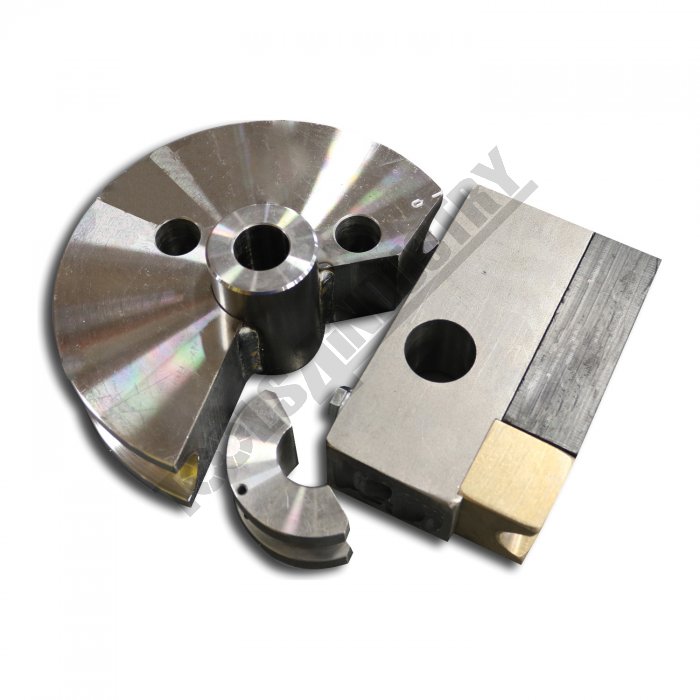

This is a complete die set, including 3/4" NB round pipe forming die, counter die and hook sleeve for making 180 degree bends on the RDB-050 manual tube bender.

Features

3/4" NB steel former with 3" (76.2mm) centre line radius for 180 degree bends
180 degree maximum bend angle
Set includes forming die, counter die, and hook sleeve

Specifications

Compare 20 Products
ORDER CODE
MODEL
Part Number
Type
Degree of Bend (Max)Deg
Sizeinch / mm
CLR - Centre Line Radiusinch / mm
Recommended Min. Wall Thicknessinch / mm
Material ODinch / mm
Suits Spigot Sizeinch / mm
Suits Machine Model
Nett Weightkg

B8035
DS-180-0750P-R300
1021307
Round Pipe Die Set
180º
3/4" NB
3" / 76.2
~
~
~
RDB-050
9.5

B8036
DS-180-1000P-R400
~
Round Pipe Die Set
180º
1" NB
4" / 101.6
~
~
~
RDB-050
18.5

B8037
DS-180-1250P-R600
~
Round Pipe Die Set
180º
1-1/4" NB
6" / 152.4
~
~
~
RDB-050
25.7

B8038
DS-180-1500P-R600
~
Round Pipe Die Set
180º
1-1/2" NB
6" / 152.4mm
~
~
~
RDB-050
25.7

B8040
DS-180-0750T-R300
1003649
Round Tube Die Set
180º
19.05 OD
76.2
1.47
~
~
RDB-050
8.2

B8065
DS-180-2500T-R700
1003676
Round Tube Die Set
180º
63.5 OD
177.8
3.05
~
~
RDB-050
40

B8253
DS-1000T-R300
~
Round Tube Die Set
180º
25.4 OD
76.2
1.4732
~
~
RDB Series (Not RDB-050)
10

B8271
DS-1250T-R400
~
Round Tube Die Set
180º
31.75 OD
101.6
2.1082
~
~
RDB Series (Not RDB-050)
13.2

B8287
DS-1500T-R500
~
Round Tube Die Set
180º
38.1 OD
127
2.1082
~
~
RDB Series (Not RDB-050)
17.7

B8305
DS-1750T-R600
~
Round Tube Die Set
180º
44.45 OD
152.4
2.413
~
~
RDB Series (Not RDB-050)
7

B8312
DS-2000T-R700
~
Round Tube Die Set
180º
50.8 OD
177.8
2.413
~
~
RDB Series (Not RDB-050)
40.9

3PL0125
~
~
Pipe Bender Former
~
1 1/4" NB
~
~
~
31.8
MPB-2SH Pipe Bender
~

3PL0150
~
~
Pipe Bender Former
~
1 1/2" NB
~
~
~
31.8
MPB-2SH Pipe Bender
~

T610
TBF-S253238
~
Round Tube Former Set
~
25.4, 31.8, 38.1 OD
~
~
~
~
TB-42,60,70 Pipe/Tube Benders
~

T610A
TBF-25
~
Round Tube Counter Former
~
25.4 OD
~
~
~
~
TB-42,60,70 Pipe/Tube Benders
~

T611
TBF-3238
~
Round Tube Counter Former
~
31.8, 38.1 OD
~
~
~
~
TB-42,60,70 Pipe/Tube Benders
~

T620
TBF-S51
~
Round Tube Former Set
~
50.8 OD x 1.6mm Wall
~
~
~
~
TB-60, 70 Pipe/Tube Benders
~

T620A
TBF-51
~
Round Tube Counter Former
~
51 OD
~
~
~
~
TB-60, 70 Pipe/Tube Benders
~

T614
PBF-1.5
~
Round Pipe Former Set
~
1-1/2" NB
~
~
~
~
TB-70 Pipe & Tube Bender
~

T615
PBF-2
~
Round Pipe Former Set
~
2" NB
~
~
~
~
TB-70 Pipe & Tube Bender
~

ORDER CODE	DS-180-0750P-R300
MODEL	1021307
Part Number	Round Pipe Die Set
Type	180º
Degree of Bend (Max)Deg	3/4" NB
Sizeinch / mm	3" / 76.2
CLR - Centre Line Radiusinch / mm	~
Recommended Min. Wall Thicknessinch / mm	~
Material ODinch / mm	~
Suits Spigot Sizeinch / mm	RDB-050
Suits Machine Model	9.5
Nett Weightkg
