| Code | B044 |
|---|---|
| Model | UB-100H |
| Capacity | 100 x 7mm |
| Weight (kg) | 38 |
| Weight (m3) | 0.060 |
| Weight (Freight) | 38 |
| Dimensions (cm) | 44 x 33 x 41 |

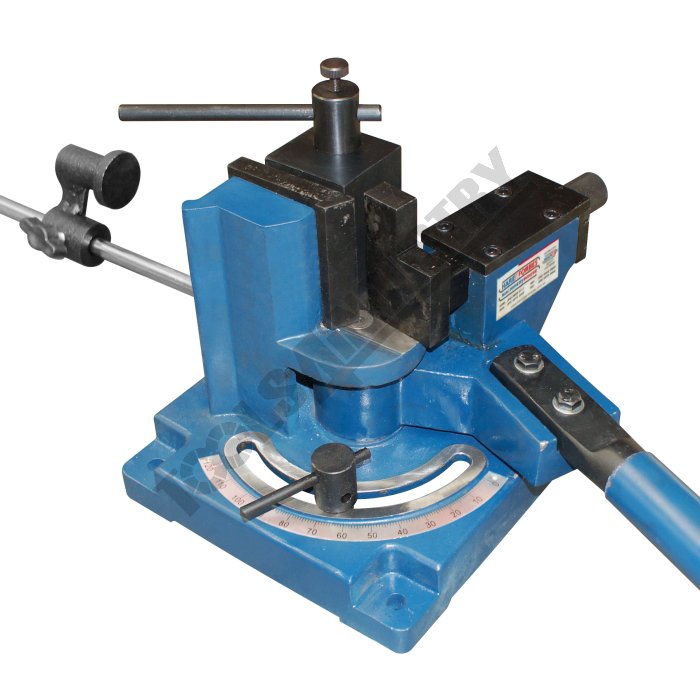

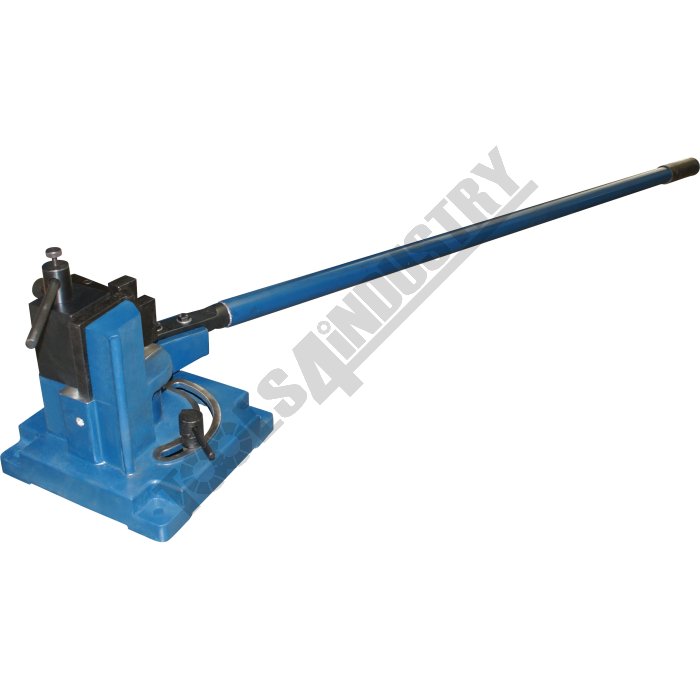

Industrial Manual Bar Bender UB-100H 100 x 7mm
Description
For cold or hot bending of flat, round, and square steelFeatures
- COLD BENDING - Flat 100x7mm, Square 20x20mm, Round Ø20mm, Angle Steel 75x8mm (only with pre-notching)
- HOT BENDING - Flat 100x12mm, Square 22x22mm, Round Ø22mm, Angle Steel 100x12mm (only with pre-notching)

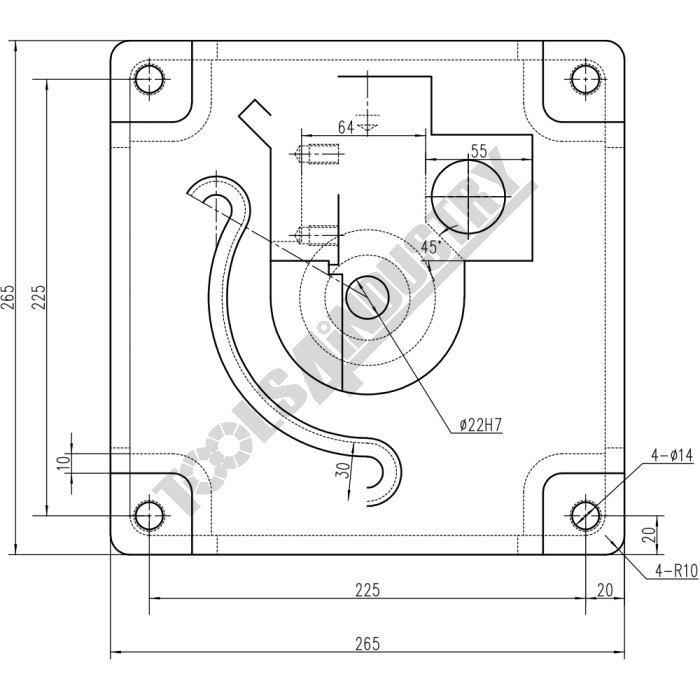

- Mount to work bench with 4 mounting holes for sturdy operation
- Adjustable bending stop with angle scale up to 120°
- Adjustable material length stop for repeatability
- Eccentric quick action cam lever material clamp
- Wide supporting face ensuring safe and reliable operation
Specifications
- Compare 2 Products
- ORDER CODE
- MODEL
- Flat Bar Capacity - Mild Steelmm
- Square Bar Capacity - Mild Steelmm
- Round Bar Capacity - Mild Steelmm

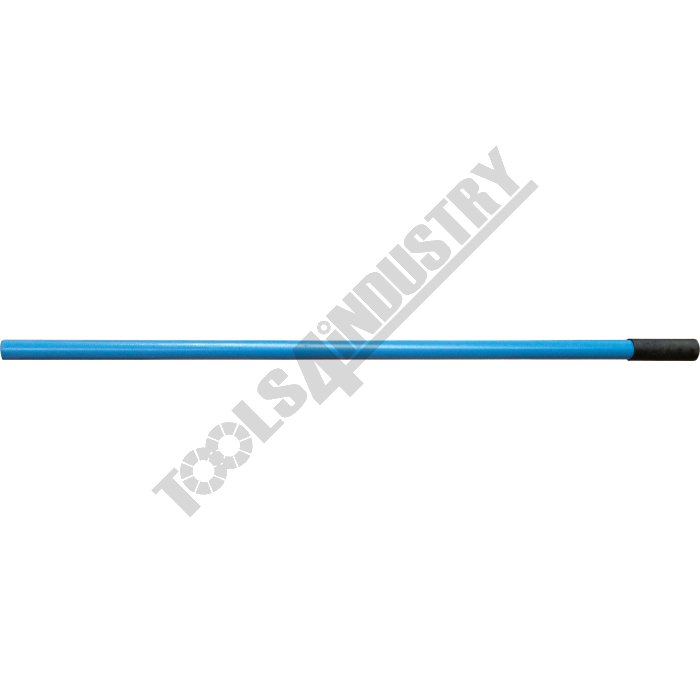

- Bending Lever Lengthmm
- Nett Weightkg
| ORDER CODE | UB-100H |
|---|---|
| MODEL | 100 x 7 60 x 8 40 x 10 |
| Flat Bar Capacity - Mild Steelmm | 20 x 20 |
| Square Bar Capacity - Mild Steelmm | Ø20 |
| Round Bar Capacity - Mild Steelmm | 1500 |
| Bending Lever Lengthmm | 45 |
| Nett Weightkg |
