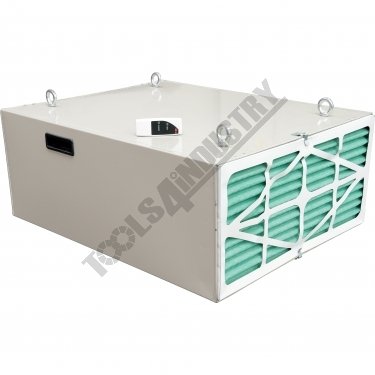

AP-12 Two Stage Air Filtration Unit 1044cfm Air Flow Capacity

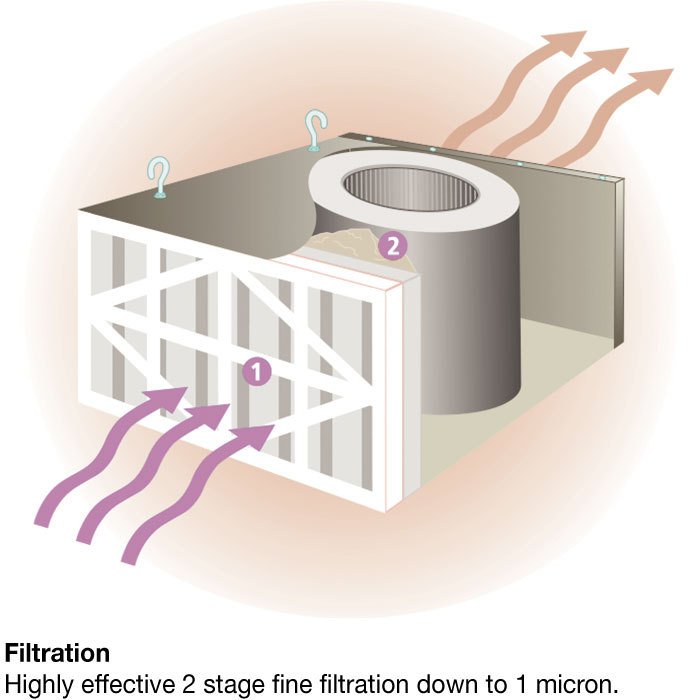

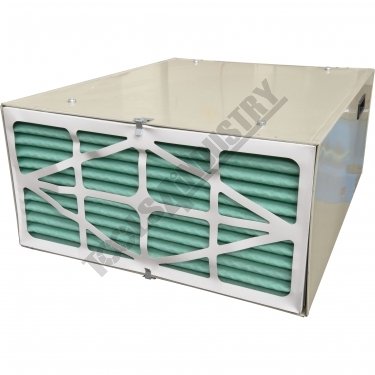

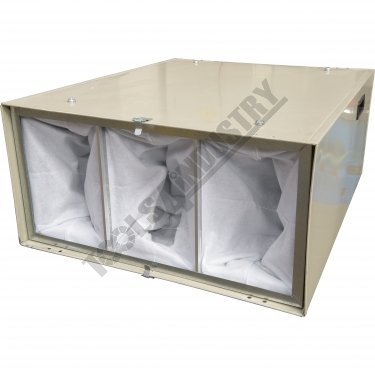

With a powerful 150W motor the AP-12 is great for home or commercial workshops. The air passes through a 2 stage filter system, with the pleated pre-filter firstly captures 98% of all particles at 5 microns in size and 85% of all particles 1 micron in size when it passes through the second stage filter.

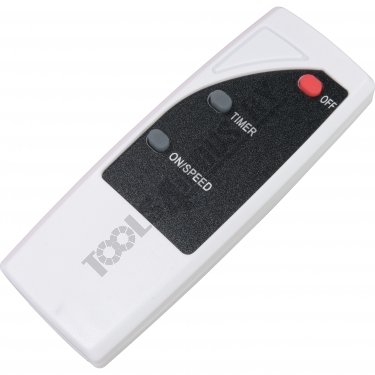

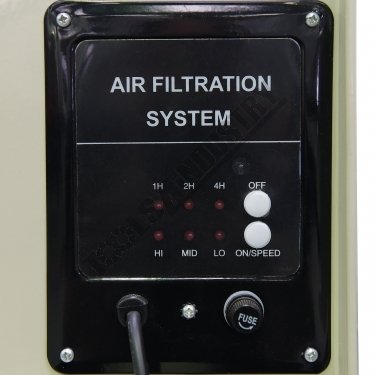

The remote control unit has three settings for the motor speed (High-1044CFM @ 69dB, Medium-702CFM @ 67dB, Low-556CFM @ 62dB) and three different time settings of 1 hour, 2 hours and 4 hours, which can be used to clear the workshop after work has finished for the day.


  • 1044cfm air flow capacity
  • Remote control ON/OFF
  • Two stage air filter
  • Filtering 98% of all particles 5 microns in size and 85% of all particles 1 micron in size
  • Quiet running with 3 x motor speeds (High-1044CFM @ 69dB, Medium-702CFM @ 67dB, Low-556CFM @ 62dB)
  • 3 x timer settings (1Hr, 2Hr , 4Hr)

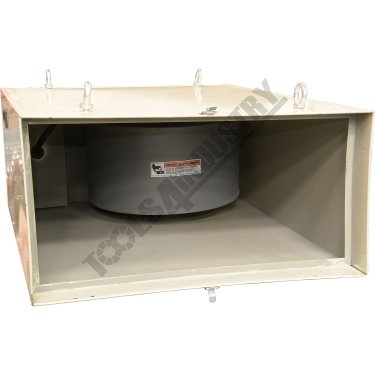

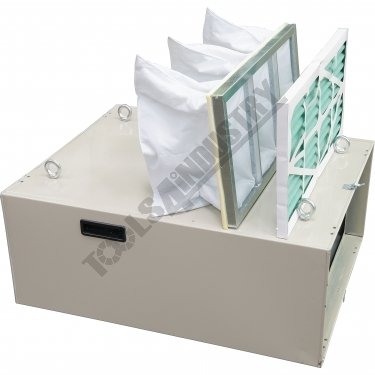

  • Easy removal to clean filter element
  • Designed for ceiling mount

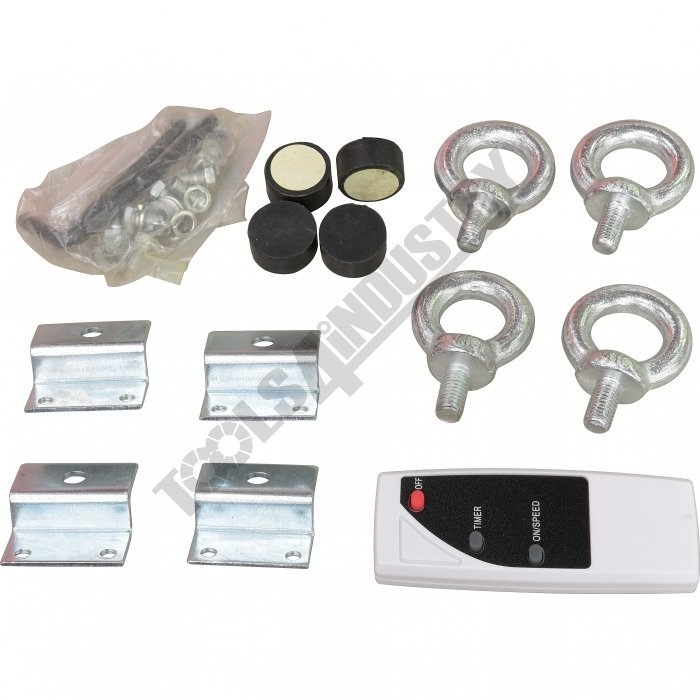

  • Flange brackets for wall or ceiling mounting
  • Eye bolts for mounting to ceiling rafters
  • Rubber feet for placing unit on workbench


MODEL2 Stage
Filtration Type1
Filtration ParticleMicron1044
Air Flow CapacityCFM62 ~ 69
Noise LeveldB300
Room Volume Efficiency150 / 0.2
Motor PowerW / hp240 / 10
Voltage / AmperageV / amp610 x 770 x 350
Floor Space (W x D x H)mm820 x 670 x 360
Shipping Dimensions (L x W x H)mm27
Nett Weightkg
