| Code | W2724 |
|---|---|
| Model | MMF-6L |
| Capacity | High Volume up to 6000 m3/h Air Filtering Capacity |
| Weight (kg) | 1240 |
| Weight (m3) | 9.005 |
| Weight (Freight) | 2,998.665 |
| Dimensions (cm) | 165 x 185 x 295 |

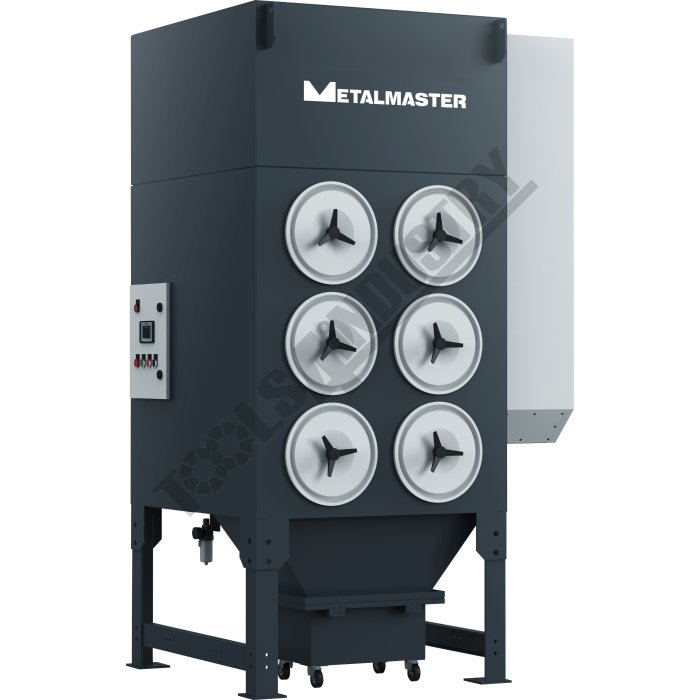

Laser Fume Extraction MMF-6L High Volume up to 6000 m3/h Air Filtering Capacity
Description
The Metalmaster Fume Extraction Units are designed to keep your machine and workshop clean by removing harmful dust and particles. Specifically designed to work with laser cutting machines, these advanced dust collectors effectively capture and filter out the tiny particles created during the laser cutting process.The filter is equipped with automatic jet pulse cleaning so the system automatically cleans itself.
Features
- High Volume high-efficiency filtration system
- Intelligent Control System with 4.3" Touch Screen
- Robust design
- Designed specifically for laser cutting
- Siemens motor, ultra-high negative pressure fan
- Supports remote start from Laser machine
Optional Accessories
- Air Ducting to suit your installation
Specifications
- Compare 5 Products
- ORDER CODE
- MODEL
- Extraction Arm/Hose LengthMetre
- Extraction Arm Diametermm
- Air Flowm3/h
- Filtering Aream2
- Inlet Sizemm
- Filter Type
- Filtration Efficiency
- Collector CapacityL
- Voltage / AmperageV / A
- Motor PowerkW
- Compressed Air RequirementsMpa
- Air consumptionm3/min
- Main Unit Size (w x l x h)mm
- Nett Weightkg
- W2724
- MMF-6L
- ~
- ~
- 6000
- 120
- 300
- Ahlstrom
- 99.99%
- 50
- 415 / 15
- 7.5
- 0.6
- 0.32
- 1580 x 1420 x 2820
- 900
- W2725
- MMF-8L
- ~
- ~
- 9000
- 166
- 300
- Ahlstrom
- 99.99%
- 90
- 415 / 20
- 11
- 0.6
- 0.32
- 1470 x 2220 x 2580
- 1200
- W2726
- MMF-12L
- ~
- ~
- 10000
- 240
- Optional
- Ahlstrom
- 99.99%
- 120
- 415 / 32
- 15
- 0.6
- 0.32
- 2080 x 2220 x 2760
- 1800
- W2723
- MMF-4L
- ~
- ~
- 4000
- 82
- 250
- Ahlstrom
- 99.99%
- 45
- 415 / 10
- 5.5
- 0.6
- 0.32
- 1380 x 1350 x 2200
- 700
- W2723E
- MMF-4LEX
- ~
- ~
- 4000
- 40
- 250
- Ahlstrom
- 99.99%
- 45
- 415 / 15
- 5.5
- 0.6
- 0.32
- 1363 x 1348 x 2295
- 700
| ORDER CODE | MMF-6L |
|---|---|
| MODEL | ~ |
| Extraction Arm/Hose LengthMetre | ~ |
| Extraction Arm Diametermm | 6000 |
| Air Flowm3/h | 120 |
| Filtering Aream2 | 300 |
| Inlet Sizemm | Ahlstrom |
| Filter Type | 99.99% |
| Filtration Efficiency | 50 |
| Collector CapacityL | 415 / 15 |
| Voltage / AmperageV / A | 7.5 |
| Motor PowerkW | 0.6 |
| Compressed Air RequirementsMpa | 0.32 |
| Air consumptionm3/min | 1580 x 1420 x 2820 |
| Main Unit Size (w x l x h)mm | 900 |
| Nett Weightkg |
