| Code | W1093 |
|---|---|
| Model | VEGAVIEW 2.5 1006.600 |
| Capacity | Suits Mig, Tig, Arc, Plasma & Oxy-Gas |
| Weight (kg) | 2 |
| Weight (m3) | 0.091 |
| Weight (Freight) | 30.303 |
| Dimensions (cm) | 55 x 55 x 30 |

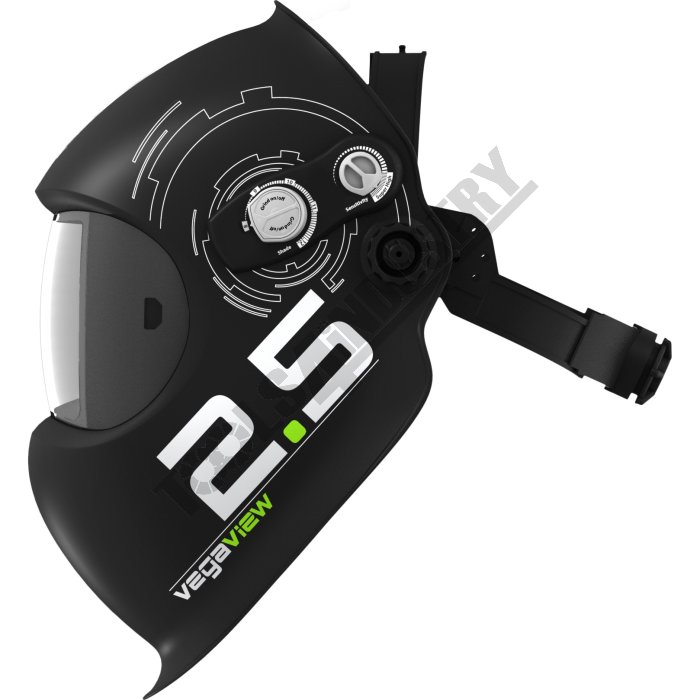

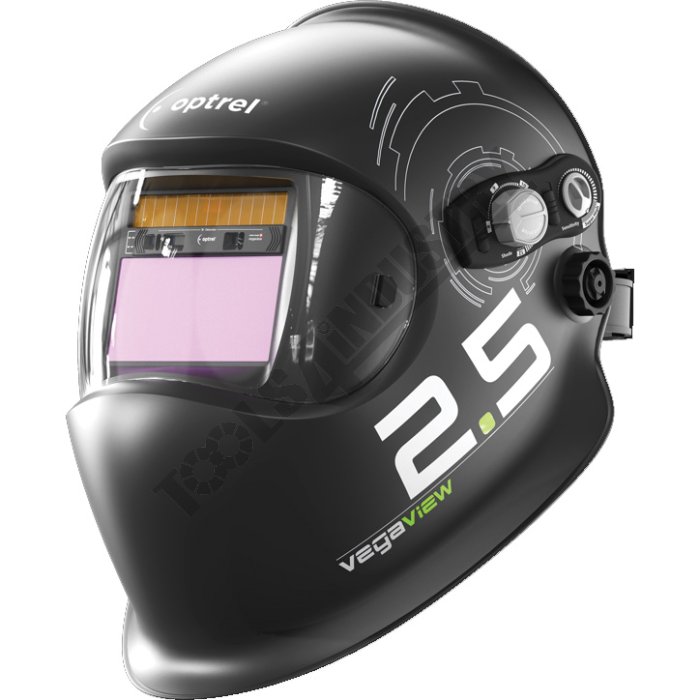

Auto Darken Welding Helmet - (2.5) 8 ~ 12 Shade VEGAVIEW 2.5 1006.600 Suits Mig, Tig, Arc, Plasma & Oxy-Gas
Description
The Vegaview 2.5 opens up a whole new visual experience to you in light state. The much brighter view of your working environment increases both safety and efficiency in the workplace.Thanks to Optrel’s latest optic technology, you can enjoy a detailed and true-colour view of the welding process at shade levels 8-12.
Bright. Brighter. Vegaview.
The Optrel Vegaview 2.5 lets the welders most desired wish come true: bright view. With its unrivaled brightest ADF view with shade level 2.5 - Vegaview 2.5 improves the visibility of the welders environment by 400%! Compared with traditional auto-darkening welding helmets, Vegaview 2.5 sets the world record in the light state!
Thanks to a special UV/IR filter, the Vegaview 2.5 offers a real colour experience never seen before and finally brings colour into the world of welding.
Weighing only 482g (17oz), the Vegaview 2.5 is one of the lightest auto-darkening welding helmets available. Its ergonomic design minimises strain on the head and neck, ensuring comfort throughout the work day.
Fields of Application:
Electrode Welding (Stick Welding, SMAW)
MIG/MAG (GMAW)
GMAW High melting rate process
Flux Cored Wire Welding
TIG Welding (GTAW)
Plasma Arc Welding
Micro Plasma Arc Welding
Plasma Cutting
Gas Welding
Grinding
Features
- The Automatic Welding Helmet with World Record ADF.
- Shade Level 2.5 in Light State
- Shade Level Range 8 to 12
- Grind Mode with perfect View
- Optionally with PAPR System
- Made in Switzerland
Specifications
- Compare 10 Products
- ORDER CODE
- MODEL
- Viewing Areamm
- Cartridge Sizemm
- Arc SensorsNo.
- Light State
- Shade
- Shade Control
- Power On/off
- Sensitivity Control
- UV/IR Protection
- Helmet Power Supply
- Respirator Power Supply
- Switching Time Light To Dark
- Delay Time Dark To Light (Seconds)sec
- TIG Rated Minimumamp
- Grinding FunctionYes / No
- Inactive Shade (Grind/Off)
- Operating Temperature
- Storing Temperature
- Helmet Material
- Application Range
- Standard
- Total Weightgrams
- W1093
- VEGAVIEW 2.5 1006.600
- ~
- ~
- 3
- ~
- (2.5) 8 ~ 12
- Variable Shade Levels
- Fully Automatic
- Yes (Infinitely adjustable, Super High)
- Yes
- Solar Cell, Battery Change
Required
- ~
- 0.100 ms at room Temp
- 0.05 - 1.0s Adjustable
- ~
- Yes
- ~
- -10°C to +70°C / 14°F to 158°F
- -20°C to +80°C / -4°F to 176°F
- ~
- Mig, Tig, Arc Welding,
Plasma, Oxy Gas Welding
& Grinding Mode - CE, ANSI, complies with CSA
- ~
- W1098
- HELIX QUATTRO 1050.100
- 180°
- ~
- 5
- ~
- (3/4) 4 ~ 14
- Variable Shade Levels
- Fully Automatic
- Yes (Infinitely adjustable, Super High)
- Yes
- Solar Cell, Battery Change
Required
- ~
- ~
- FadeTronic
- ~
- Yes
- ~
- ~
- ~
- ~
- Mig, Tig, Arc Welding,
Plasma & Grinding Mode
- CE, ANSI, complies with CSA
- ~
- Z00894AC
- DW7000XL
- 100 x 50
- ~
- ~
- ~
- 5 ~ 13
- ~
- Fully Automatic
- ~
- ~
- Solar Cell, Battery Change
Required
- ~
- 0.1ms
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- Mig, Tig, Arc Welding,
& Plasma
- ~
- ~
- W1088
- SV4000
- 115 x 85
- ~
- ~
- ~
- 4 ~ 13
- ~
- Fully Automatic
- ~
- ~
- Solar Cell, Battery Change
Required
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- Mig, Tig, Arc Welding,
& Plasma
- ~
- ~
- W1097
- OT20402 Clearmaxx Std Grinding Helmet
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- TIG MIG MMA, Plasma
- ~
- ~
- W1096
- OT20542 Clearmaxx Grinding Helmet
- version PAPR
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- TIG MIG MMA, Plasma
- ~
- ~
- W1094
- Clearmaxx Grinding Helmet & Swiss Air Kit
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- W1094A
- Swiss Air Half-Mask Replacement - 4160.500
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- W011
- WT350
- 100 x 67
- ~
- 4
- ~
- 9 ~ 13
- ~
- Fully Automatic
- Low - High
- ~
- Solar Cell, Battery Change
Required
- ~
- ~
- 0.15 ~ 0.80
- 2
- Yes
- ~
- -5 C to +55 C
- -10 C to +65 C
- ~
- Stick, Mig, Tig, Arc Welding,
& Grinding Mode
- Lens: AS/NZS1338.1, EN379, ANSI Z87.1,
CSA Z94.3
Shell: AS/NZS1337.1 High Impact EN 175 B,
ANSI Z87.1, CSA Z94.3
- ~
- W1091
- E684x7
- 100 x 50
- ~
- 3 with variable angle detect
- ~
- 5 ~ 13
- Variable Shade Levels
- Fully Automatic
- Yes (Super High)
- Yes
- Solar Cell, Battery Change
Required
- ~
- 0.170ms
- 0.1 - 2.0
- ~
- Yes
- ~
- -10°C to + 70°C
- -20°C to + 70°C
- ~
- Mig, Tig, Arc Welding,
Plasma & Grinding Mode
- CE, ANSI, EAC, AS/NZS
complies with CSA Z94.3
- ~
| ORDER CODE | VEGAVIEW 2.5 1006.600 |
|---|---|
| MODEL | ~ |
| Viewing Areamm | ~ |
| Cartridge Sizemm | 3 |
| Arc SensorsNo. | ~ |
| Light State | (2.5) 8 ~ 12 |
| Shade | Variable Shade Levels |
| Shade Control | Fully Automatic |
| Power On/off | Yes (Infinitely adjustable, Super High) |
| Sensitivity Control | Yes |
| UV/IR Protection | Solar Cell, Battery Change Required |
| Helmet Power Supply | ~ |
| Respirator Power Supply | 0.100 ms at room Temp |
| Switching Time Light To Dark | 0.05 - 1.0s Adjustable |
| Delay Time Dark To Light (Seconds)sec | ~ |
| TIG Rated Minimumamp | Yes |
| Grinding FunctionYes / No | ~ |
| Inactive Shade (Grind/Off) | -10°C to +70°C / 14°F to 158°F |
| Operating Temperature | -20°C to +80°C / -4°F to 176°F |
| Storing Temperature | ~ |
| Helmet Material | Mig, Tig, Arc Welding, Plasma, Oxy Gas Welding & Grinding Mode |
| Application Range | CE, ANSI, complies with CSA |
| Standard | ~ |
| Total Weightgrams |
