| Code | W07864 |
|---|---|
| Model | WT16-SB200 |
| Capacity | 200 x 30 x 12mm |
| Weight (kg) | 0.2 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 0.2 |
| Dimensions (cm) | 15 x 3 x 1.2 |

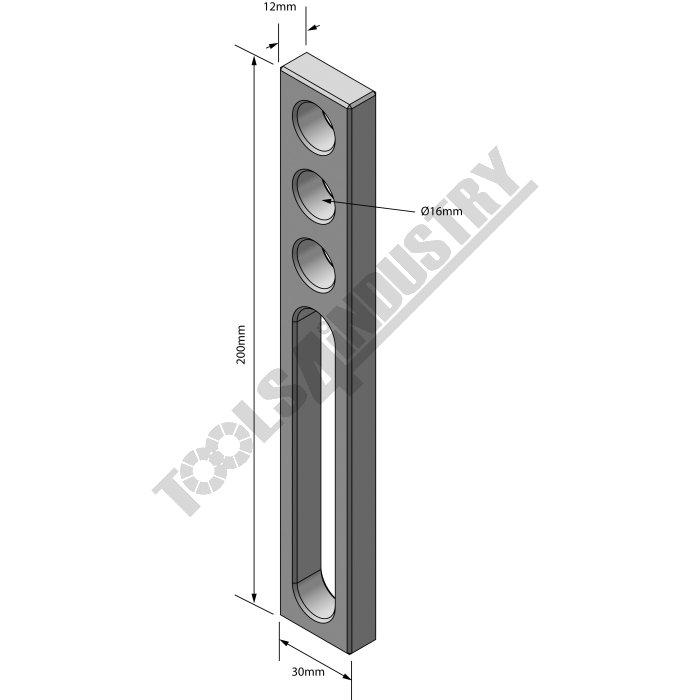

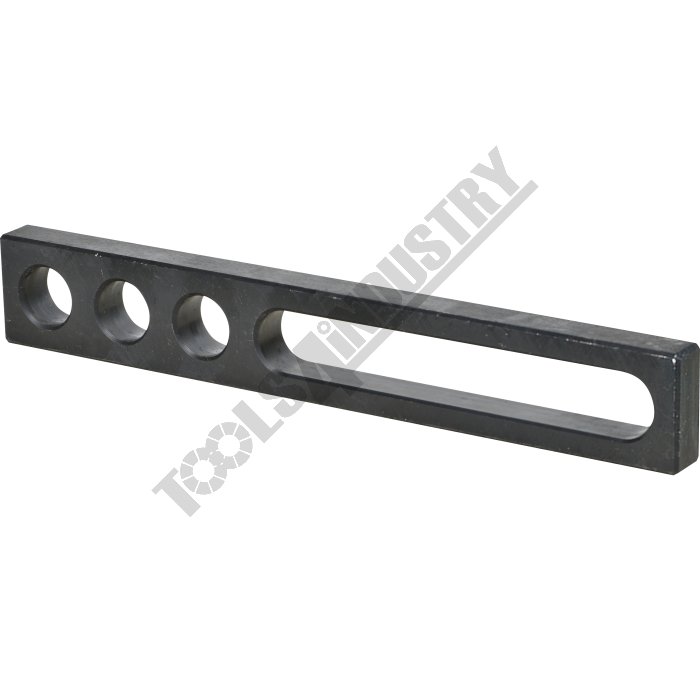

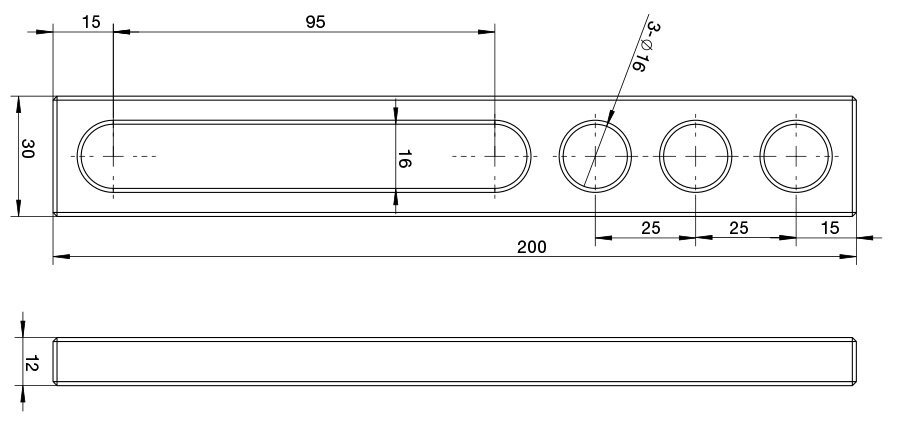

Straight Bar Stop WT16-SB200 200 x 30 x 12mm
Description
These precision machined straight bar stop to use on any welding table with 16mm fixturing holes. They can be used as a stop, table extension or a platform to allow for infinite adjustments in fixturing.Features
- 16mm precision bored hole
- 12mm thick plate
Specifications
- Compare 8 Products
- ORDER CODE
- MODEL
- Hole DiameterØ
- Sizemm
- Number of HolesNo.
- Slot Lengthmm
- Nett Weightkg
- W07864
- WT16-SB200
- 16mm
- 200 x 30 x 12
- ~
- ~
- 0.20
- W08340
- WT28-SB100
- 28mm
- 100 x 50 x 25
- 2
- ~
- 0.63
- W08341
- WT28-SB150
- 28mm
- 150 x 50 x 25
- 0
- ~
- 0.65
- W08342
- WT28-SB225
- 28mm
- 225 x 50 x 25
- 1
- 128
- 1.13
- W08343
- WT28-SB300
- 28mm
- 300 x 50 x 25
- 3
- 128
- 1.65
- W07862
- WT16-SB115
- 16mm
- 115 x 30 x 12
- 1
- 76
- 0.15
- W07866
- WT16-SB300
- 16mm
- 300 x 30 x 12
- 6
- 111
- 1.6
- W07863
- WT16-SB150
- 16mm
- 150 x 30 x 12
- 1
- 111
- 0.20
| ORDER CODE | WT16-SB200 |
|---|---|
| MODEL | 16mm |
| Hole DiameterØ | 200 x 30 x 12 |
| Sizemm | ~ |
| Number of HolesNo. | ~ |
| Slot Lengthmm | 0.20 |
| Nett Weightkg |
