| Code | V311 |
|---|---|
| Capacity | 152mm Jaw Width |
| Weight (kg) | 28 |
| Weight (m3) | 0.013 |
| Weight (Freight) | 28 |
| Dimensions (cm) | 47 x 23 x 12 |

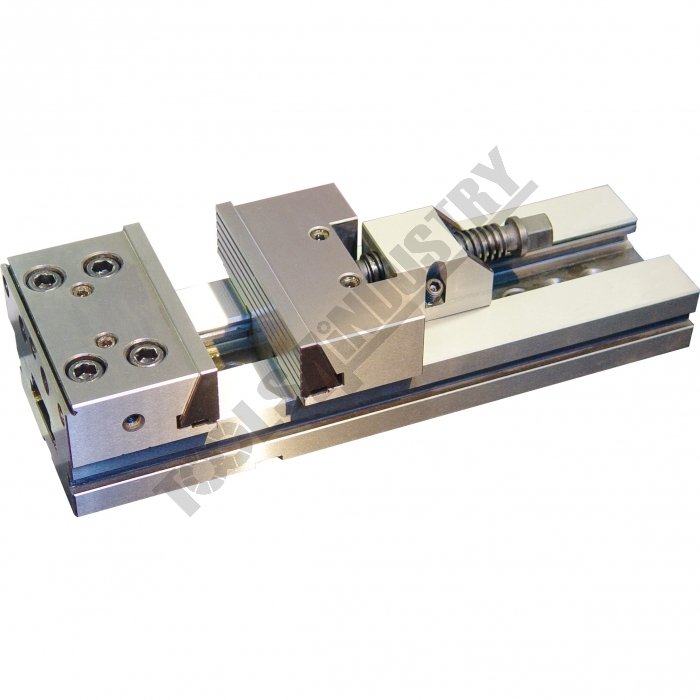

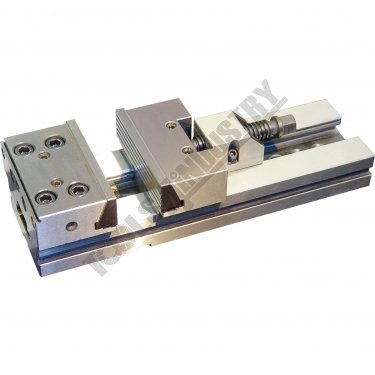

Modular Machine Vice 152mm Jaw Width
Description
Toolmaster vices are manufactured under rigid quality control. All Toolmaster vices are interchangeable and can be used as matched pairs.Features
- Hardened and ground steel to HRC60, with high precision
- Keyways are 16mm H7 and are toleranced giving perfect alignment and reducing set up time
- Space saving design allows for maximum use of clamping area

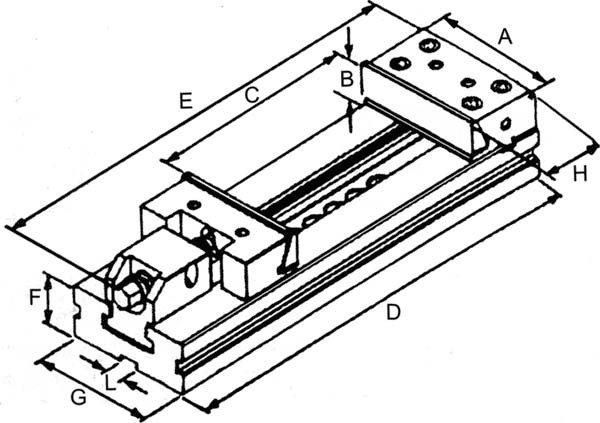

Specifications
- Compare 3 Products
- ORDER CODE
- A - Jaw Widthmm
- C - Jaw Openingmm
- B - Jaw Heightmm
- Dmm
- Emm
- Fmm
- Gmm
- Hmm
- Nett Weightkg
| ORDER CODE | 152 |
|---|---|
| A - Jaw Widthmm | 200 |
| C - Jaw Openingmm | 50 |
| B - Jaw Heightmm | 420 |
| Dmm | 500 |
| Emm | 50 |
| Fmm | 125 |
| Gmm | 90 |
| Hmm | 30 |
| Nett Weightkg |
