| Code | T906 |
|---|---|
| Capacity | M6 x 1.0mm |
| Weight (kg) | 0.04 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 0.04 |
| Dimensions (cm) | 5.3 x 5.7 x 2.3 |

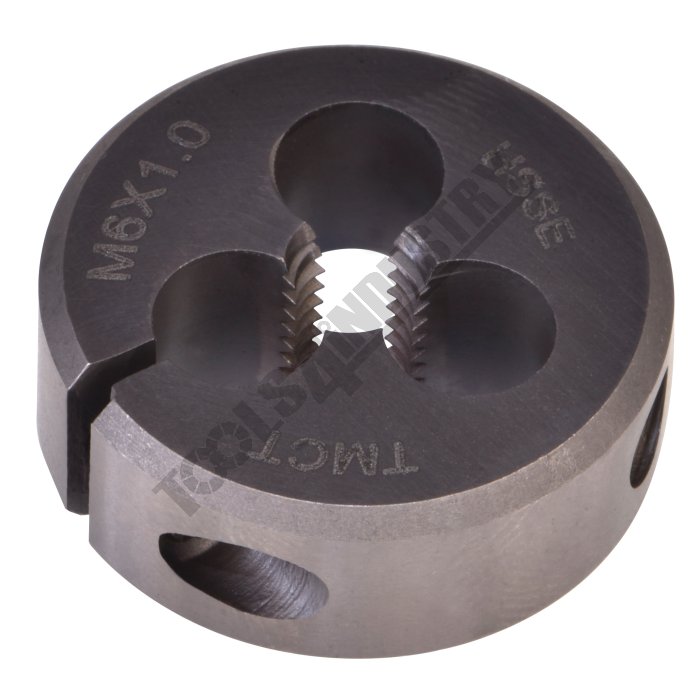

HSS Button Die - Metric M6 x 1.0mm
Description
Designed to fit a 1-inch die holder, this button die ensures reliable and efficient threading for various applications. Manufactured from M35 Grade High-Speed Steel (HSS) with 5% cobalt, this button die is designed for precision thread cutting in a wide range of tough materials. Suitable for use on mild steel, stainless steel, cast iron, and non-ferrous metals, it delivers durability and long-lasting performance. The TiCN (Titanium Carbonitride) ceramic coating enhances hardness and wear resistance, reducing friction and extending tool life.Features
- Manufactured from M35 Grade High-Speed Steel (HSS) with 5% cobalt for superior durability
- Suitable for thread cutting in mild steel, stainless steel, cast iron, and non-ferrous metals
- TiCN (Titanium Carbonitride) ceramic coating for improved hardness and wear resistance
- Reduces friction and heat buildup for extended tool life
- Provides precision cutting for clean and accurate threads
Specifications
- Compare 9 Products
- ORDER CODE
- Thread Type
- Size
- Outside Diametermm / inch
- Grade
- T906
- Metric
- M6 x 1.0mm
- 25.4 / 1"
- HSS
- T908
- Metric
- M8 x 1.25mm
- 25.4 / 1"
- HSS
- T910
- Metric
- M10 x 1.5mm
- 38.1 / 1-1/2"
- HSS
- T912
- Metric
- M12 x 1.75mm
- 38.1 / 1-1/2"
- HSS
- T916
- Metric
- M16 x 2.0mm
- 38.1 / 1-1/2"
- HSS
- T920
- Metric
- M20 x 2.5mm
- 38.1 / 1-1/2"
- HSS
- T903
- Metric
- M3 x 0.5mm
- 25.4 / 1"
- HSS
- T904
- Metric
- M4 x 0.7mm
- 25.4 / 1"
- HSS
- T905
- Metric
- M5 x 0.8mm
- 25.4 / 1"
- HSS
| ORDER CODE | Metric |
|---|---|
| Thread Type | M6 x 1.0mm |
| Size | 25.4 / 1" |
| Outside Diametermm / inch | HSS |
| Grade |
