Code	T872
Model	M603S20L
Capacity	#1-#5 + Left Hand Cobalt jobber drills: 2, 3, 4, 5.5, 7.5mm
Weight (kg)	1.36
Weight (m³)	0.003
Weight (Freight)	1.36
Dimensions (cm)	26 x 21 x 6

SUTTON TOOLS

Australia

Product Brochure

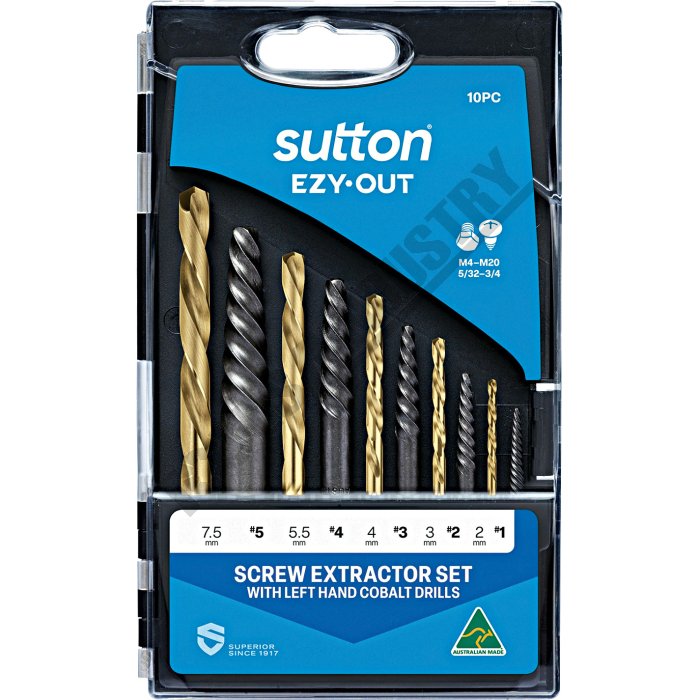

EZY-OUT - Screw Extractor Set - 10 piece M603S20L #1-#5 + Left Hand Cobalt jobber drills: 2, 3, 4, 5.5, 7.5mm

Description

Sutton Tools Screw Extractors or Easy Outs are designed to remove broken studs, bolts, socket screws and fittings.

Helpful Hint: Use recommended Sutton Tools drill size to pre-drill a pilot hole in the broken bolt prior to extracting.

Features

Aggressive left hand spiral for extra gripping power
Spiral flutes designed to embed themselves deeper, therefore as fastener resistance increases the extractor’s grip increases
Square end for hand operation in a variety of holders
Made from Carbon Steel
Suites M4-M20 (5/32” – 3/4") bolts

Includes

#1, #2, #3, #4 & #5 Screw Extractors
2, 3, 4, 5.5, 7.5mm Left Hand Cobalt jobber drills

Specifications

Compare 2 Products
ORDER CODE
Number of Pieces in SetNo.
Thread Extractor Range
Drill Size Required For Each Extractor

T872
10
#1, #2, #3, #4 & #5
2, 3, 4, 5.5, 7.5mm

T870
10
3/16" ~ 5/8" (M5 ~ M16)
1/8", 5/32", 3/16", 7/32"
1/4", 9/32", 5/16", 11/32"
3/8", 13/32"

ORDER CODE	10
Number of Pieces in SetNo.	#1, #2, #3, #4 & #5
Thread Extractor Range	2, 3, 4, 5.5, 7.5mm
Drill Size Required For Each Extractor
