| Code | S99246 |
|---|---|
| Model | DB160-86.800 |
| Capacity | 160 x 120mm x 800mm Long |
| Weight (kg) | 40 |
| Weight (m3) | 0.017 |
| Weight (Freight) | 40 |
| Dimensions (cm) | 92 x 13 x 14 |

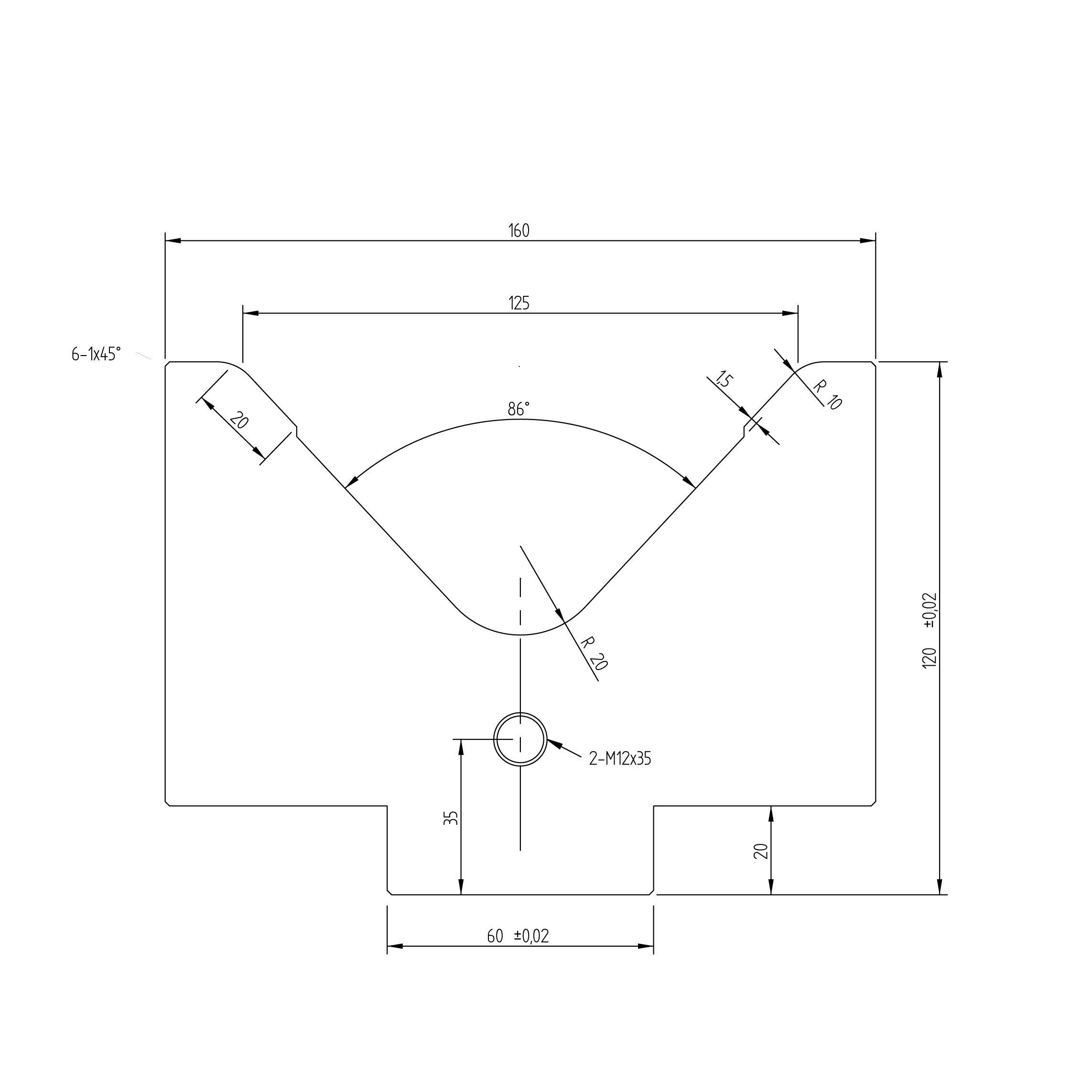

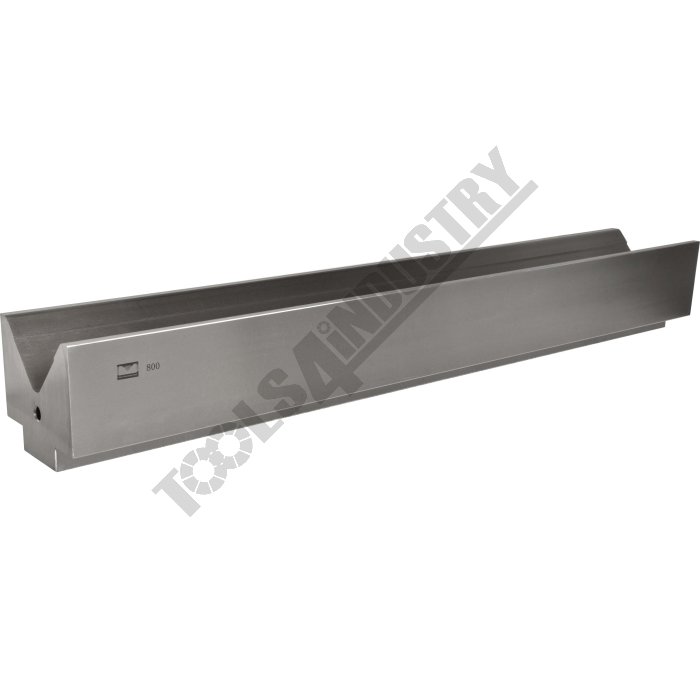

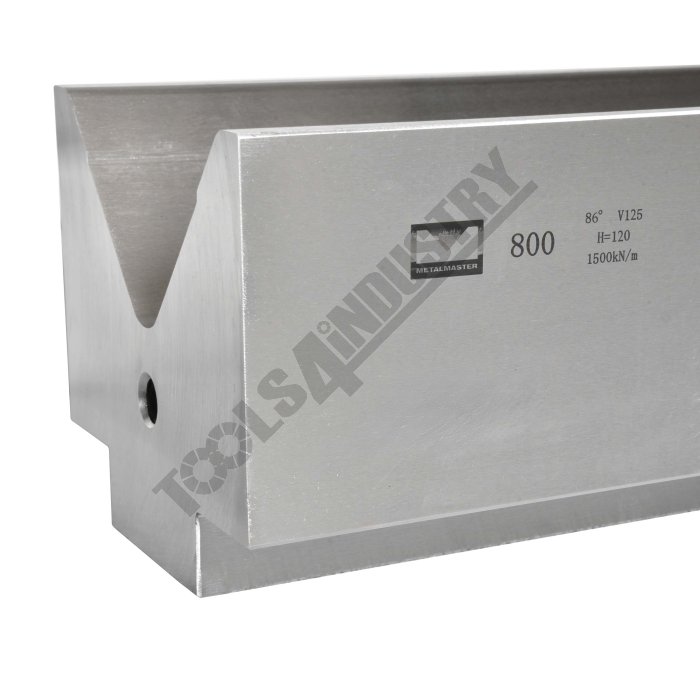

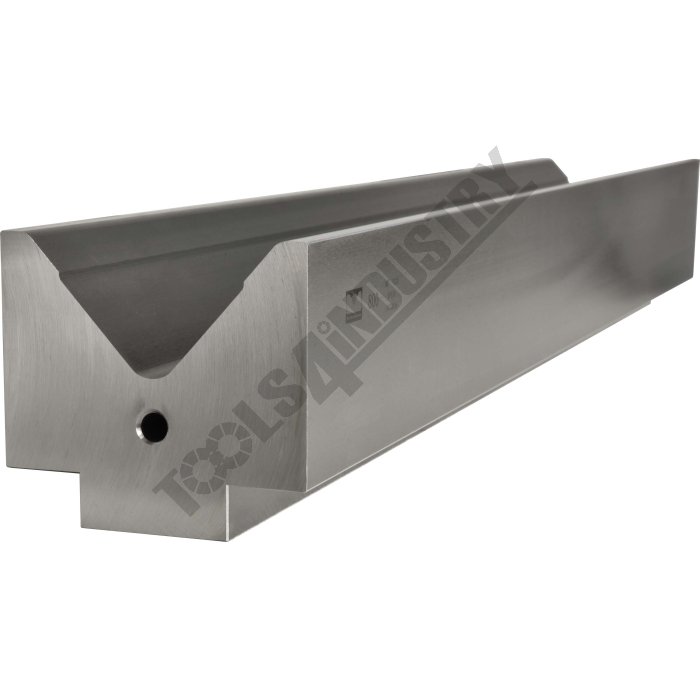

Dieblock Heavy Duty, Single V 125mm 86 Degrees DB160-86.800 160 x 120mm x 800mm Long
Description
Precision Heavy Duty Single V Dieblock made from chromium-molybdenum high strength steel and heat treated for long term durability.Designed to be used directly on a pressbrake with a narrow table suitable to hold 60mm tooling or can be used universally on any wide table pressbrake by using a die rail.
Suits: 60mm Die Rail
S996B - 3200mm Long die rail
S997B - 4000mm Long die rail
Features
- 1 x 86 Degree V 125mm
Specifications
- Compare 32 Products
- Order Code
- Model
- Type
- Sizemm
- S99246
- DB160-86.800
- Die Block
- 160 x 120 x 800
- S996B
- DR60-3200
- Die Rail
- 60 x 3200
- S996A
- DB60-3200
- Die Block
- 60 x 85 x 3200
- S997B
- DR60-4000
- Die Rail
- 60 x 4000
- S977A
- DB60-4000
- Die Block
- 60 x 85 x 4000
- S9927
- DB75-3200
- Die Block
- 75 x 3200
- S993
- DB95-3200
- Die Block
- 95 x 3200
- S993A
- DB95-4000
- Die Block
- 95 x 4000
- S994B
- Die Block
- DB130-1000
- 130 x 1000
- S994
- Die Block
- DB130-3200
- 130 x 3200
- S994A
- DB130-4000
- Die Block
- 130 x 4000
- S995
- DB150-4000
- Die Block
- 150 x 4000
- S988
- QA-CL
- Quick Action Int. Clamps
- ~
- S989
- TP35-116.800
- 35º Top Punch
- 116 x 800
- S989S
- TP35-116.800S
- 35º Top Punch
- 116 x 800 In Segments Of
10,20,40,50,100,200,365
- S990
- TP35-150.800
- 35º Top Punch
- 150 x 800
- S990S
- TP35-150.800S
- 35º Top Punch
- 150 x 800 In Segments Of
10,20,40,50,100,200,365
- S990F
- TP35-150.3200
- 35º Top Punch
- 150 x 3200
- S991
- TP86-150.800
- 86º Top Punch
- 150 x 800
- S991S
- TP86-150.800S
- 86º Top Punch
- 150 x 800 In Segments Of
10,20,40,50,100,200,365
- S991F
- TP86-150.3200
- 86º Top Punch
- 150 x 3200
- S9920
- TP86-150.800G
- 86º Top Punch Gooseneck
- 150 x 800
- S9920S
- TP86-150.800G
- 86º Top Punch Gooseneck - Segmented
- 150 x 800
- S996
- TP15-150.3200
- 15º Top Punch
- 150 x 3200
- S997
- TP15-150.4000
- 15º Top Punch
- 150 x 4000
- S99230
- DB60-60.800
- Die Block
- 60 x 800
- S99231
- DB60-60.800
- Die Block
- 60 x 800
- S99234
- DB60-86.800
- Die Block
- 60 x 800
- S99235
- DB60-86.800S
- Die Block
- 60 x 800
- S99240
- DB60-86.800
- Die Block
- 80 x 75 x 800
- S99242
- DB95-86.800
- Die Block
- 95 x 95 x 800
- S99244
- DB120-86.800
- Die Block
- 120 x 110 x 800
| Order Code | DB160-86.800 |
|---|---|
| Model | Die Block |
| Type | 160 x 120 x 800 |
| Sizemm |
