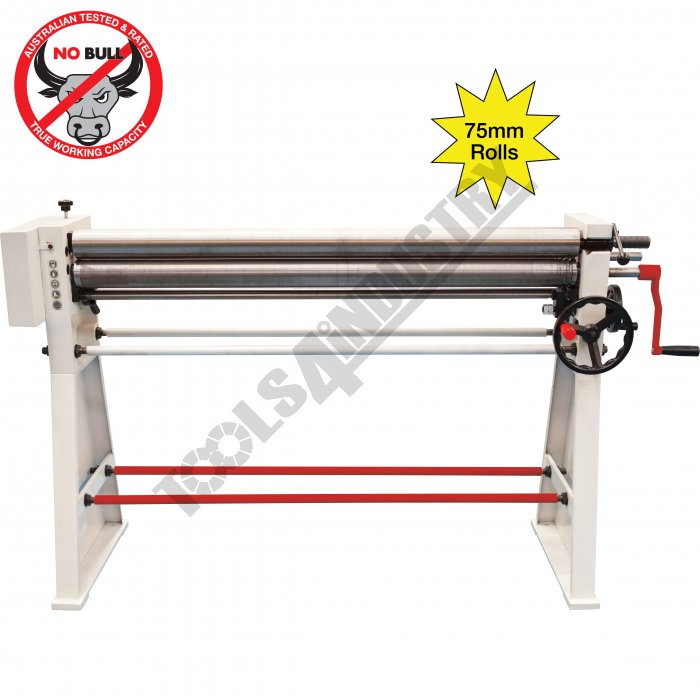

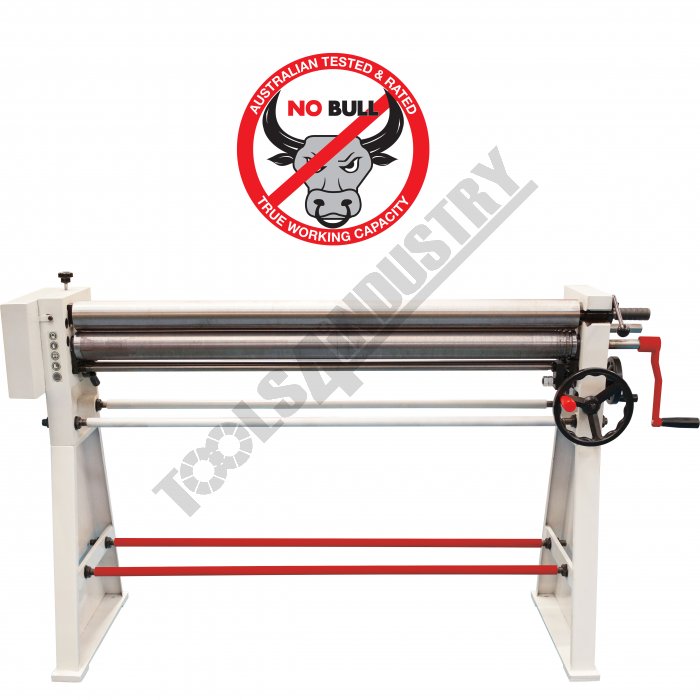

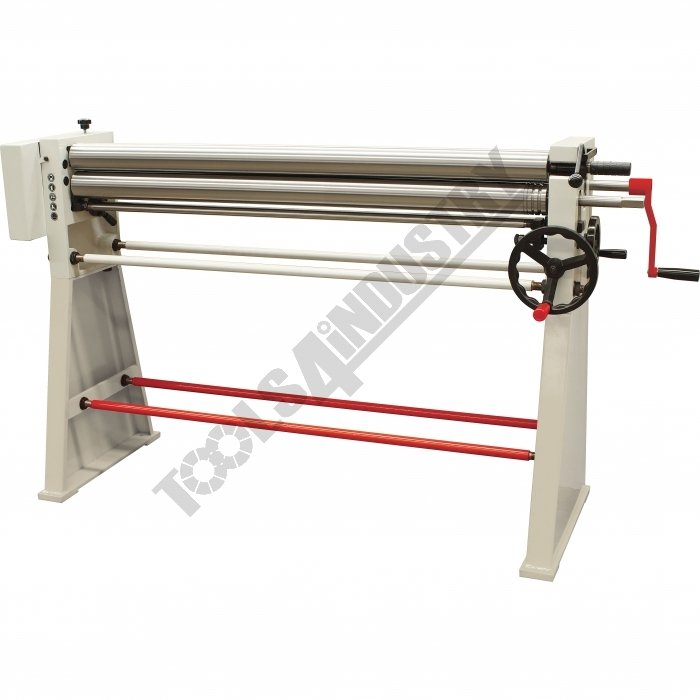

Manual Sheet Metal Curving Rolls SRG-50E 1250 x 1.6mm Mild Steel Capacity

Description

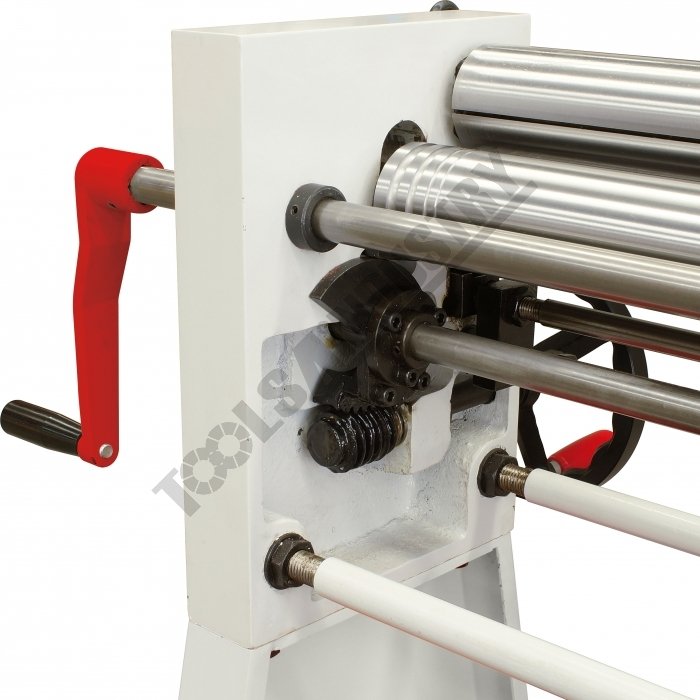

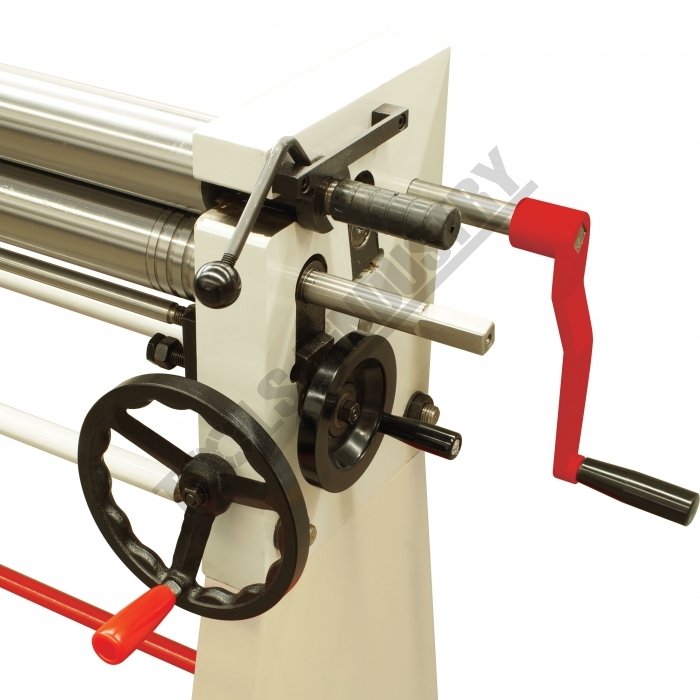

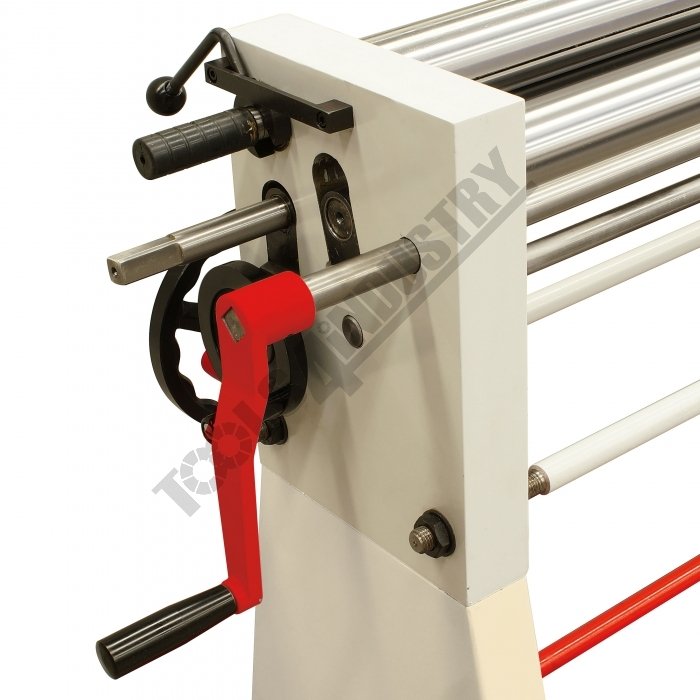

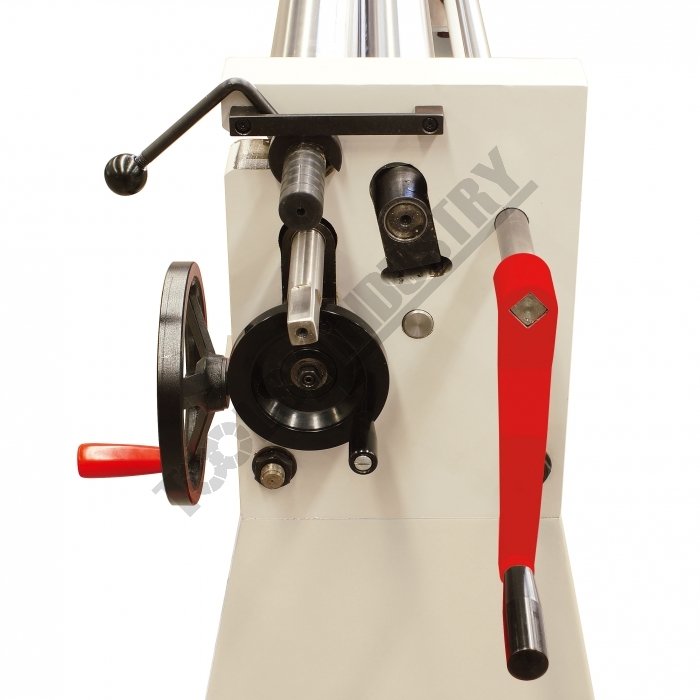

The SRG-50E sheet metal curving rolls are engineered for precision and ease of use. A single handwheel adjusts both sides of the rollers simultaneously through a wedge-type system, enabling effortless clamping for varying material thicknesses. Additionally, another handwheel controls the rear curving roll using a worm gear and lever cam mechanism, simplifying the process of curving sheet metal.

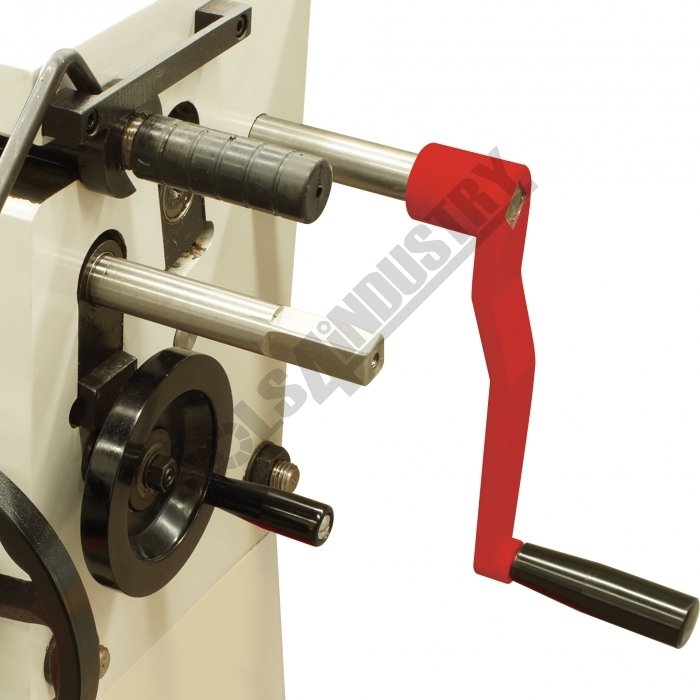

This machine features a dual-speed roller drive system. The 3.5:1 ratio is ideal for full-length materials up to 1250 x 1.6mm, minimizing physical effort during forming, while the 1:1 ratio is suited for thinner materials to enhance production speed.

Features

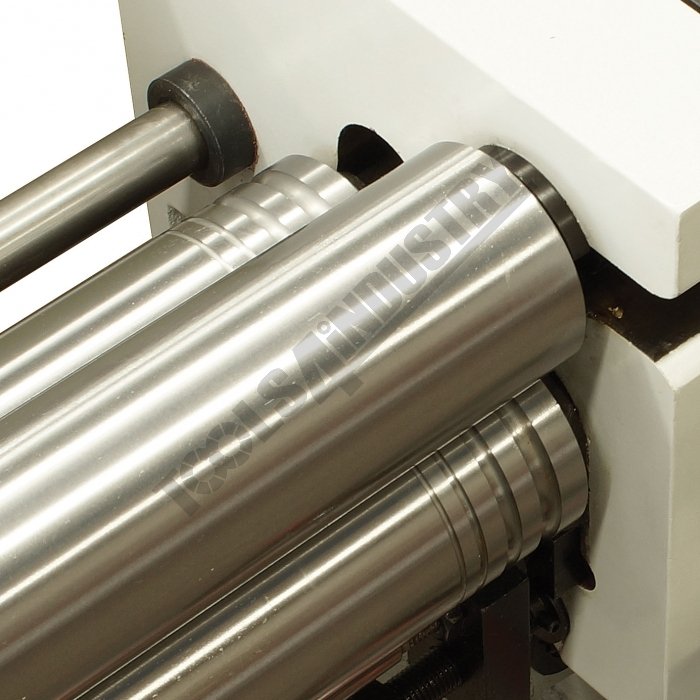

• 75mm Ground rolls with wiring grooves

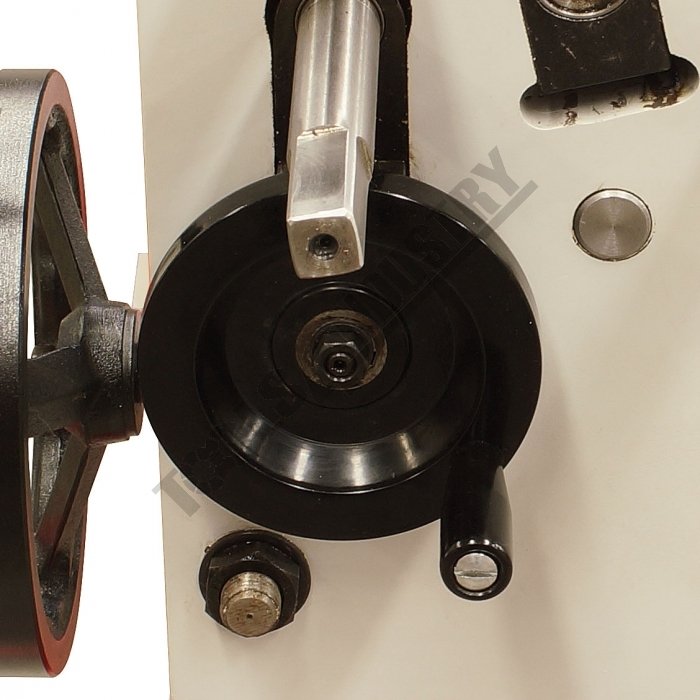

• Single hand wheel adjustment via European design wedge system for material thickness

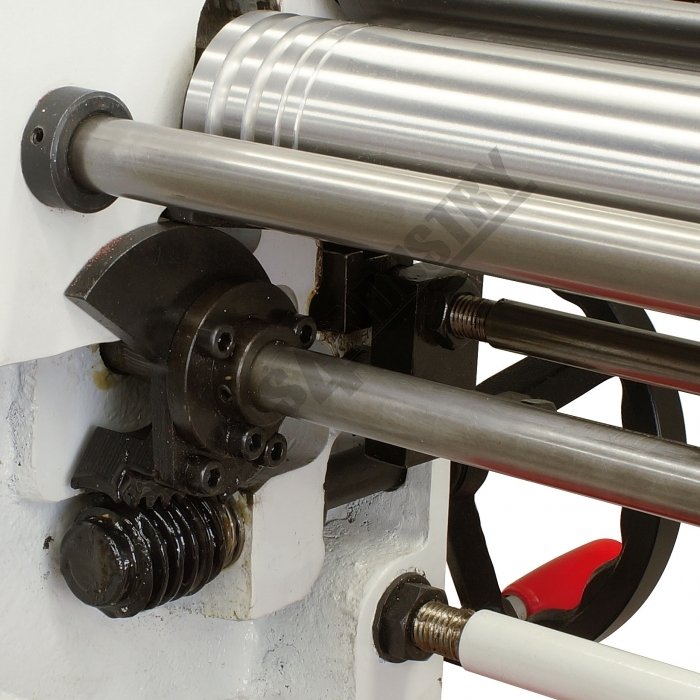

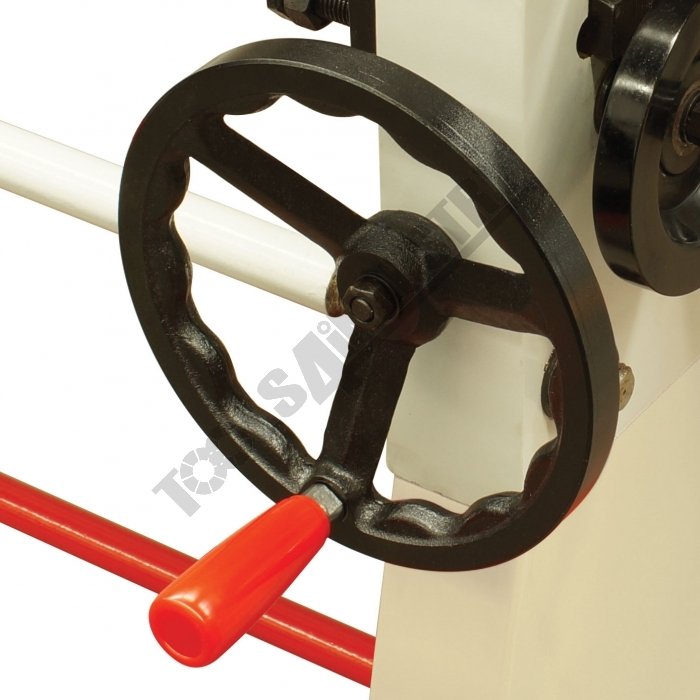

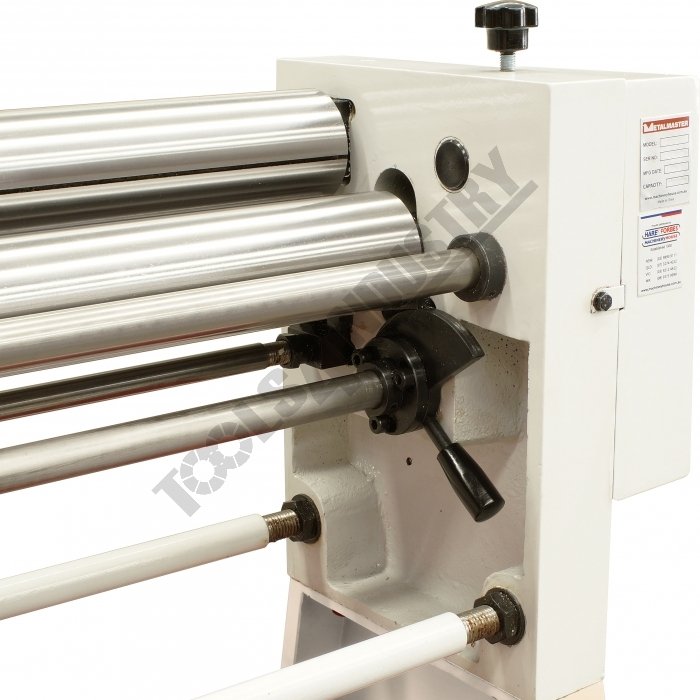

• Single hand wheel adjustment for rear curving roller with cam action worm gear

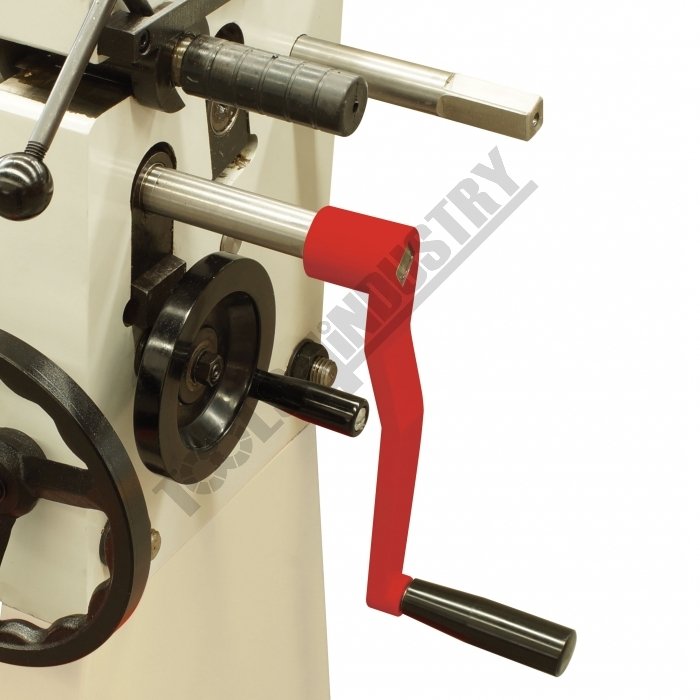

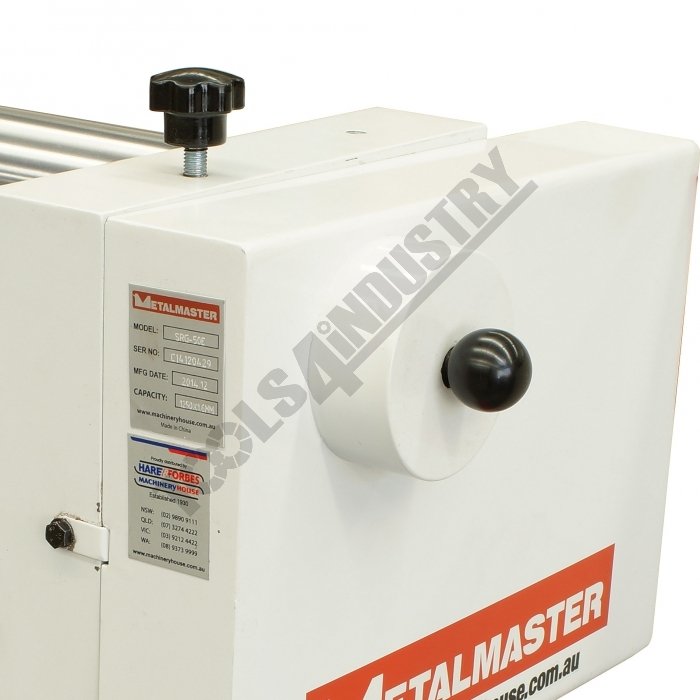

• 2 speed roller drive system, 3.5:1 & 1:1 ratio

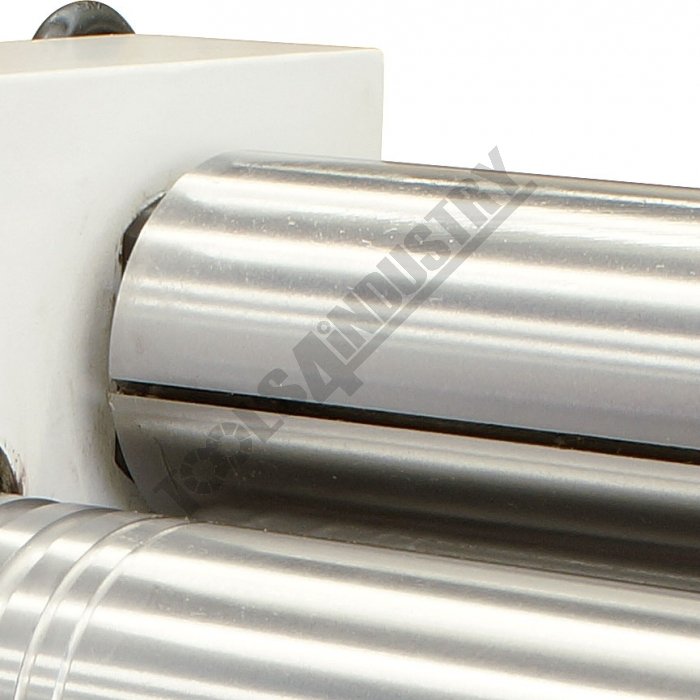

• Machined slit 10mm deep in top roller
• Cast-iron construction

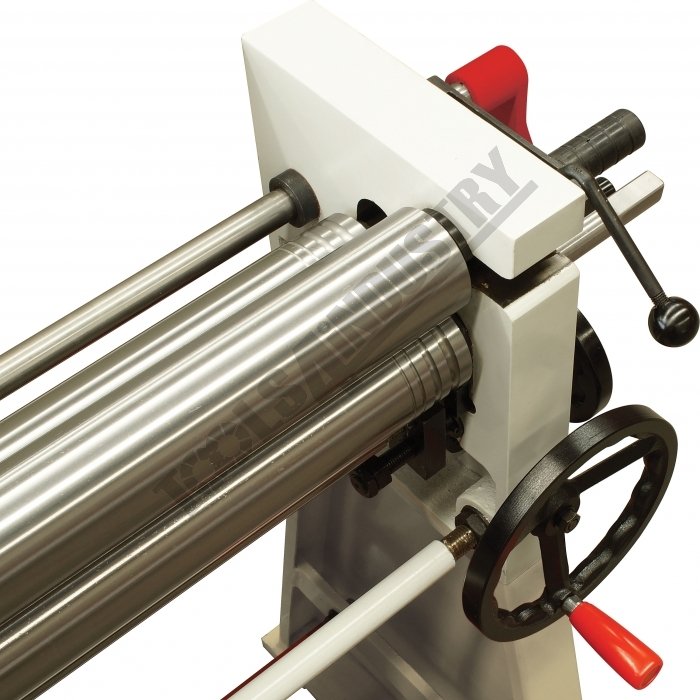

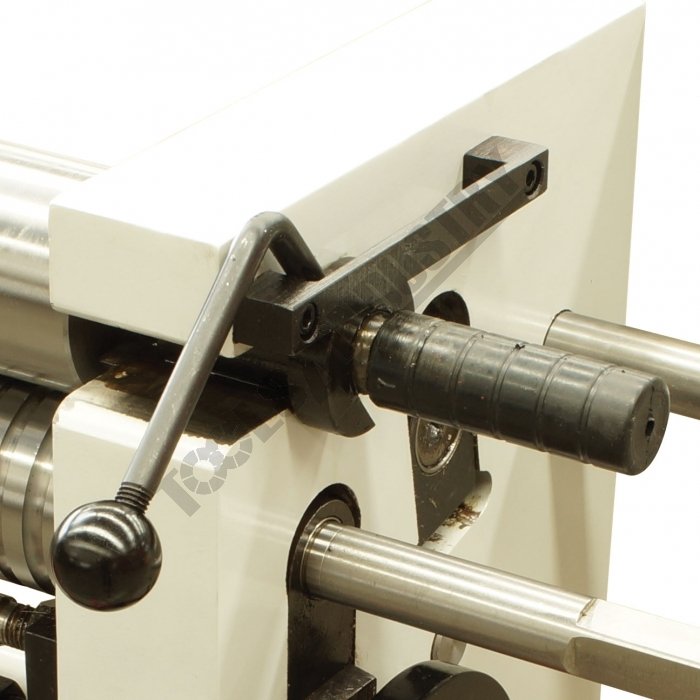

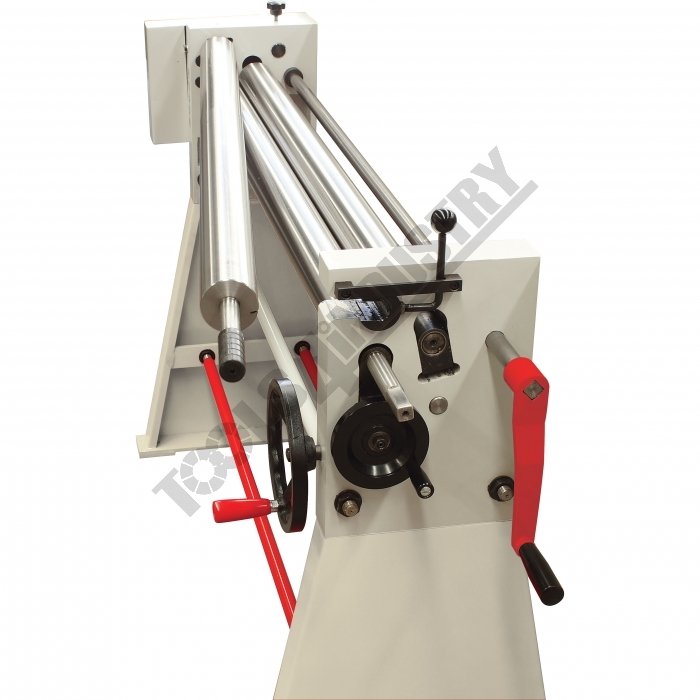

• Quick action swivel top roller
• Includes heavy duty stand
• Mild steel capacity is rated on hot rolled material with 250MPA
