| Code | Q610 |
|---|---|
| Model | 70-610 |
| Weight (kg) | 0.08 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 0.08 |
| Dimensions (cm) | 14 x 5 x 2 |

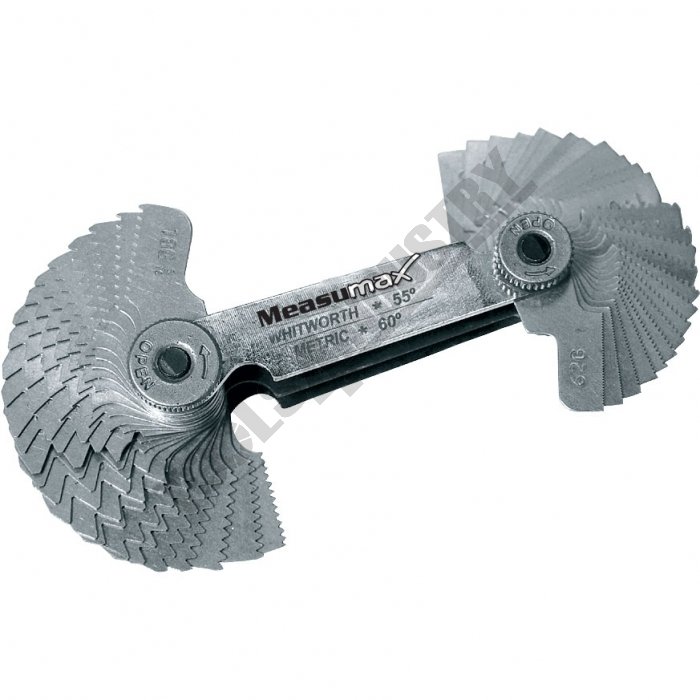

70-610 Screw Pitch - Thread Gauge
Description
Made from hardened steel accurately milled gauges for checking internal and external threads.Features
- METRIC = 60°, 23 Thread Gauges
- Range: 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7mm Pitch
- IMPERIAL = 55°, 28 Thread Gauges
- Range: 4, 4-1/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 29, 30, 32, 36, 40, 48, 60, 62TPI

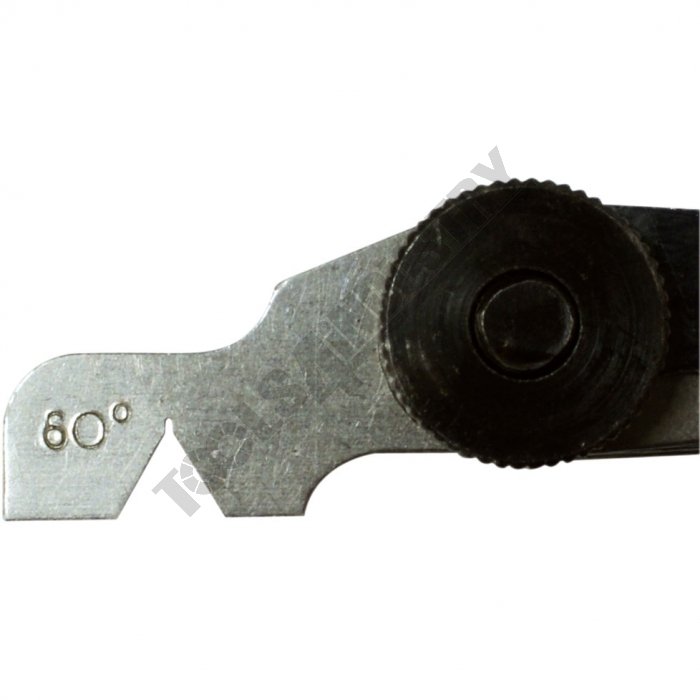

- Includes = 1 x 60° Screw Cutting Gauge
Specifications
- Compare 2 Products
- ORDER CODE
- Imperial Thread Sizes / Range / Form
- Metric Thread Sizes / Range / Form
- Screw Cutting Gauge
- Q610
- 28 / (4-62TPI) / 55º
- 23 / (0.4-7mm Pitch) / 60º
- 60º Angle
- Q602
- ~
- .5 to 1.5mm
| ORDER CODE | 28 / (4-62TPI) / 55º |
|---|---|
| Imperial Thread Sizes / Range / Form | 23 / (0.4-7mm Pitch) / 60º |
| Metric Thread Sizes / Range / Form | 60º Angle |
| Screw Cutting Gauge |
