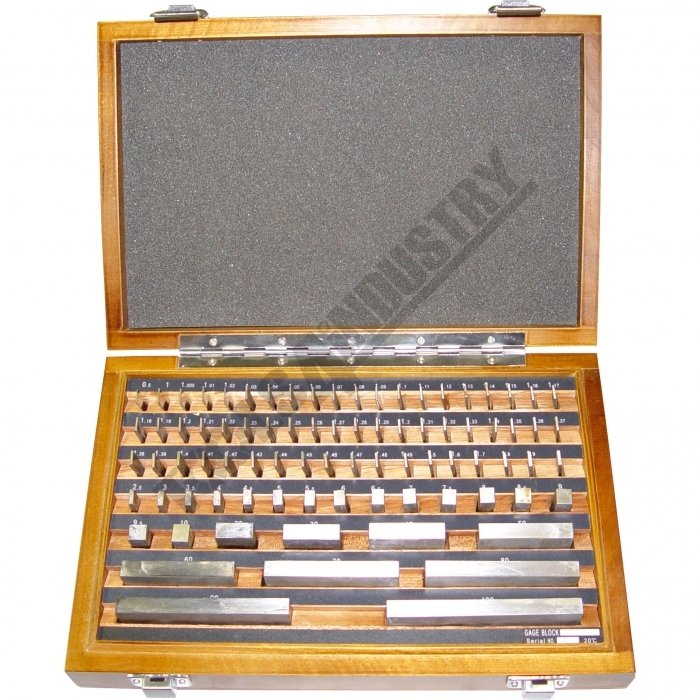

Gauge Block Set 37-260 83 Piece

Description

Measumax gauge blocks are to ISO3650 standard. The standards are taken at 20°C

Gauge blocks (also known as gage blocks, Johansson gauges, slip gauges, or Jo blocks) are precision ground and lapped.
Grade 2 or (A) is suitable for Inspection

Features

• High accuracy & lower surface roughness
• Better wring performance
• High tolerance stability
• All blocks meet DIN EN ISO 3650 Standard
• Round and straight chamfers on each corner of gauge blocks
• Includes inspection certificate


• *Nata Certification not included

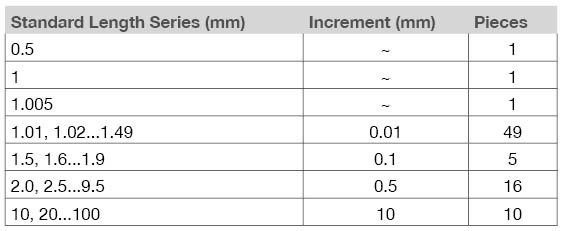

Includes

• 1 piece 0.5mm
• 1 piece 1.0mm
• 1 piece 1.005mm
• 49 pieces 1.01, to 1.49mm by 0.01mm increments
• 5 pieces 1.5, to 1.9mm by 0.1 increments
• 16 pieces 2.0 to 9.5mm by 0.5 increments
• 10 pieces 10.0 to 100.0mm by 10mm increments
