| Code | Q239 |
|---|---|
| Model | 33-239 |
| Capacity | 0-20mm/0.8" |
| Weight (kg) | 0.86 |
| Weight (m3) | 0.002 |
| Weight (Freight) | 0.86 |
| Dimensions (cm) | 23.5 x 17 x 5.5 |

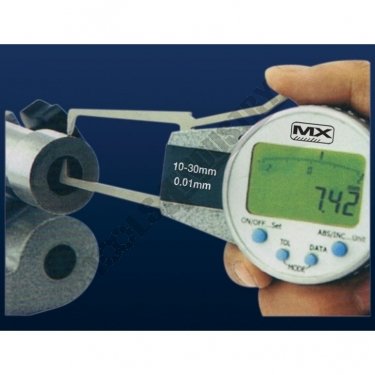

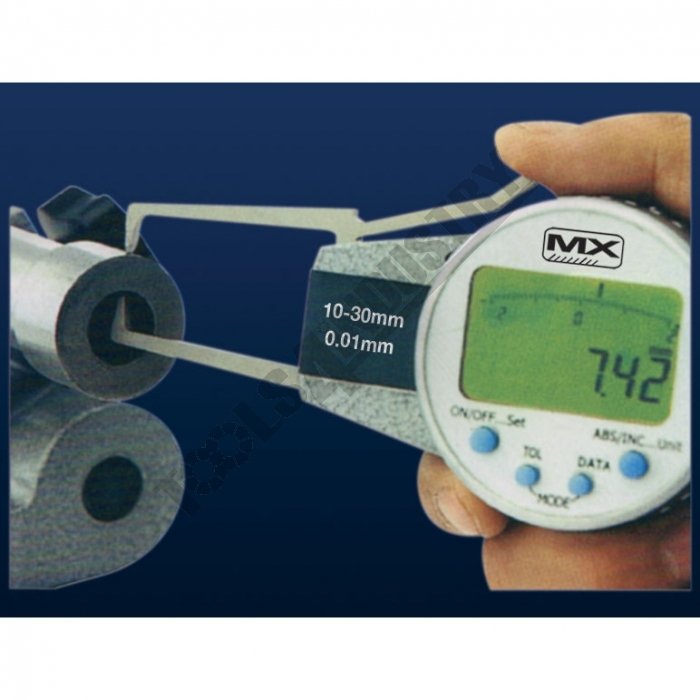

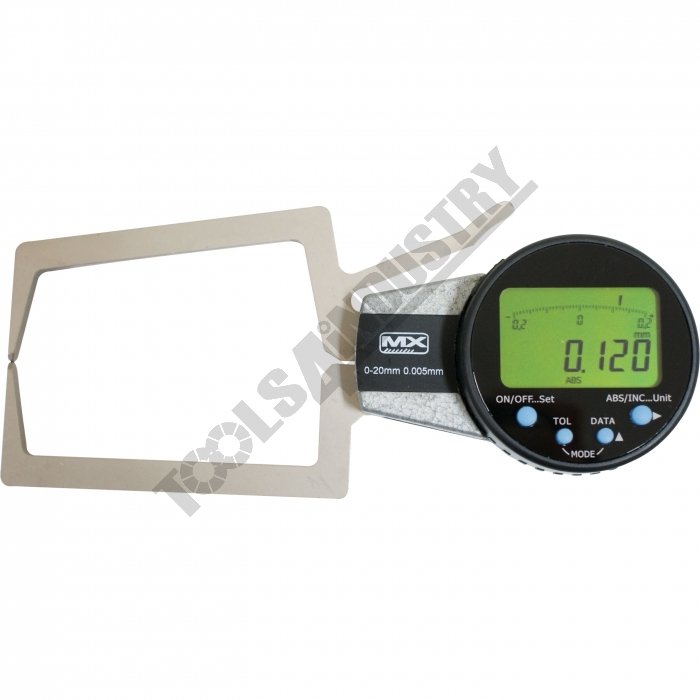

Outside Caliper Gauge 33-239 0-20mm/0.8"
Description
Electronic outside caliper gauges are suitable for the measurement of grooves or dimensions that cannot be reached with a micrometer or vernier caliperFeatures
- Digital and analogue display on LCD
- Function include Power, Absolute & Incremental
- Metric/Imperial conversion
- Remembers the data of Max. and Min. or hold data
- Direct RS232 Output (Uses cable 40-401)
- Auto Power off
- Accuracy 0.03mm
- Tolerance set
Includes
- Includes CR2032 battery
Specifications
- Compare 1 Products
- ORDER CODE
- Range
- Graduations
- Lmm
- Smm
- Hmm
- Q239
- 0 - 20mm / 0 - 0.8"
- 0.01mm / 0.0005"
- 80
- 6.5
- 25
| ORDER CODE | 0 - 20mm / 0 - 0.8" |
|---|---|
| Range | 0.01mm / 0.0005" |
| Graduations | 80 |
| Lmm | 6.5 |
| Smm | 25 |
| Hmm |
