Code	Q192
Model	33-192
Capacity	200mm
Weight (kg)	0.78
Weight (m³)	0.001
Weight (Freight)	0.78
Dimensions (cm)	37 x 13 x 3

MEASUMAX

1 Year Warranty

Product Brochure How to use a Dial Caliper [684 KB]

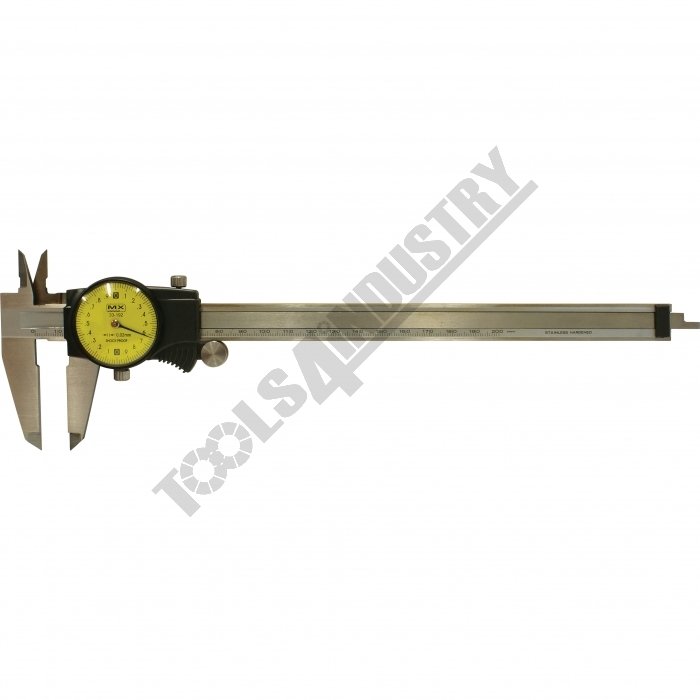

Dial Caliper 33-192 200mm

Description

Measumax Dial Calipers combine the protection of a covered rack with Micro-fine graduations, and the accuracy of a hardened stainless steel rack.

Features

Precision dial calipers with stainless steel slide tinite coated top and bottom

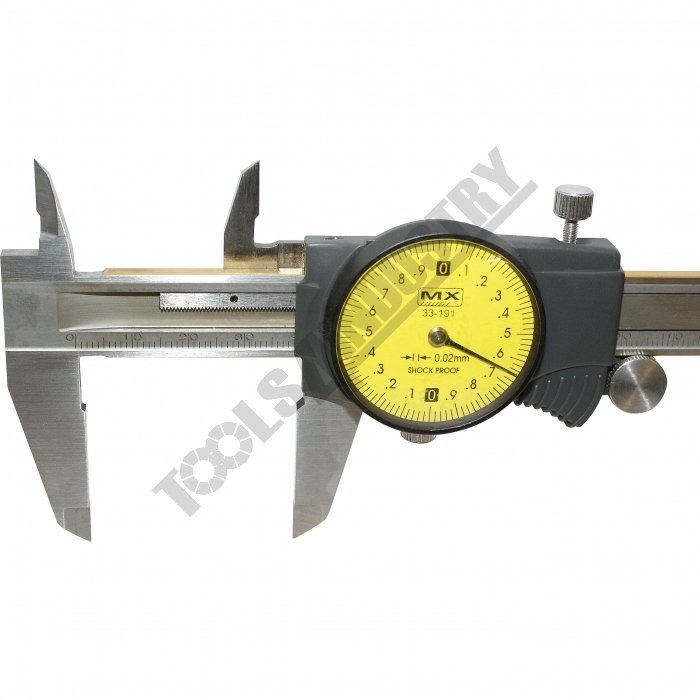

Clear graduations on the dial and beam
Smooth movement from precision internal movement
Easy zero adjustment of the dial
Four way measurement

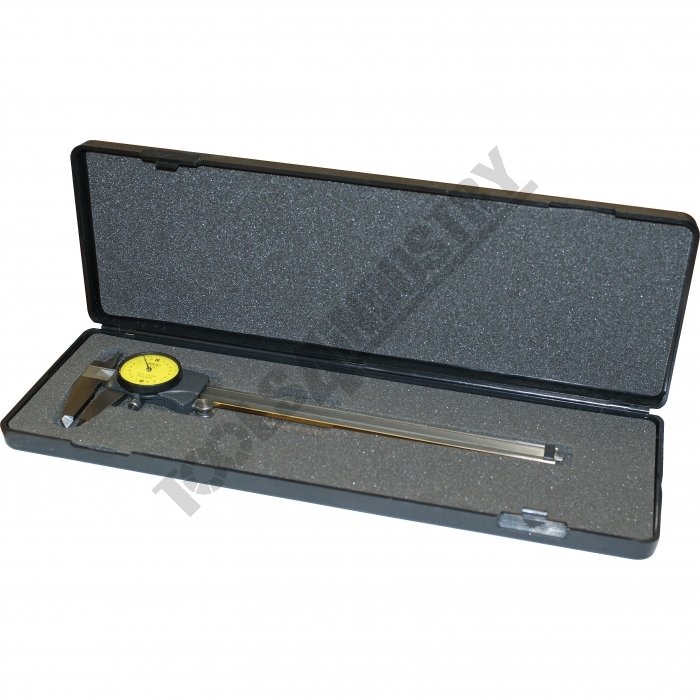

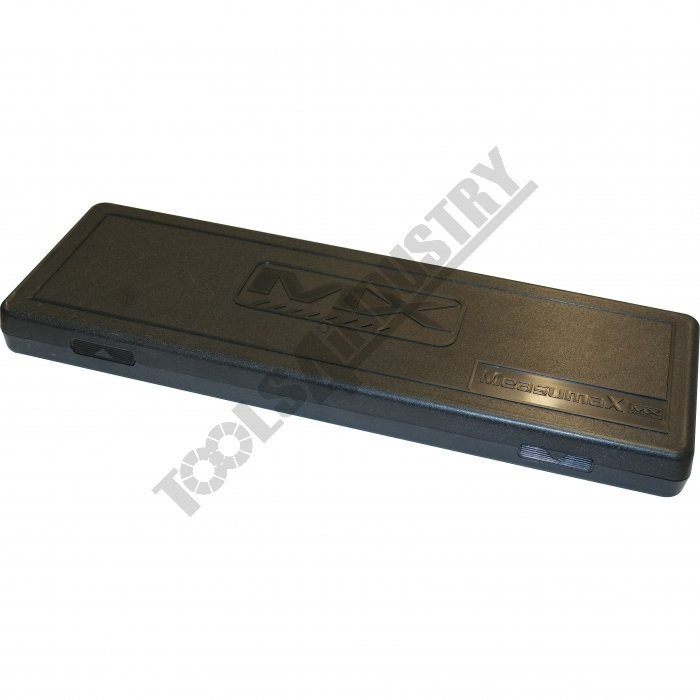

Supplied in foam lined plastic case
Accuracy ±0.03mm

Specifications

Compare 9 Products
ORDER CODE
Measuring Units
Range
Graduations

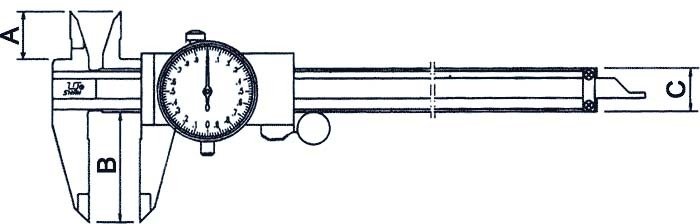

Amm
Bmm
Cmm

Q192
Metric
200mm
0.02mm
24
50
16

Q170
mm/inch/F~
0-150mm
~
~
~
~

Q170
mm/inch/F~
0-150mm
~
~
~
~

Q170
mm/inch/F~
0-150mm
~
~
~
~

Q190
Imperial
6"
0.001"
21
40
16

Q170
mm/inch/F~
0-150mm
~
~
~
~

Q191
Metric
150mm
0.02mm
21
40
16

Q170
mm/inch/F~
0-150mm
~
~
~
~

Q170
mm/inch/F~
0-150mm
~
~
~
~

ORDER CODE	Metric
Measuring Units	200mm
Range	0.02mm
Graduations	24
Amm	50
Bmm	16
Cmm
