| Code | Q1871 |
|---|---|
| Model | 31-1871 |
| Capacity | 300mm / 12" |
| Weight (kg) | 0.5 |
| Weight (m3) | 0.002 |
| Weight (Freight) | 0.666 |
| Dimensions (cm) | 35 x 14.5 x 3.5 |
| Only Available From | Auckland |


Digital Caliper - Coolant Proof 31-1871 300mm / 12"
Description
Coolant Proof IP-67 (CEI60529). Precision digital calipers with stainless steel body and slides. Ideal application where dust and coolant is prevalentThe international ratings organisation explain the following conditions for IP-67
The "6" denotes: "Protected against dust - limited ingress (no harmful deposit)"
The "7" denotes: "Protected against immersion between a depth of 15cm to 1 meter in fluids"
Features
- New ABSOLUTE measuring system with memory hold and ABS/INC
- Fully protected against the penetration of liquids
- IP-67 prevents dust, water or oil from entering the caliper through effective encapsulation of the main parts
- Large clear screen display - Metric/Imperial conversions at any position, Zero switches at any position. The memory hold function allows for the readinf to be kept even after the unit is switched off.
- Manual switch off
- Supplied in fitted blow mould case
Includes
- Includes CR2032 battery
Specifications

- Compare 13 Products
- ORDER CODE
- Sizemm / inch
- Resolutionmm / inch
- Coolant ProofRating
- 4 WayYes / No

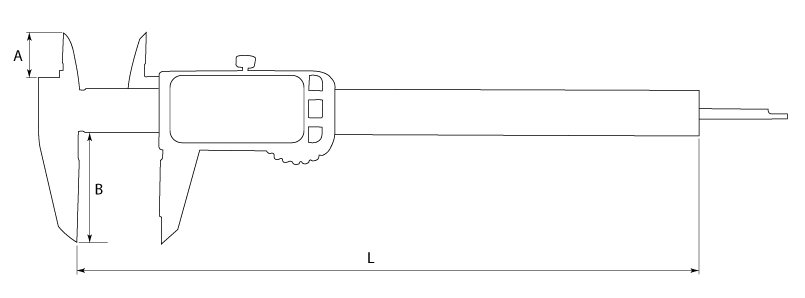

- Amm
- Bmm
- Lmm

- Q1871
- 300mm / 12"
- 0.01mm / 0.0005"
- IP67
- Yes
- 21
- 60
- 375

- Q188
- 600mm / 24"
- 0.01mm / 0.0005"
- ~
- Yes
- 40
- 125
- 735

- Q1885
- 1000mm / 40"
- 0.01mm / 0.0005"
- ~
- Yes
- ~
- 150
- 1200

- Q182
- 300mm / 12"
- 0.01mm / 0.0005"
- IP54
- Yes
- 23
- 60
- 371

- Q170
- 150mm / 6"
- +/- 0.01mm
- IP54
- Yes
- 15mm
- 40mm
- 221mm

- Q175
- 150mm / 6"
- +/- 0.01mm
- IP67
- Yes
- 15mm
- 40mm
- 221mm

- Q171
- 200mm / 8"
- +/- 0.01mm
- IP54
- Yes
- 19mm
- 50mm
- 271mm

- Q176
- 200mm / 8"
- +/- 0.01mm
- IP67
- Yes
- 19mm
- 50mm
- 271mm

- Q172
- 300mm / 12"
- +/- 0.01mm
- IP54
- Yes
- 21mm
- 59mm
- 371mm

- Q177
- 300mm / 12"
- +/- 0.01mm
- IP67
- Yes
- 21mm
- 59mm
- 371mm

- M740
- 150mm / 6"
- 0.01mm / 0.0005"
- ~
- Yes
- ~
- ~
- ~

- M742
- 200mm / 8"
- 0.01mm / 0.0005"
- ~
- Yes
- ~
- ~
- ~

- M743
- 300mm / 12"
- 0.01mm / 0.0005"
- ~
- Yes
- ~
- ~
- ~
| ORDER CODE | 300mm / 12" |
|---|---|
| Sizemm / inch | 0.01mm / 0.0005" |
| Resolutionmm / inch | IP67 |
| Coolant ProofRating | Yes |
| 4 WayYes / No | 21 |
| Amm | 60 |
| Bmm | 375 |
| Lmm |
