| Code | Q138 |
|---|---|
| Model | 10-138 |
| Capacity | 0-25mm |
| Weight (kg) | 0.58 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 0.58 |
| Dimensions (cm) | 19.5 x 10.5 x 4.5 |

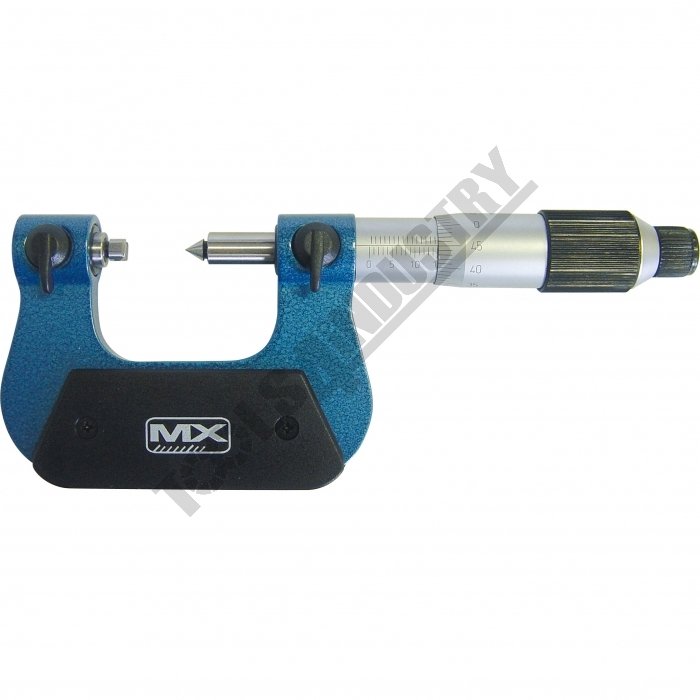

Screw Thread Micrometers 10-138 0-25mm
Description
Measumax Screw Thread micrometers are suitable for measuring pitch diameters of Metric, Whitworth and Unified screw threads.Features

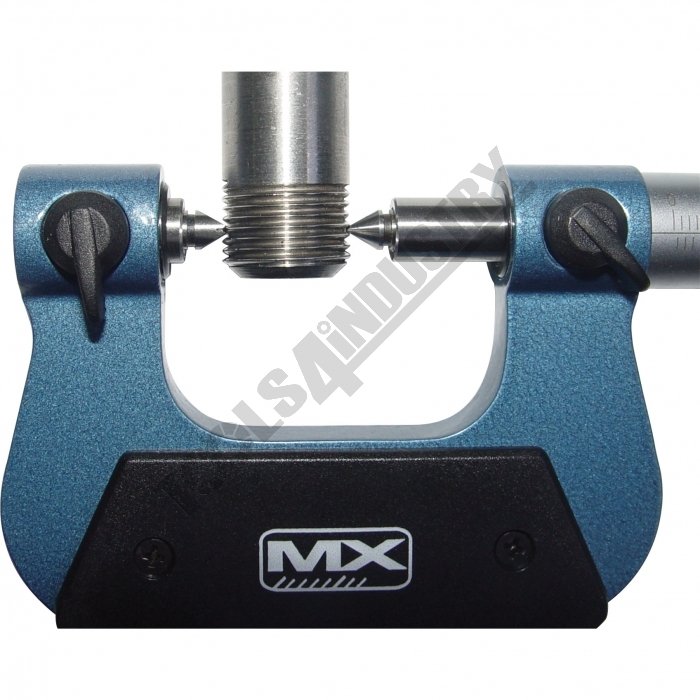

- V-shaped and cone-shaped anvils (interchangeable) are supplied. Dimensions of anvil-tail: Ø5x15mm
- Ratchet friction thimble
- Painted frame, rotating spindle
- Graduation: 0.01mm
Includes
- Includes 60º Anvils
- F0101 0.4-0.5mm pitch
- F0102 0.6-0.9mm pitch
- F0103 1-1.75mm pitch
- F0104 2-3mm pitch
- F0105 3.5-5mm pitch
Specifications
- Compare 4 Products
- ORDER CODE
- Measuring Units
- Rangemm / inch
- Graduationmm
- Accuracymm

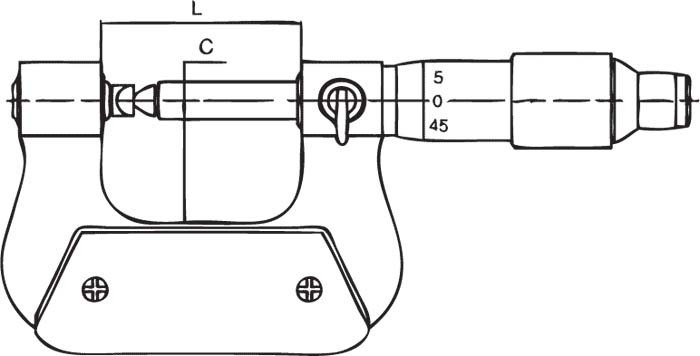

- Cmm
- Lmm
- Anvils Supplied
| ORDER CODE | Metric |
|---|---|
| Measuring Units | 0 - 25mm |
| Rangemm / inch | 0.01mm |
| Graduationmm | ±0.004mm |
| Accuracymm | 26 |
| Cmm | 42 |
| Lmm | F0101 - F0105 (60º ) |
| Anvils Supplied |
