Code Q106
Model 10-106
Weight (kg) 0.46
Weight (m3) 0.001
Weight (Freight) 0.46
Dimensions (cm) 20 x 10 x 3
MEASUMAX
2 Years Warranty

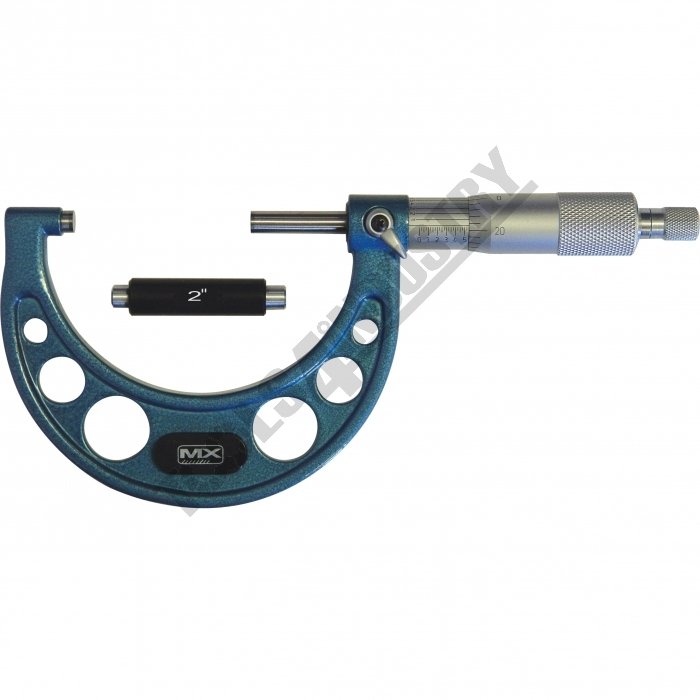

Imperial Outside Micrometer 10-106

Description

Measumax imperial micrometers represent exceptional value with special care in design and workmanship to ensure high precision and long life.
Measumax imperial micrometers meet industry standards for specification and accuracy.

Features

  • Carbide measuring faces
  • Measuring face 6.5mm, Flatness 0.0008mm
  • Micro-fine clear graduations on satin chrome finish
  • Ratchet stop for exact repetitive readings
  • Includes deluxe foam lined plastic case and wrench
  • Graduation 0.001"
  • Painted cast frame
  • Supplied with setting standards

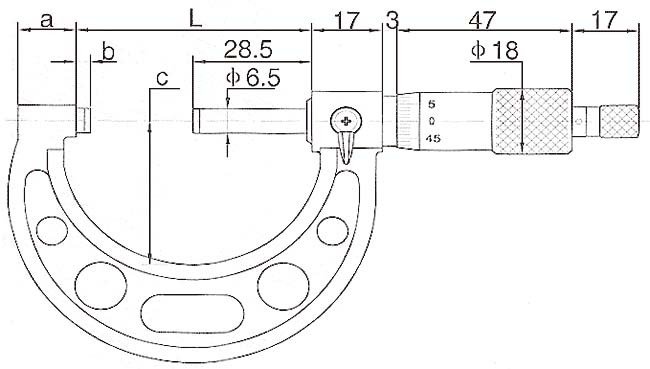

Specifications

ORDER CODE2 - 3"
Rangeinch0.001"
Graduationinch14.5
amm3
bmm49
cmm82
Lmm
