Code	PP525
Weight (kg)	3.33
Weight (m³)	0.001
Weight (Freight)	3.33
Dimensions (cm)	46 x 7 x 2

Product Brochure

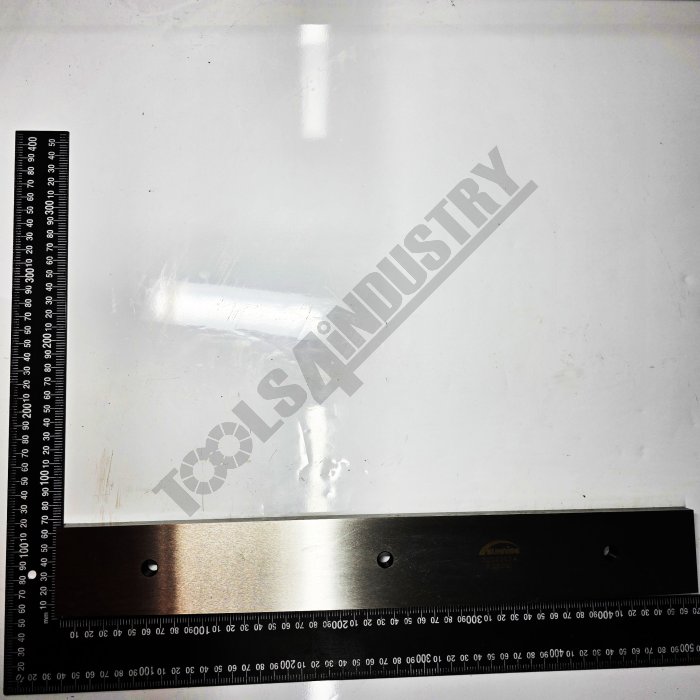

FLAT SHEAR (UP MV)

Specifications

Compare 6 Products
ORDER CODE
MODEL
Punching PressureTonne
Punching Table Type
Punching (Diameter x Thickness) - MSmm
Punching Throat Depthmm
Punching Maximum Stroke Lengthmm
Punching Cycles (15mm Stroke) - MScpm
Punching Work Table Heightmm
Flat Bar Shear (W x Thickness) - MSmm
Flat Bar Shear - Blade Length - MSmm
Flat Bar Shear Work Table Heightmm
Angle Shear 90º - MSmm
Angle Shear 45º - MSmm
Angle Flange Trimmm
Angle Shear Work Table Heightmm
Round Solid Bar Shear - MSmm
Square Solid Bar Shear - MSmm
Solid Bar Shear Work Table Heightmm
Notching - Rectangle - MSmm
Notching Work Table Heightmm
Multi Vee Die Blockmm
Vee Opening Sizesmm
Max. Tonne CapacityT
Bending Work Table Heightmm
Motor PowerkW / hp
Voltage / AmperageV / amp
Nett Weightkg

P170
IW-45M
45
Manual with Guides and
Adjustable Stops
Ø22 x 15, Ø40 x 8
175
35
31
970
350 x 8, 180 x 12
360
970
80 x 80 x 8
50 x 50 x 6
75
1120
Ø25
25 x 25
1190
~
~
~
~
~
~
3.75 / 5
415
930

P170A
IW-45M
45
Manual with Guides and
Adjustable Stops
Ø22 x 15, Ø40 x 8
175
35
31
970
350 x 8, 180 x 12
360
970
80 x 80 x 8
50 x 50 x 6
75
1120
Ø25
25 x 25
1190
~
~
~
~
~
~
2.2 / 3
240 / 20
930

P171
IW-45K
45
Manual with Guides and
Adjustable Stops
Ø22 x 15, Ø40 x 8
165
30
37
1050
300 x 10
310
800
75 x 75 x 6
~
~
1000
Ø30
25 x 25
~
50.8 x 90 x 7
1050
~
~
~
~
3.75 / 5
415
940

P172
IW-60B
60
Manual with Guides and
Adjustable Stops
Ø28 x 15, Ø40 x 11
220
40
34
1050
350 x 15, 210 x 20B
360
805
100 x 100 x 8
~
~
1070
Ø40
38 x 38
~
~
~
300 x 60 x 60
30 , 20 , 15, 10
6, 4, 3, 2
1050
5.5 / 7.5
415
1360

P173
IW-60H
60
Manual with Guides and
Adjustable Stops
Ø28 x 15, Ø40 x 11
220
55
29
1000
350 x 15, 210 x 20
360
1006
100 x 100 x 13
80 x 80 x 8
100
1236
Ø40
38 x 38
1260
50.8 x 90 x 8
1006
~
~
~
~
5.5 / 7.5
415
1600

P174
IW-60S
60
Manual with Guides and
Adjustable Stops
Ø22 x 20, Ø50 x 9
310
100
30
1010
350 x 15, 240 x 20
360
910
130 x 130 x 13
65 x 65 x 8
100
1115
Ø40
38 x 38
1220
50.8 x 90 x 9
910
~
~
~
~
5.5 / 7.5
415
1950

ORDER CODE
MODEL
Punching PressureTonne
Punching Table Type
Punching (Diameter x Thickness) - MSmm
Punching Throat Depthmm
Punching Maximum Stroke Lengthmm
Punching Cycles (15mm Stroke) - MScpm
Punching Work Table Heightmm
Flat Bar Shear (W x Thickness) - MSmm
Flat Bar Shear - Blade Length - MSmm
Flat Bar Shear Work Table Heightmm
Angle Shear 90º - MSmm
Angle Shear 45º - MSmm
Angle Flange Trimmm
Angle Shear Work Table Heightmm
Round Solid Bar Shear - MSmm
Square Solid Bar Shear - MSmm
Solid Bar Shear Work Table Heightmm
Notching - Rectangle - MSmm
Notching Work Table Heightmm
Multi Vee Die Blockmm
Vee Opening Sizesmm
Max. Tonne CapacityT
Bending Work Table Heightmm
Motor PowerkW / hp
Voltage / AmperageV / amp
Nett Weightkg
