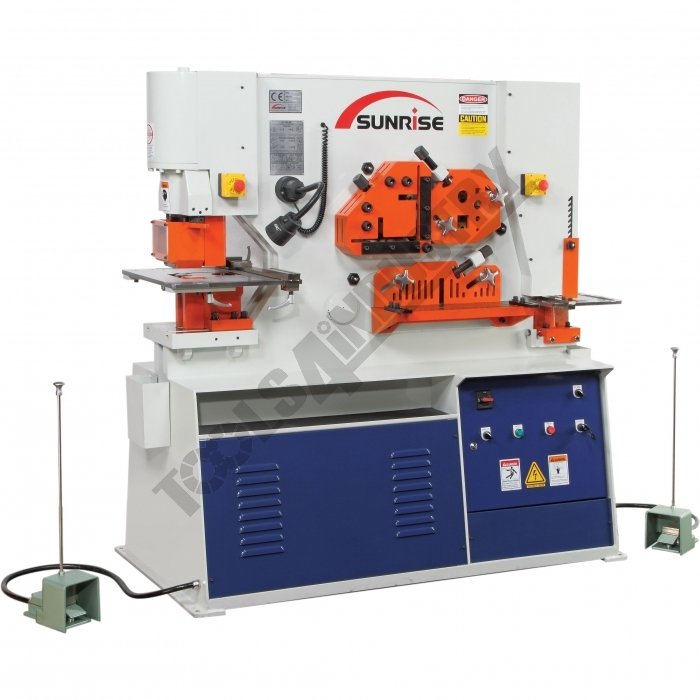

Hydraulic Punch & Shear - 60 Tonne IW-60S Dual Hydraulic Cylinders with Independent Operating Stations

Description

The Sunrise Punch & Shears are manufactured in Taiwan, also known as Ironworkers are well recognised in our Australian market for the machines being reliable & durable due to their structurally well manufactured unique design & engineering excellence. Sunrise is ISO-9001 certified by BVQI, and our products meet the CE safety requirements and regulations. Sunrise relentlessly seeks continuous improvement and product development to keep a step ahead of their competitors.

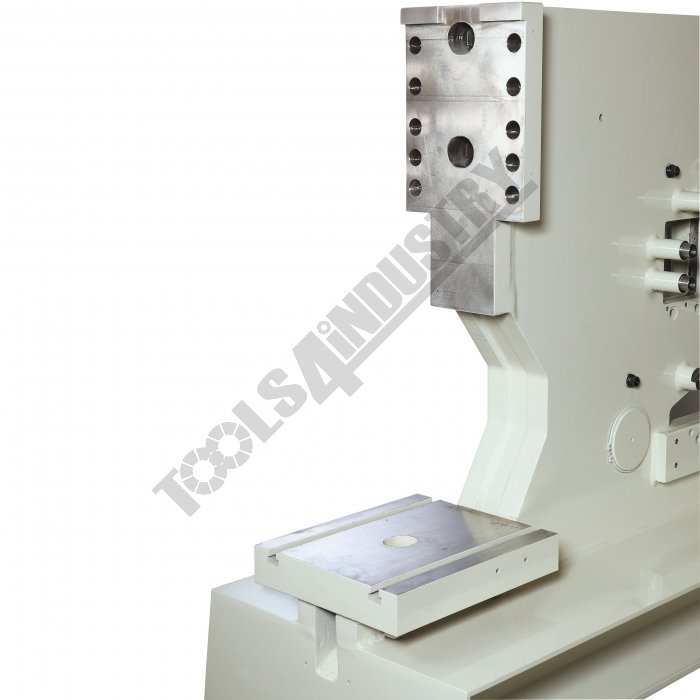

The double cylinder "S/SD" series have two control foot pedals, & separate operations can be safely performed simultaneously without interference. The low pressure setting for tool change provides maximum operation safety. The long punching cylinder stroke & deep throat enable mounting a wide range of special optional equipment. The large punching base with the "T-slot" fixing provide a solid base for securing the punching tooling, as well as a wide range of optional & custom designed tooling.

The hydraulic system & components that drives the shearing beam & punching head is considerably very quiet compared to most other machines and operates efficiently smooth in all modes. The electrical components & DC control circuit are operated at a low 24 volt system & provides full protection & safety with in the separate key locked cabinet.

The Sunrise machines have proven themselves over & over again to provide trouble free service for many years in production and we have references all around Australia to verify our statement.

Features

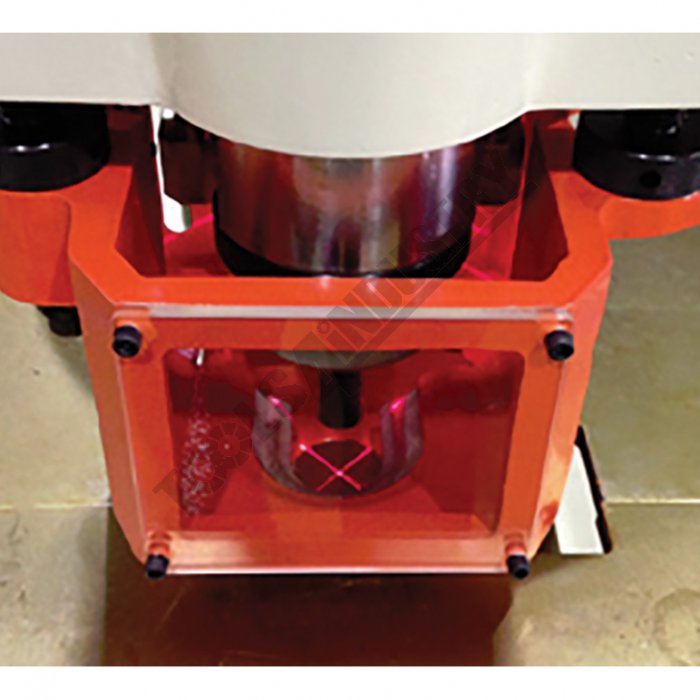

• Laser punch guide system for easy alignment

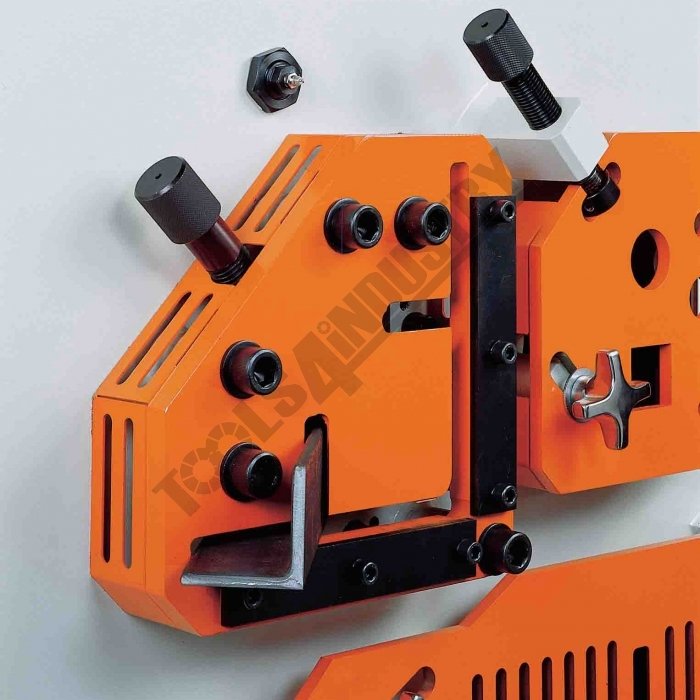

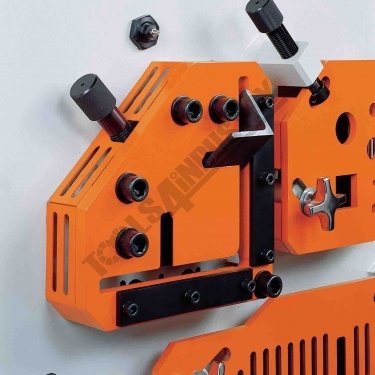

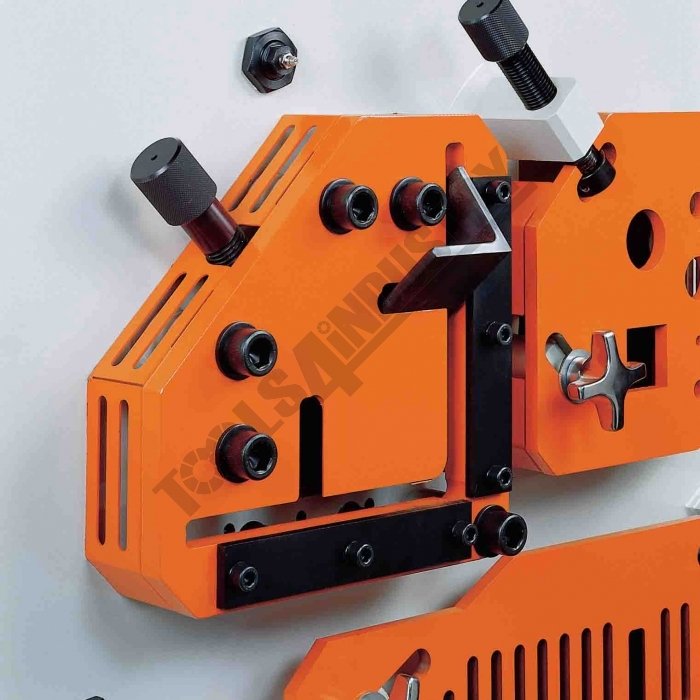

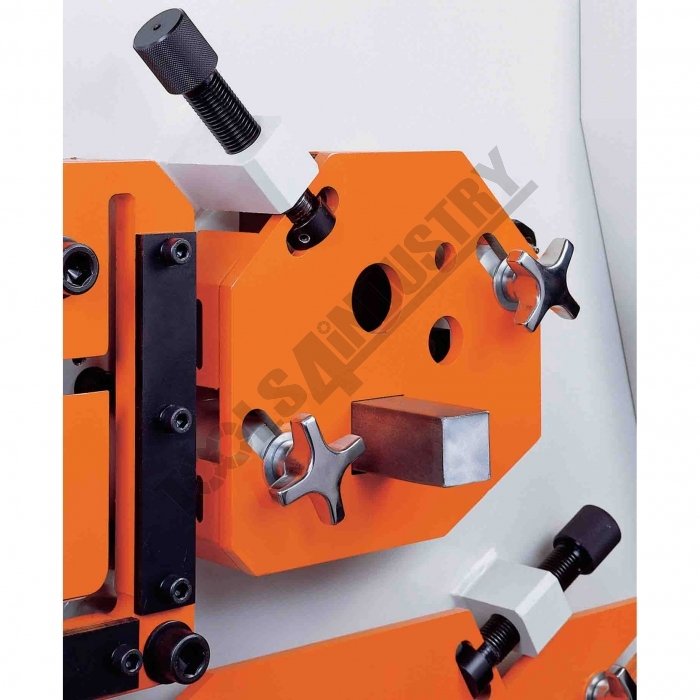

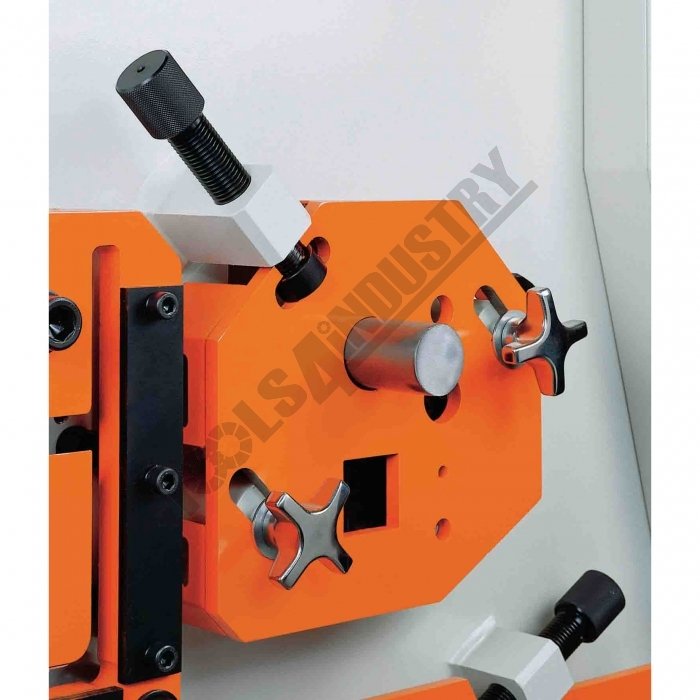

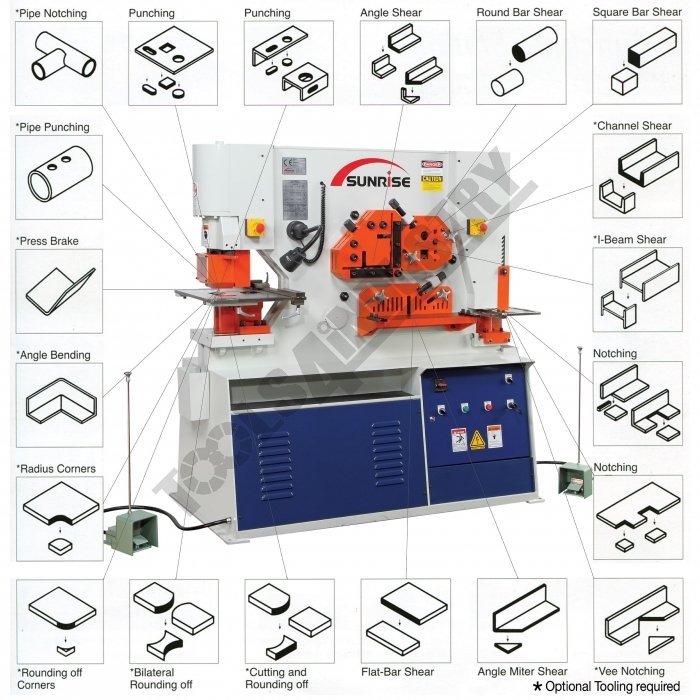

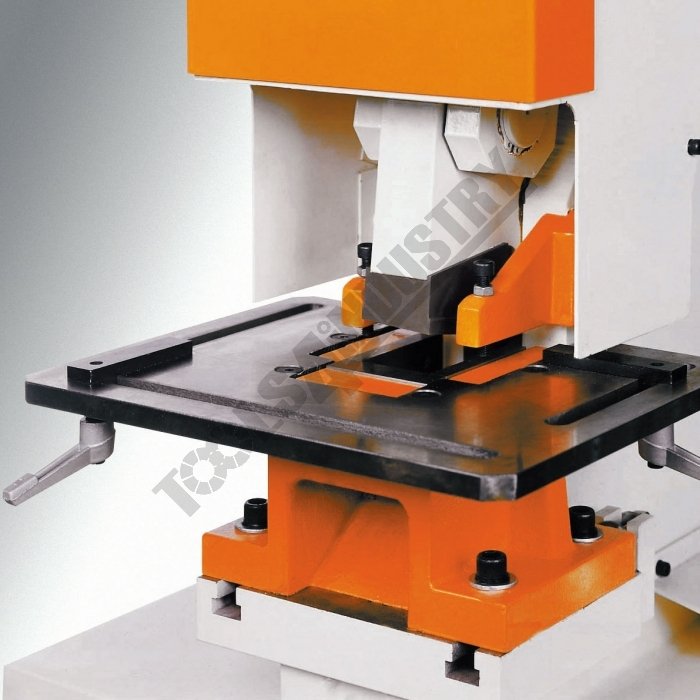

• Five work stations, Punching, Notching, Plate Shearing, Angle Iron Shearing and Bar Shearing (all stations are guarded)
• Dual hydraulic cylinders allows simultaneous operation without interference
• Punching capacity up to 50mm standard

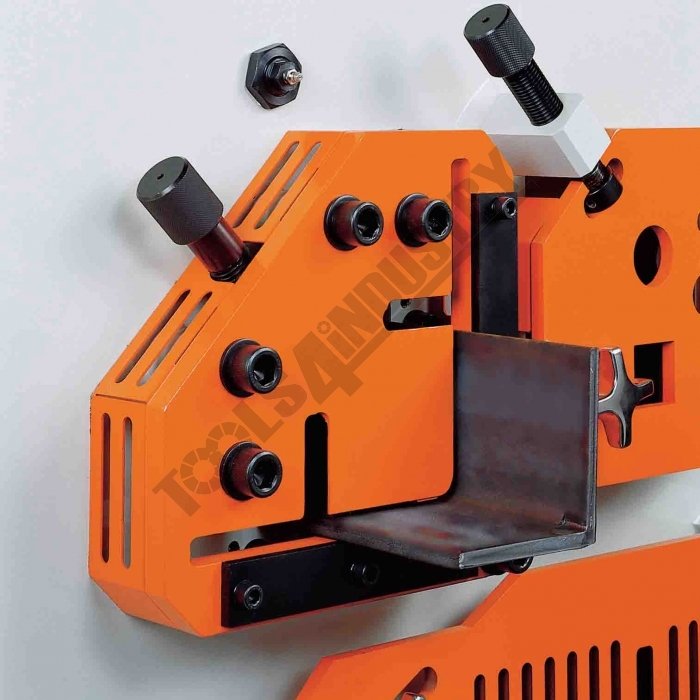

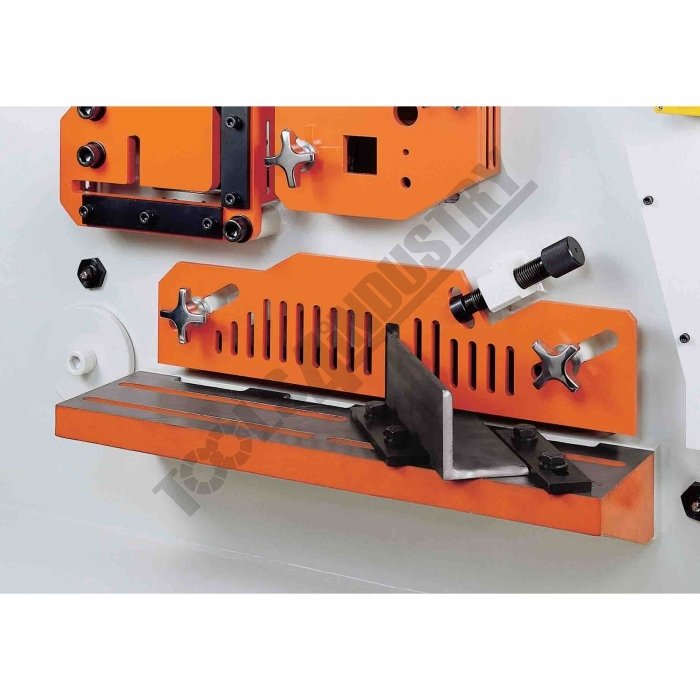

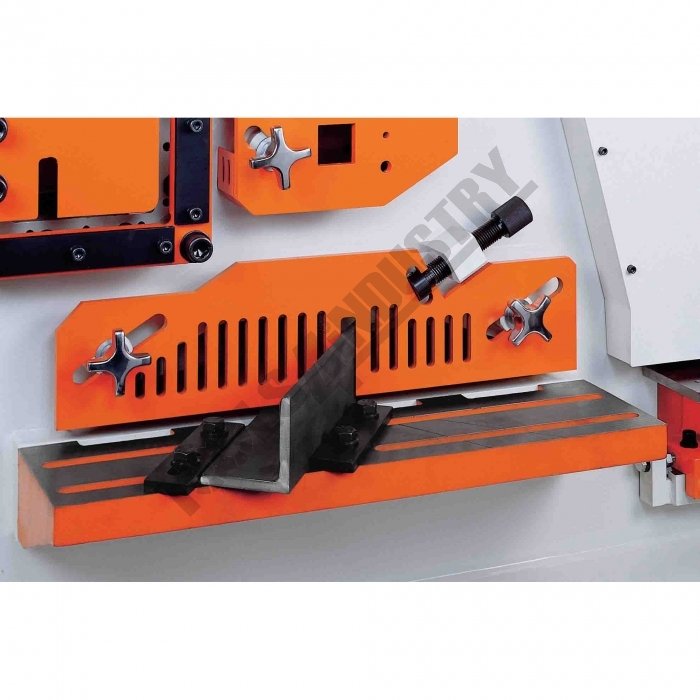

• Mitre cutting of angle iron

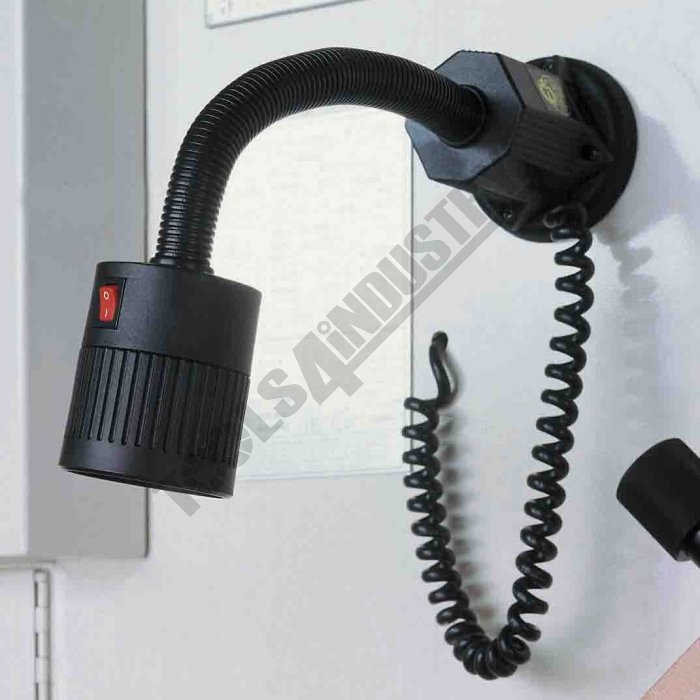

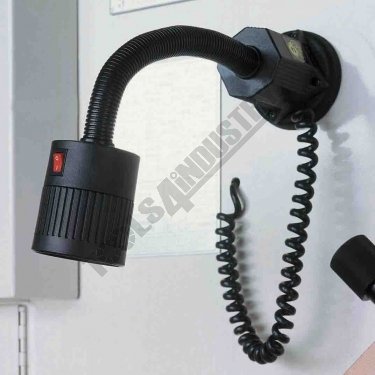

• Magnetic base halogen lamp
• Hydraulic system is protected with replaceable filter cartridge
• Adjustable stroke for faster punching

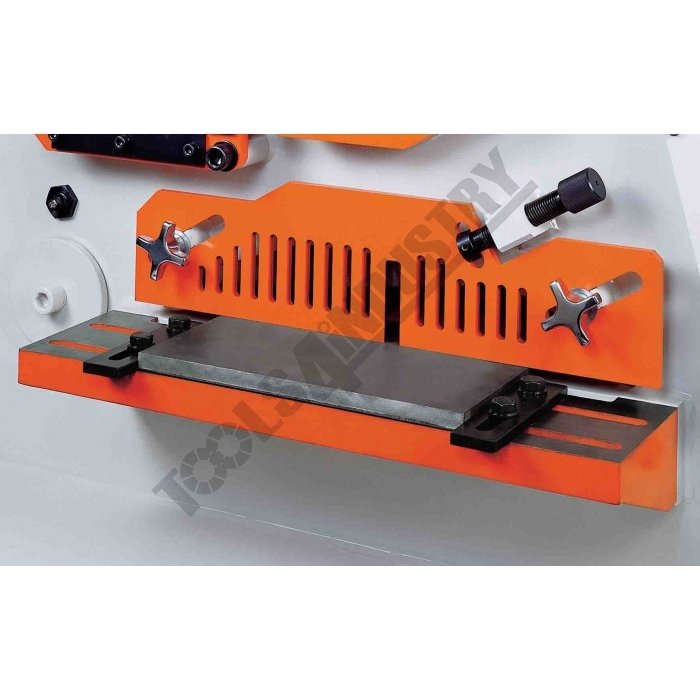

• Curved shear blade for minimal job distortion
• Most cutting blades are four-sided for long life
• Punch, shear & notching table fitted with stops & guides as standard
• Two-pedal operation allows two people to work machine to greatly speed up production
• Large punch table with multi-purpose bolster, featuring a removable block for channel and beam flange punching

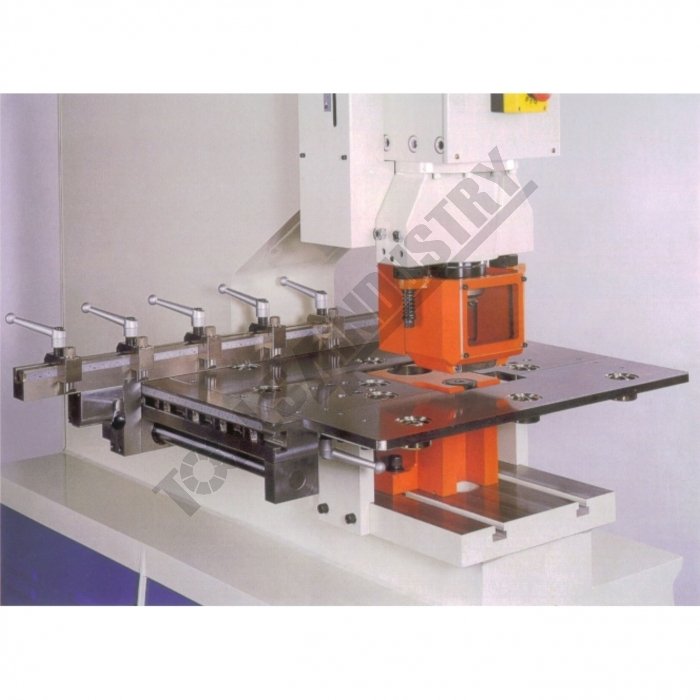

• Adjustable length stop with one-touch electronic backgauge for greater efficiency in repetitious work


• PUNCHING

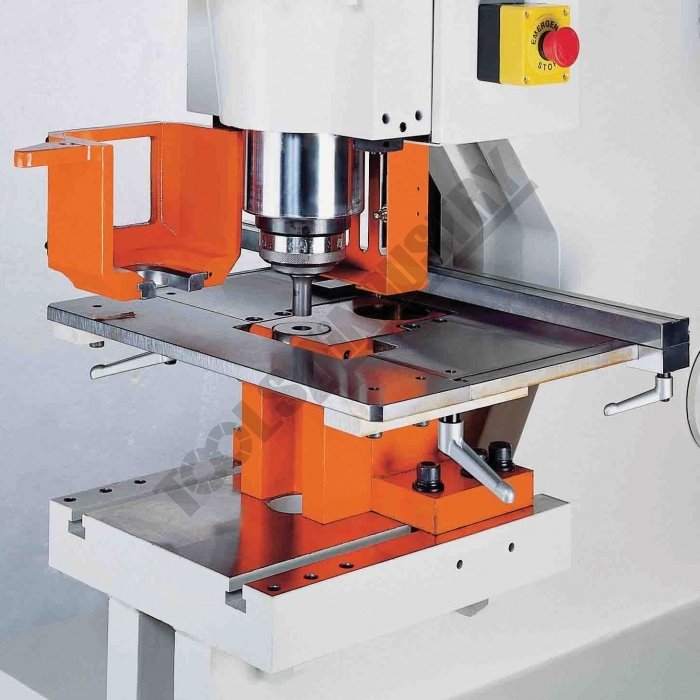

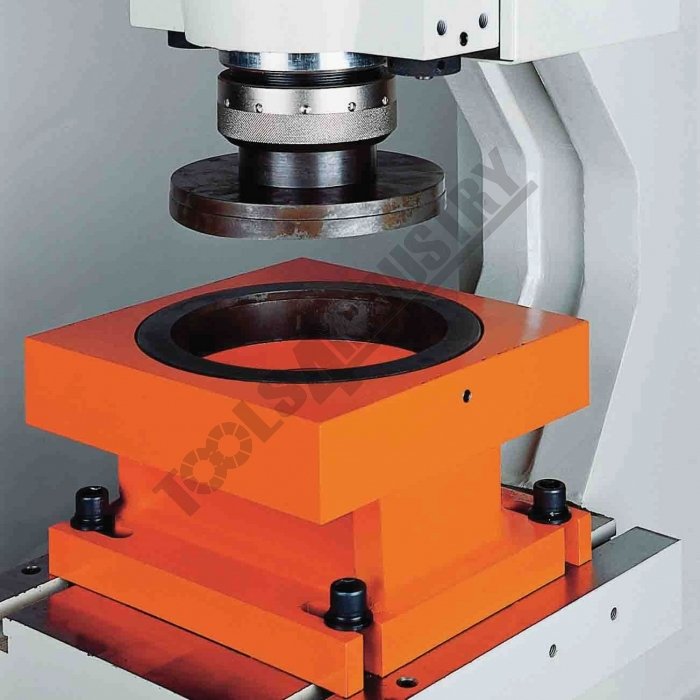

• Large hole punching up to Ø50mm as standard

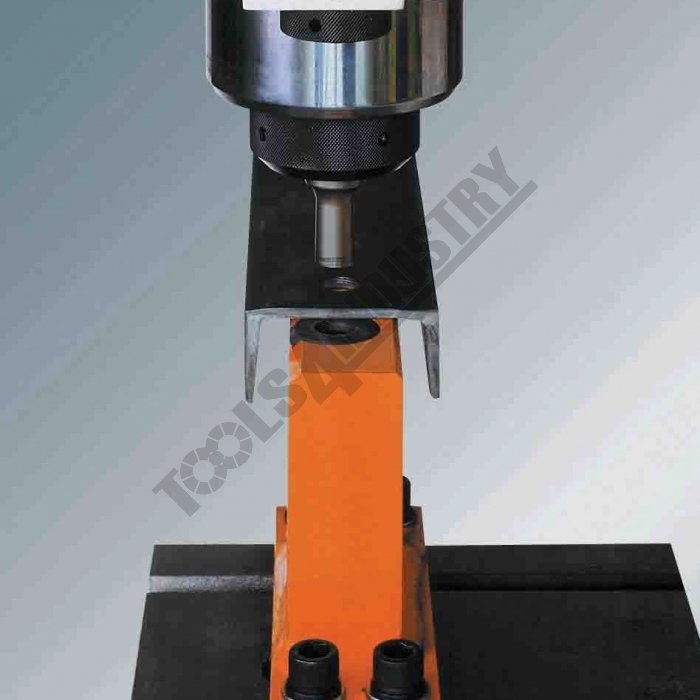

• Overhang bolster for punching channel & beam flanges
• Large ruled support table with removable front section for leg down punching in angle or section
• Easily adjustable stripper & safety guard


• Pre-Commissioning:
• 1. Punch & Shear is run & tested prior delivery
• 2. Hydraulic oil is included with machine

Includes

• 6 sets of round punches & dies:
• Punches: 20, 22, 24, 26, 28 & 30mm
• Dies: 20.7, 23.2, 25.2, 27.2, 29.2 & 31.2mm
• Full safety guarding at all workstations
• Tooling to all workstations
• Punch, Shear & Notch support tables
• Now with Quick Change Tooling

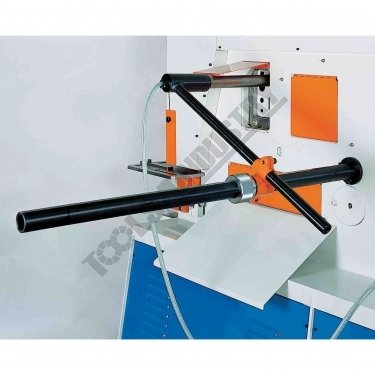

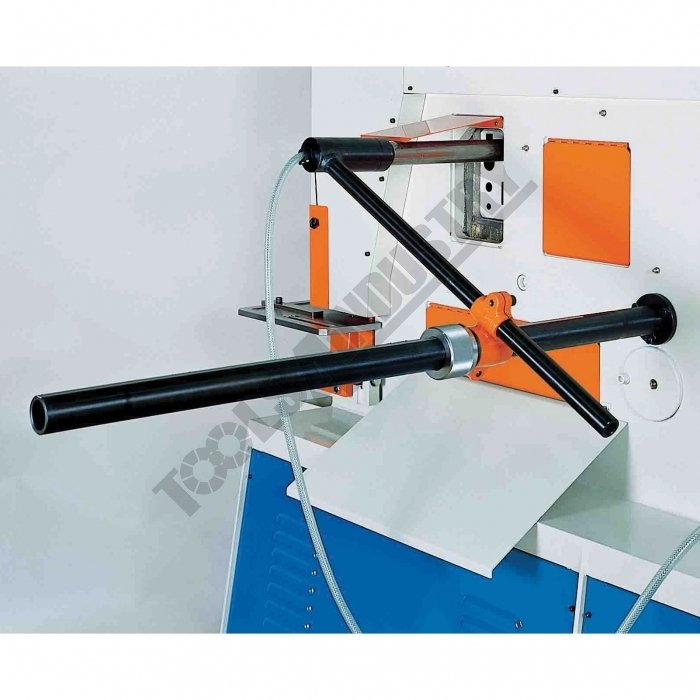

• 1 metre adjustable "Auto touch length stop" once the material has pushed the micro-switch stop the hydraulic system is activated to shear work piece

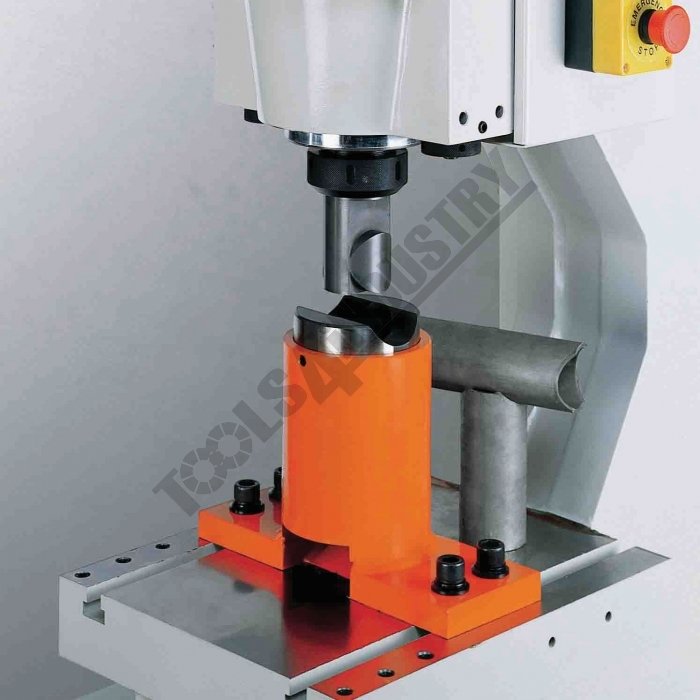

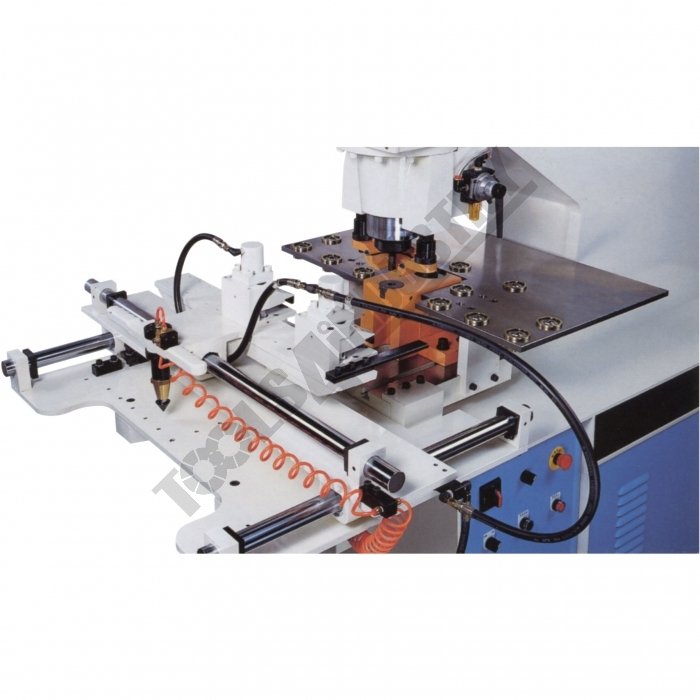

Optional Accessories

• Punch & dies are available in Round, Square, Rectangle & Oblong shapes
