| Code | P6168 |
|---|---|
| Capacity | Hi -Grade Tool Steel Imported From Japan |
| Weight (kg) | 0.5 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 0.5 |
| Dimensions (cm) | 5 x 5 x 5 |

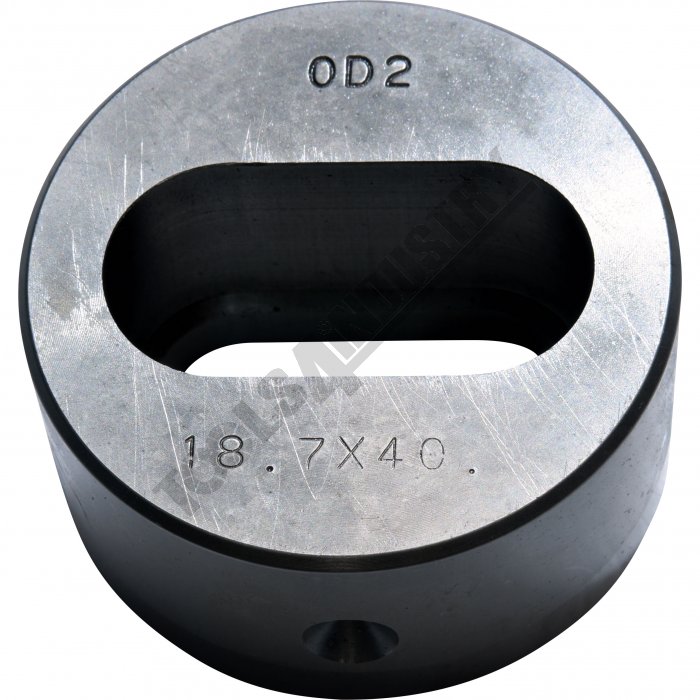

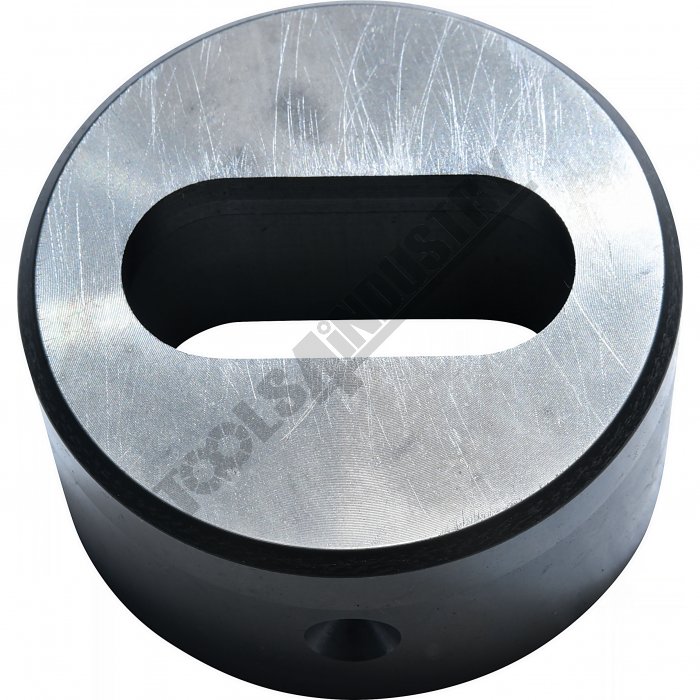

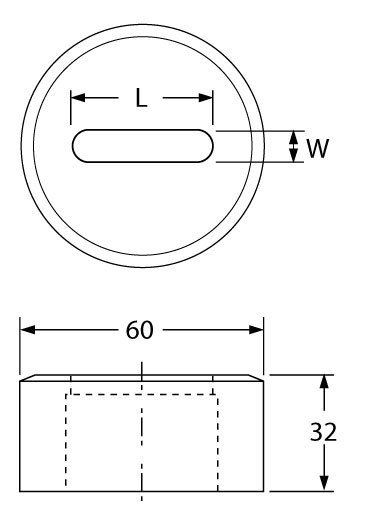

18.7 x 40.7mm Slotted Die Hi -Grade Tool Steel Imported From Japan
Description
Punch and Dies are Manufactured by Sunrise in Taiwan using Hi -Grade Tool Steel imported from Japan.The manufacturing process involves machining via hi tech CNC machines lathes & mills, vacuum heat treatment with multiple tempering at high temperatures before a final quality inspection/testing process all of which ensures an accurate, precise, durable & stable product.
Features
- PLEASE NOTE FOLLOWING RECOMMENDATIONS WHEN SELECTING DIE CLEARANCE:
- Material Thickness - 2 ~ 4mm = Die Clearance 0.2mm
- Material Thickness - 4 ~ 9.5mm = Die Clearance 0.7mm
- Material Thickness - 10 ~ 14.5mm = Die Clearance 1.2mm
- Material Thickness - 15 ~ 19.5mm = Die Clearance 1.7mm
- Material Thickness - 20 ~ 24mm = Die Clearance 2.2mm
Specifications
- Compare 57 Products
- ORDER CODE
- Shape - Type
- Square or Slot Hole Size (W x L)mm
- Punch Locating Diameter x Lengthmm
- Die Outside Body Diameter x Heightmm
- P6168
- Slotted Die - 0D2
- 18.7 x 40.7
- ~
- Ø60 x 32mm
- P6169
- Slotted Die - 0D3
- 19.2 x 41.2
- ~
- Ø80 x 40mm
- P6185
- Slotted Punch - 0P1
- 20 x 30
- Ø30 x 70mm
- ~
- P6186
- Slotted Die - 0D1
- 20.7 x 30.7
- ~
- Ø45 x 22.5mm
- P6187
- Slotted Die - 0D2
- 21.2 x 31.2
- ~
- Ø60 x 32mm
- P6205
- Slotted Punch - 0P1
- 22 x 30
- Ø30 x 70mm
- ~
- P6206
- Slotted Die - 0D1
- 22.7 x 30.7
- ~
- Ø45 x 22.5mm
- P6207
- Slotted Die - 0D2
- 23.2 x 31.2
- ~
- Ø60 x 32mm
- P6211
- Slotted Punch - 0P2
- 22 x 40
- Ø40 x 70mm
- ~
- P6212
- Slotted Die - 0D2
- 22.7 x 40.7
- ~
- Ø60 x 32mm
- P6213
- Slotted Die - 0D3
- 23.2 x 41.2
- ~
- Ø80 x 40mm
- P6001
- Square Punch - SP1
- 8 x 8
- Ø30 x 70mm
- ~
- P6002
- Square Die - SD1
- 8.7 x 8.7
- ~
- Ø45 x 22.5mm
- P6005
- Slotted Punch - 0P1
- 8 x 20
- Ø30 x 70mm
- ~
- P6006
- Slotted Die - 0D1
- 8.7 x 20.7
- ~
- Ø45 x 22.5mm
- P6011
- Slotted Punch - 0P1
- 8 x 30
- Ø30 x 70mm
- ~
- P6012
- Slotted Die - 0D1
- 8.7 x 30.7
- ~
- Ø45 x 22.5mm
- P6021
- Square Punch - SP1
- 10 x 10
- Ø30 x 70mm
- ~
- P6022
- Square Die - SD1
- 10.7 x 10.7
- ~
- Ø45 x 22.5mm
- P6025
- Slotted Punch - 0P1
- 10 x 20
- Ø30 x 70mm
- ~
- P6026
- Slotted Die - 0D1
- 10.7 x 20.7
- ~
- Ø45 x 22.5mm
- P6031
- Slotted Punch - 0P1
- 10 x 25
- Ø30 x 70mm
- ~
- P6032
- Slotted Die - 0D1
- 10.7 x 25.7
- ~
- Ø45 x 22.5mm
- P6037
- Slotted Punch - 0P1
- 10 x 30
- Ø30 x 70mm
- ~
- P6038
- Slotted Die - 0D1
- 10.7 x 30.7
- ~
- Ø45 x 22.5mm
- P6039
- Slotted Die - 0D2
- 11.2 x 31.2
- ~
- Ø60 x 32mm
- P6051
- Square Punch - SP1
- 12 x 12
- Ø30 x 70mm
- ~
- P6052
- Square Die - SD1
- 12.7 x 12.7
- ~
- Ø45 x 22.5mm
- P6056
- Slotted Die - 0D1
- 12.7 x 16.7
- ~
- Ø45 x 22.5mm
- P6061
- Slotted Punch - 0P1
- 12 x 20
- Ø30 x 70mm
- ~
- P6062
- Slotted Die - 0D1
- 12.7 x 20.7
- ~
- Ø45 x 22.5mm
- P6067
- Slotted Punch - 0P1
- 12 x 25
- Ø30 x 70mm
- ~
- P6068
- Slotted Die - 0D1
- 12.7 x 25.7
- ~
- Ø45 x 22.5mm
- P6073
- Slotted Punch - 0P1
- 12 x 30
- Ø30 x 70mm
- ~
- P6074
- Slotted Die - 0D1
- 12.7 x 30.7
- ~
- Ø45 x 22.5mm
- P6095
- Slotted Punch - 0P1
- 14 x 25
- Ø30 x 70mm
- ~
- P6096
- Slotted Die - 0D1
- 14.7 x 25.7
- ~
- Ø45 x 22.5mm
- P6097
- Slotted Die - 0D1
- 15.2 x 26.2
- ~
- Ø45 x 22.5mm
- P6101
- Slotted Punch - 0P1
- 14 x 30
- Ø30 x 70mm
- ~
- P6102
- Slotted Die - 0D1
- 14.7 x 30.7
- ~
- Ø45 x 22.5mm
- P6103
- Slotted Die - 0D2
- 15.2 x 31.2
- ~
- Ø60 x 32mm
- P6125
- Slotted Punch - 0P1
- 16 x 25
- Ø30 x 70mm
- ~
- P6126
- Slotted Die - 0D1
- 16.7 x 25.7
- ~
- Ø45 x 22.5mm
- P6127
- Slotted Die - 0D1
- 17.2 x 26.2
- ~
- Ø45 x 22.5mm
- P6131
- Slotted Punch - 0P1
- 16 x 30
- Ø30 x 70mm
- ~
- P6132
- Slotted Die - 0D1
- 16.7 x 30.7
- ~
- Ø45 x 22.5mm
- P6133
- Slotted Die - 0D2
- 17.2 x 31.2
- ~
- Ø60 x 32mm
- P6137
- Slotted Punch - 0P2
- 16 x 40
- Ø40 x 70mm
- ~
- P6138
- Slotted Die - 0D2
- 16.7 x 40.7
- ~
- Ø60 x 32mm
- P6139
- Slotted Die - 0D3
- 17.2 x 41.2
- ~
- Ø80 x 40mm
- P6155
- Slotted Punch - 0P1
- 18 x 25
- Ø30 x 70mm
- ~
- P6156
- Slotted Die - 0D1
- 18.7 x 25.7
- ~
- Ø45 x 22.5mm
- P6157
- Slotted Die - 0D1
- 19.2 x 26.2
- ~
- Ø45 x 22.5mm
- P6161
- Slotted Punch - 0P1
- 18 x 30
- Ø30 x 70mm
- ~
- P6162
- Slotted Die - 0D1
- 18.7 x 30.7
- ~
- Ø45 x 22.5mm
- P6163
- Slotted Die - 0D2
- 19.2 x 31.2
- ~
- Ø60 x 32mm
- P6167
- Slotted Punch - 0P2
- 18 x 40
- Ø40 x 70mm
- ~
| ORDER CODE | Slotted Die - 0D2 |
|---|---|
| Shape - Type | 18.7 x 40.7 |
| Square or Slot Hole Size (W x L)mm | ~ |
| Punch Locating Diameter x Lengthmm | Ø60 x 32mm |
| Die Outside Body Diameter x Heightmm |
