| Code | P183 |
|---|---|
| Model | 1623200 |
| Capacity | 250 x 4mm (10, 15, 20, 30mm Vee) |
| Weight (kg) | 29 |
| Weight (m3) | 0.019 |
| Weight (Freight) | 29 |
| Dimensions (cm) | 33.5 x 25 x 23 |
Multi-Vee Pressbrake Bending Attachment 1623200 250 x 4mm (10, 15, 20, 30mm Vee)
Description

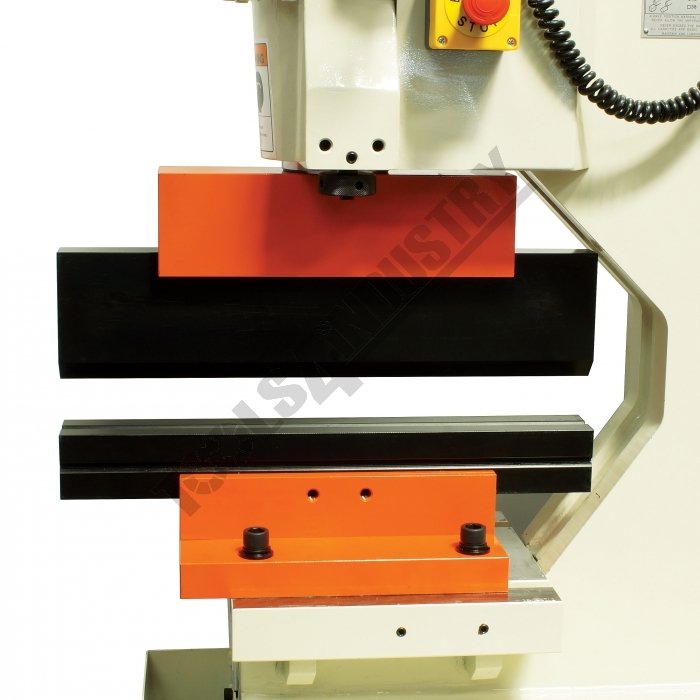

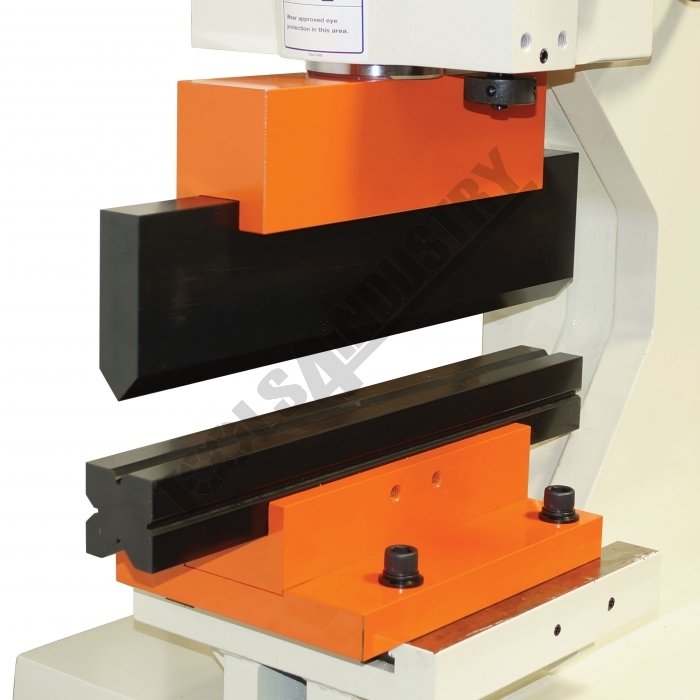

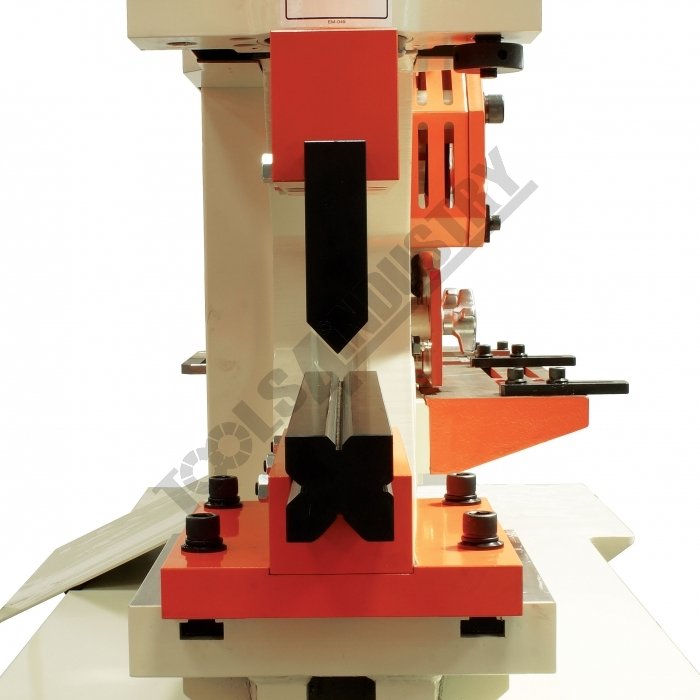

Sunrise Multi-Vee pressbrake bending attachment is a great device to bend mild steel plate with a maximum capacity of 250 x 4mm and a tensile strength of 45kg/mm squaredThis attachment can only be fitted to the hole punching station as pictured
Specifications
- Compare 8 Products
- ORDER CODE
- MODEL
- Type
- Bending Capacity - Mild Steelmm
- Die Block Vee Sizesmm
- Suits Punch & Shear Models
- P183
- 1623200
- Multi-Vee
- 250 x 4
- 10, 15, 20, 30mm
- IW-45K
- P184
- 9023890
- Single-Vee
- 160 x 6 / 160 x 8
- 55mm
- IW-45MQ, IW-60H
- P186
- 9023490
- Single-Vee
- 250 x 12
- 60mm
- IW-60S/SD, IW-80S/SD
- P189
- 9023590
- Multi-Vee
- 500 x 5
- 10, 15, 20, 30mm
- IW-60S/SD, IW-80S/SD
- P188A
- 9023491
- Single-Vee
- 250 x 15
- 60mm
- IW-100S/SD, IW-125S/SD
IW-165SD
- P188
- 9023901
- Single-Vee
- 250 x 20
- 100mm
- IW-100S/SD, IW-125S/SD
IW-165SD
- P187
- 9023690
- Multi-Vee
- 700 x 5
- 10, 15, 20, 30mm
- IW-100S/SD, IW-125S/SD
IW-165SD
- P182
- 1623100
- Single-Vee
- 160 x 8
- 40mm
- IW-45K
| ORDER CODE | 1623200 |
|---|---|
| MODEL | Multi-Vee |
| Type | 250 x 4 |
| Bending Capacity - Mild Steelmm | 10, 15, 20, 30mm |
| Die Block Vee Sizesmm | IW-45K |
| Suits Punch & Shear Models |
