| Code | M9775 |
|---|---|
| Model | DB-360R |
| Capacity | 360º Range |
| Weight (kg) | 0.5 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 0.5 |
| Dimensions (cm) | 17 x 8.2 x 5.5 |

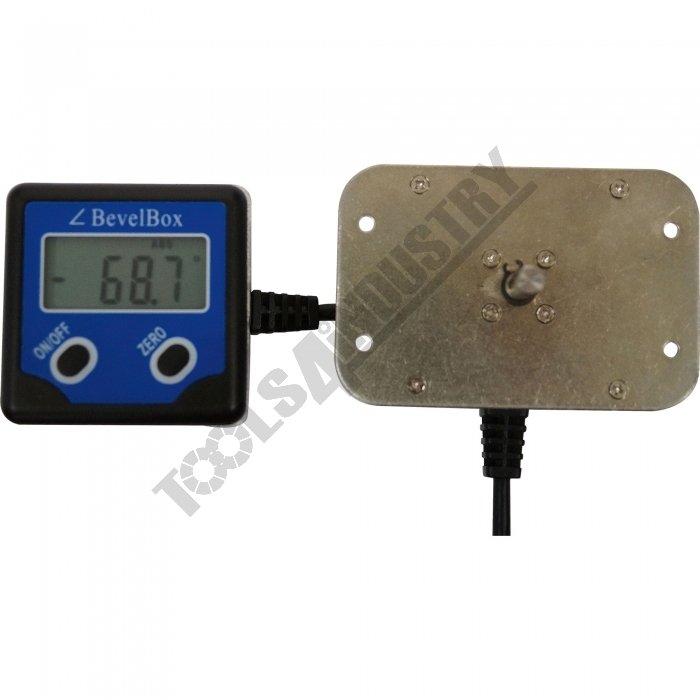

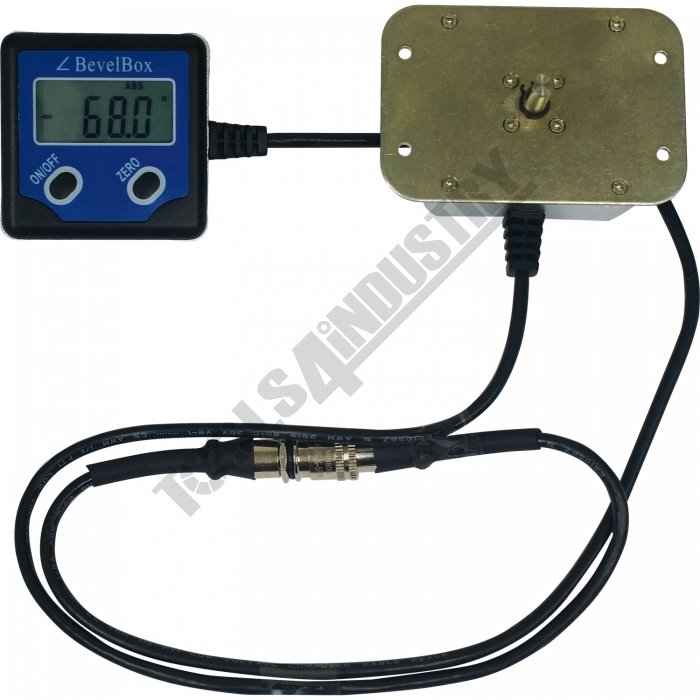

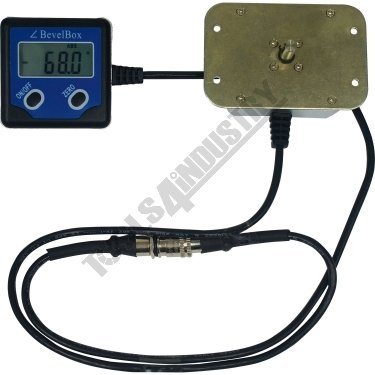

Digital Bevel Box with Rotary Encoder DB-360R 360º Range
Description
This BD-360R digital bevel box with rotary encoder predominantly used on manual panbrakes & folders where and accurate digital reading is required. The unit can measure between 0-360° with a resolution of 0.1° and will automatically shut off after 5 minutes. The digital LCD screen is easy to read and can be simply located in a convenient position as it incorporates a magnetic base.Features
- Mini digital box with encoder readings between 0-360°

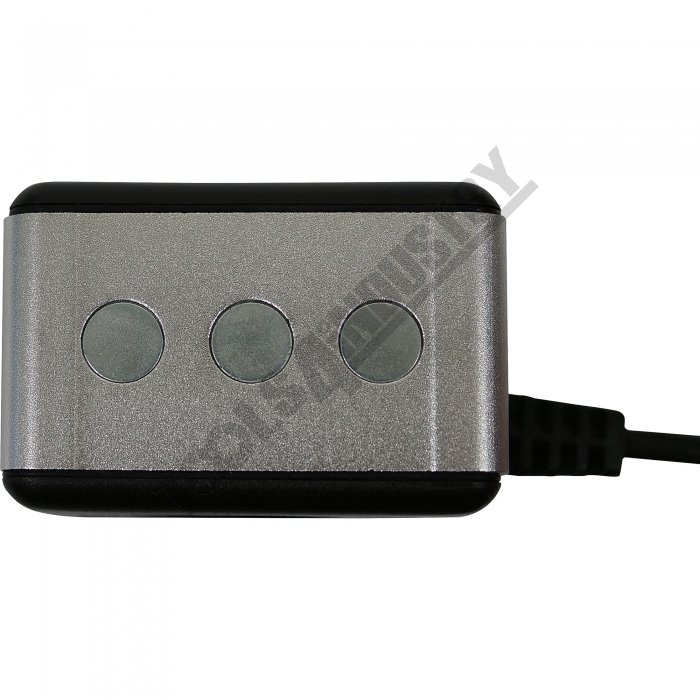

- Magnets in the base for convenient mounting
- Auto shut off after 5 minutes
- Digital readout display
- On/Off & Zero button
- 0.1 degree resolution
- 900mm cable length
- Converts between ABS & relative modes
Includes
- Includes CR2032 batteries
Specifications
- Compare 5 Products
- ORDER CODE
- Type
- Blade Lengthmm
- Rangedeg
- Graduated Scalemm
- Resolutiondeg
| ORDER CODE | Angle Gauge with Rotary Encoder |
|---|---|
| Type | ~ |
| Blade Lengthmm | 360º |
| Rangedeg | ~ |
| Graduated Scalemm | 0.1º |
| Resolutiondeg |
