| Code | M9361 |
|---|---|
| Model | 03-0524 |
| Capacity | 5 Flute |
| Weight (kg) | 0.22 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 0.22 |
| Dimensions (cm) | 16 x 15 x 2.5 |

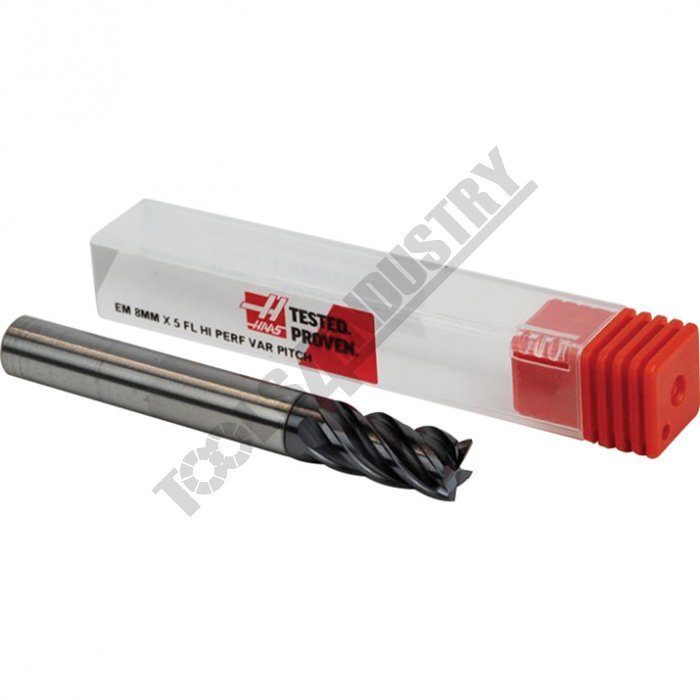

Ø8mm Carbide End Mill 03-0524 5 Flute
Features
- 8mm Ø Carbide End Mill
- 8mm Shank x 16mm LOC
- 0.2mm Chamfer
- 5 Flute
- AlTiN Coated
- Variable Pitch
Specifications
- Compare 13 Products
- ORDER CODE
- Type
- Flute
- Unit of measurement
- Effective Cutting Diameter (D1)
- Shank (D)
- 1st Maximum Cutting Depth (Ap1max)
- Overall Length (L)
- Corner Chamfer Width (BCH)
- M9361
- End Mill
- Metric
- Ø8mm
- Ø8mm
- ~
- 16mm
- M9363
- End Mill
- Metric
- Ø12mm
- Ø12mm
- ~
- 26mm
- M9364
- End Mill
- Metric
- Ø16mm
- Ø16mm
- ~
- 32mm
- M9371
- End Mill
- Metric
- Ø4mm
- Ø4mm
- ~
- 12mm
- M93734
- End Mill
- Metric
- Ø8mm
- Ø8mm
- ~
- 16mm
- M93736
- End Mill
- Metric
- Ø12mm
- Ø12mm
- ~
- 26mm
- M9340
- End Mill
- Metric
- mm
- Ø4mm
- Ø6mm
- 12mm
- ~
- M9340
- End Mill
- Metric
- mm
- Ø5mm
- Ø6mm
- 13mm
- ~
- M9340
- End Mill
- Metric
- mm
- Ø6mm
- Ø6mm
- 13mm
- ~
- M9340
- End Mill
- Metric
- mm
- Ø8mm
- Ø8mm
- 16mm
- ~
- M9340
- End Mill
- Metric
- mm
- Ø12mm
- Ø12mm
- 26mm
- ~
- M9340
- End Mill
- Metric
- mm
- Ø16mm
- Ø16mm
- 32mm
- ~
- M9377
- End Mill
- Metric
- Ø16mm
- Ø16mm
- ~
- 32mm
| ORDER CODE | End Mill |
|---|---|
| Type | Metric |
| Flute | |
| Unit of measurement | Ø8mm |
| Effective Cutting Diameter (D1) | Ø8mm |
| Shank (D) | ~ |
| 1st Maximum Cutting Depth (Ap1max) | 16mm |
| Overall Length (L) | |
| Corner Chamfer Width (BCH) |
