| Code | L070S |
|---|---|
| Capacity | 9.5 x 22mm |
| Weight (kg) | 0.36 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 0.36 |
| Dimensions (cm) | 15.8 x 5 x 2.4 |

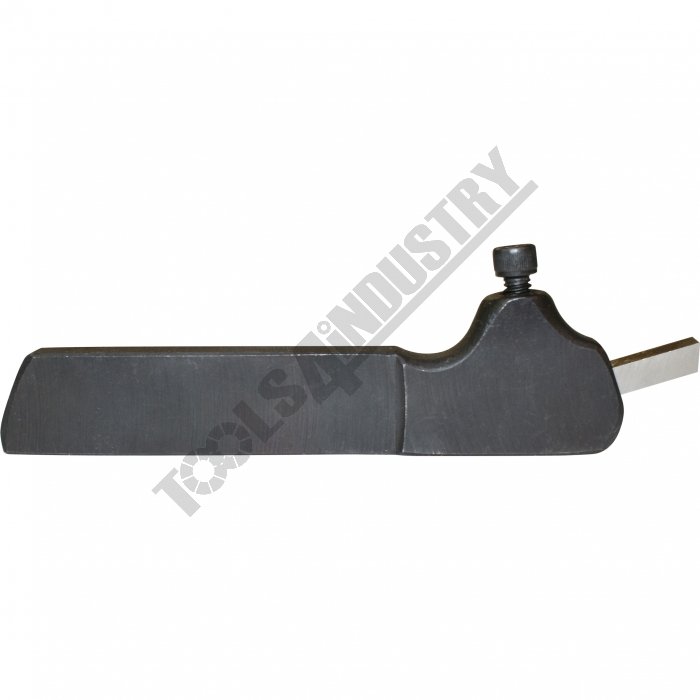

Straight Lathe Turning Tool Holder - American Style 9.5 x 22mm
Description
Straight Hand TURNING TOOL HOLDERFor HSS Tool Bits
American Style - 1/4" Tool Bit
NOTE: HSS Tool bits not supplied
Uses Tool Bit L0003
Features
- Manufactured from high grade steel
- Case-hardened and ground
- Supplied with wrench, but without tool bit
- Available in straight (S), right (R) and left (L) hand shanks

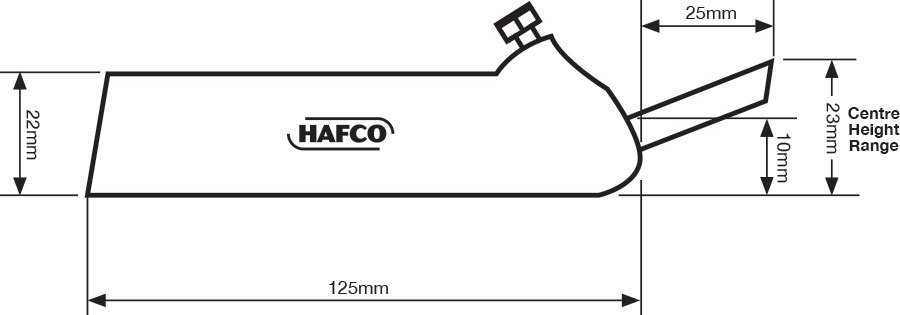

Specifications
- Compare 3 Products
- ORDER CODE
- Hand Type
- Style
- Centre Height Min. - Max.mm
- Shank Size (W x H)inch / mm
- Overall Lengthinch / mm
- Tool Bit Capacity inch / mm
- Nett Weightkg
| ORDER CODE | Straight |
|---|---|
| Hand Type | American |
| Style | 10 - 23 |
| Centre Height Min. - Max.mm | - / 9.5 x 22 |
| Shank Size (W x H)inch / mm | - / 127 |
| Overall Lengthinch / mm | 1/4" / 6.3 |
| Tool Bit Capacity inch / mm | 0.36 |
| Nett Weightkg |
